2. The Conceptronic 4-port PS/2-KVM Switch explained

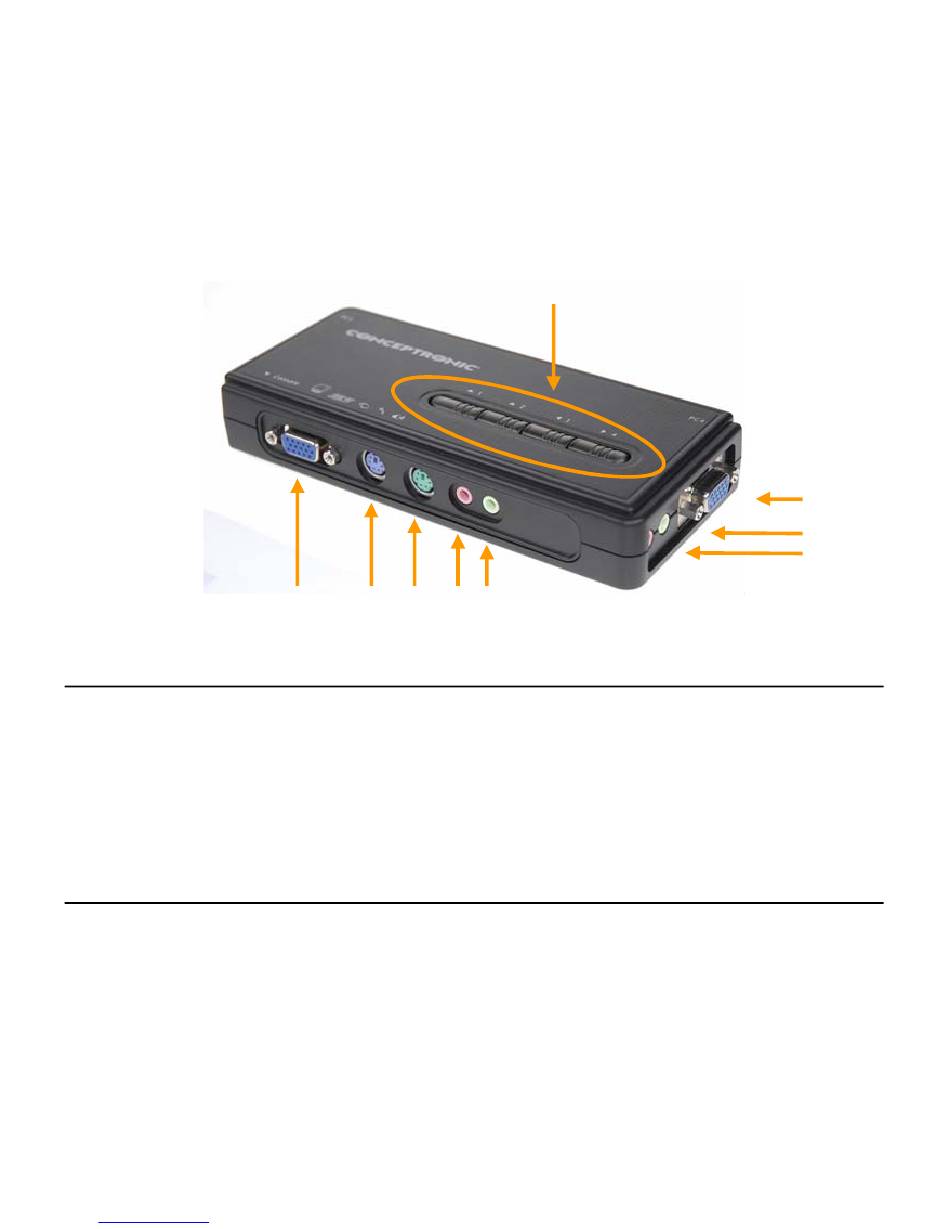

2.1 Device Explanation Front Side
Nr Description
1. Monitor (VGA) connection
2. PS/2 keyboard connection
3. PS/2 mouse connection
4. Microphone (MIC) input connection
5. Speaker (SPK) output connection
6. Microphone (MIC) output to PC-4 Microphone (MIC) connection
7. Speaker (SPK) to PC-4 line out connection
8. Monitor (VGA) to PC-4 Monitor connection
9. PC selection switches (PC 1 ~ 4)
