ECtemp Next Plus HW
3 Wiring

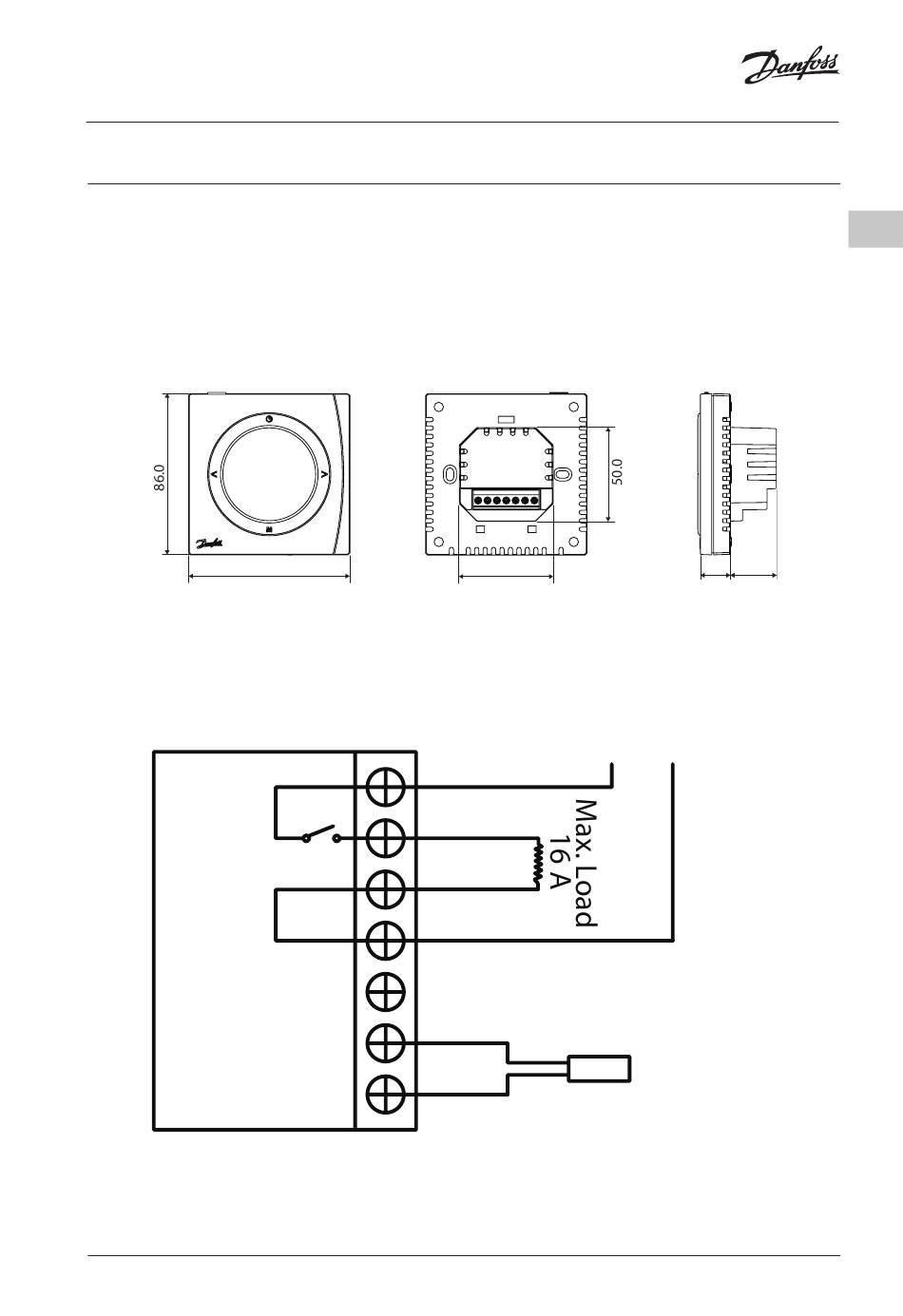

• Dimensions, see fig. 4
• Wiring diagram, see fig. 5 (S1, S2: floor sensor terminals).
• Complete the wiring, see fig 5.
© Danfoss | Produced by FEC | 2020.10
86.0
L
L(Load )
N(Load )
N
S1
S2
50.0
Fig. 4
85-250 Vac, 50/60 Hz
Fig. 5
13.0 24.5
L N
AN347136888492-010101 | 7
EN
