Valeo Thermo AC Einbau- Und Betriebsanweisung Seite 51

Thermo AC 2nd generation

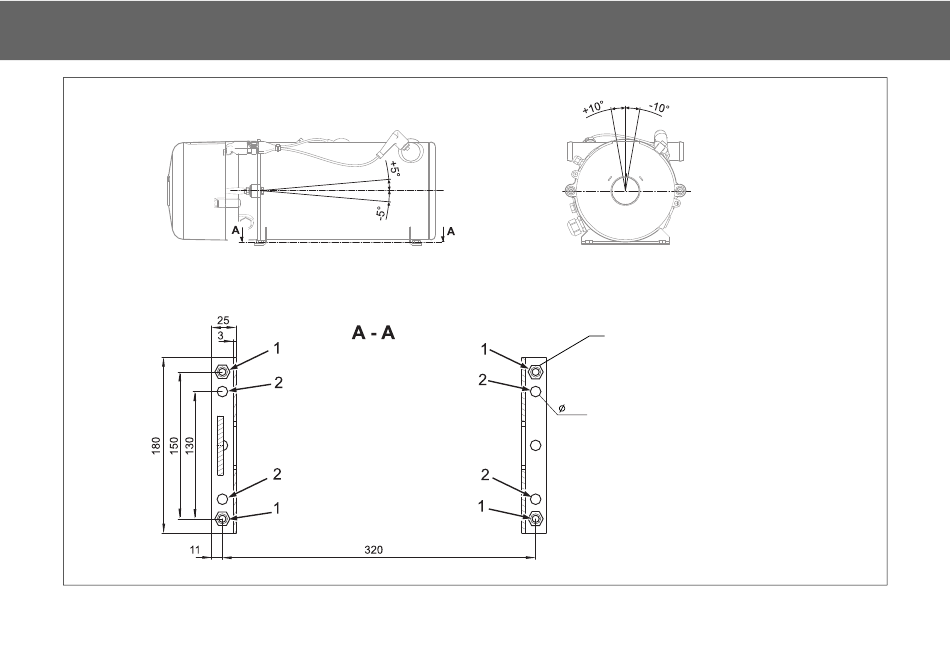

Figure 12: Installation position and hole pattern Thermo AC
Installation of the heater - fitting of important assemblies
Welded nut M8 - DIN 929
10.8
1 Attachment variant 1
4x screw M8 (15Nm +5Nm)
2 Attachment variant 2
4x screw M8 (through going) +
4x hexagonal nut M8 (15Nm +5Nm) +
4x Washer 8.4
