1
Quick Setup Guide

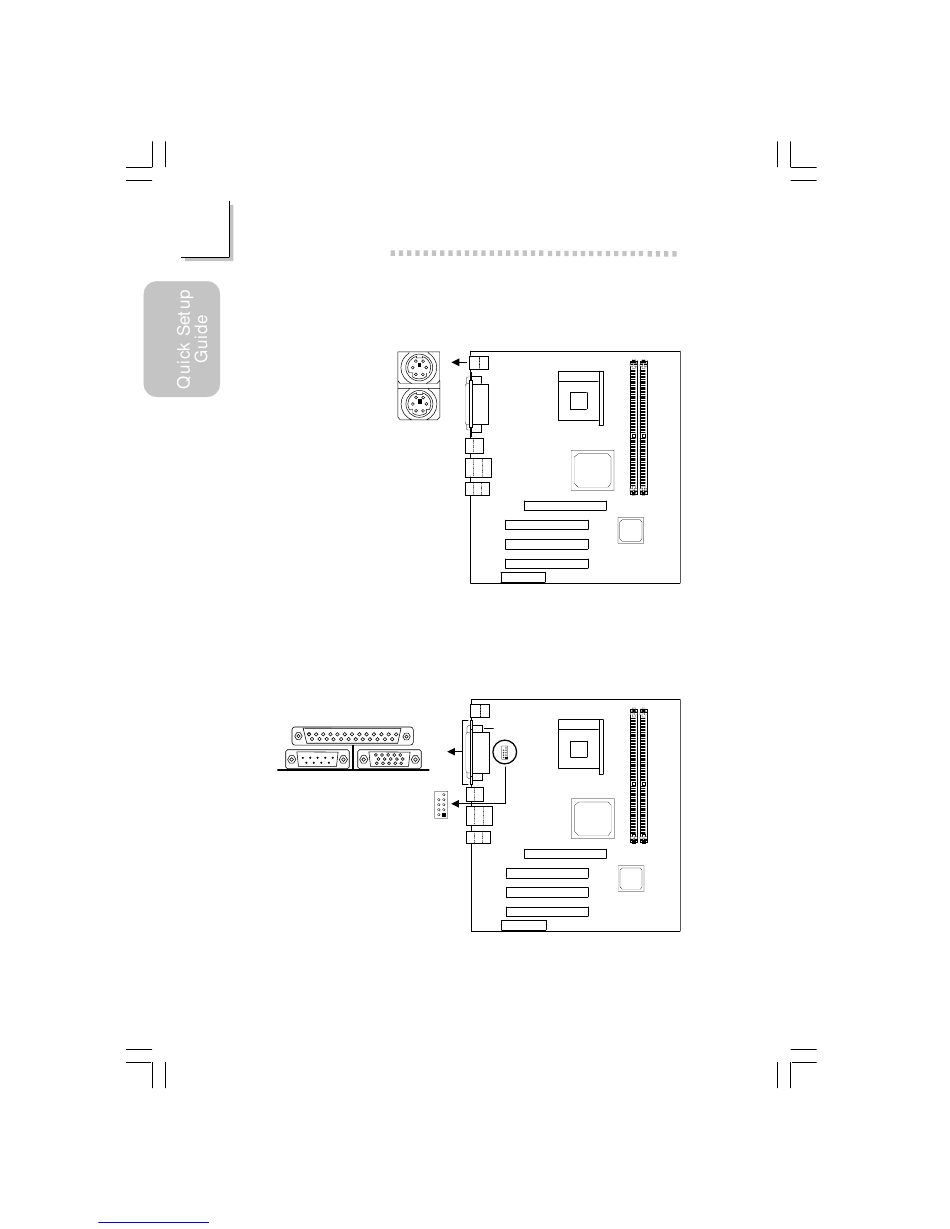

1.3 Ports and Connectors

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports
J2
PS/2 Mouse
PS/2 Keyboard
The Wake-On-PS/2 Keyboard/
Mouse function, when enabled,
allows a PS/2 keyboard or
PS/2 mouse to wake up a
system from the S3/S4/S5 state.
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or
keyboard. Failure to do so may
damage the system board.
1.3.2 Serial Port
J4
10 9
2 1
COM 1
9
Serial Port
2 1
COM 2 (J6)
10
