4. Description of the Monitor and the Controls

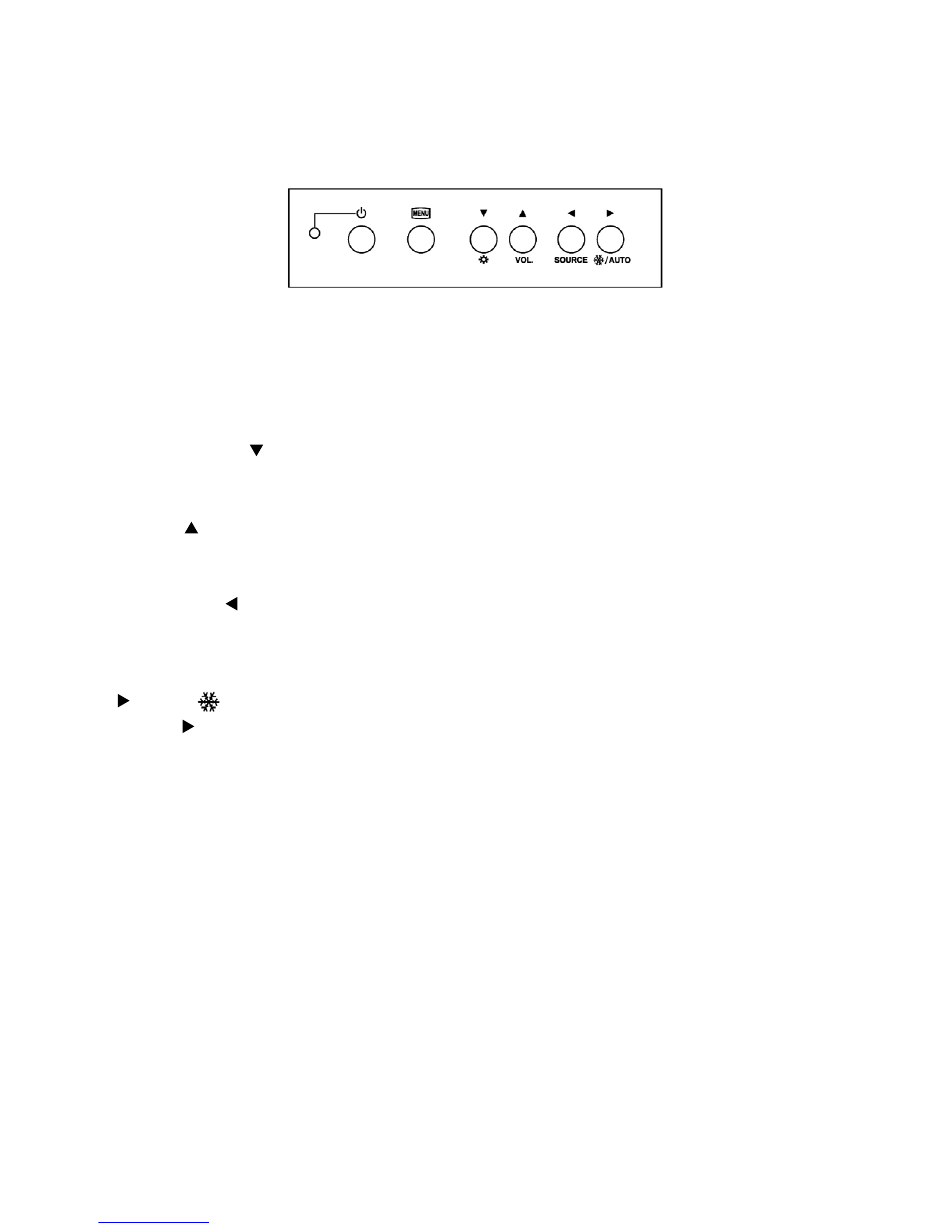

Front side
1. Menu / Exit
This button is used to bring up or disappear the controls menu.
Exits from the OSD system and the selected function.
2. Down / Brightness ( )
Moves down the menu lists in the OSD / Selected brightness.
3. UP / VOL ( )
Moves up the menu lists in the OSD / Selected Volume.
4. LEFT / SOURCE ( )
Selected MENU decreases the value / while in the normal active (Not MENU DISPLAY) mode, this button is used to bring
up Sources select Menu (CVBS, S-VIDEO, RGB, DVR).
5. (Select) / (Freeze) / AUTO
Press the button to select the highlighted menu selection.
When in the CVBS or S-VIDEO mode pressing this button will freeze the displayed image, pressing it again will return
the image to the live state.
While in the RGB mode, press the AUTO button to automatically adjust the H/V POS, H/V SIZE and phase.
6. LED
The LED illuminates „green" when the power is ON and there is an input signal.
(When there is power to the monitor but no Input signal the LED will flash „green".)
The LED will show „red" when the power is connected but switched OFF on the monitor.
7. Power ON/OFF
When power is applied to the monitor it will come ON.
The power button will toggle between ON and OFF.
