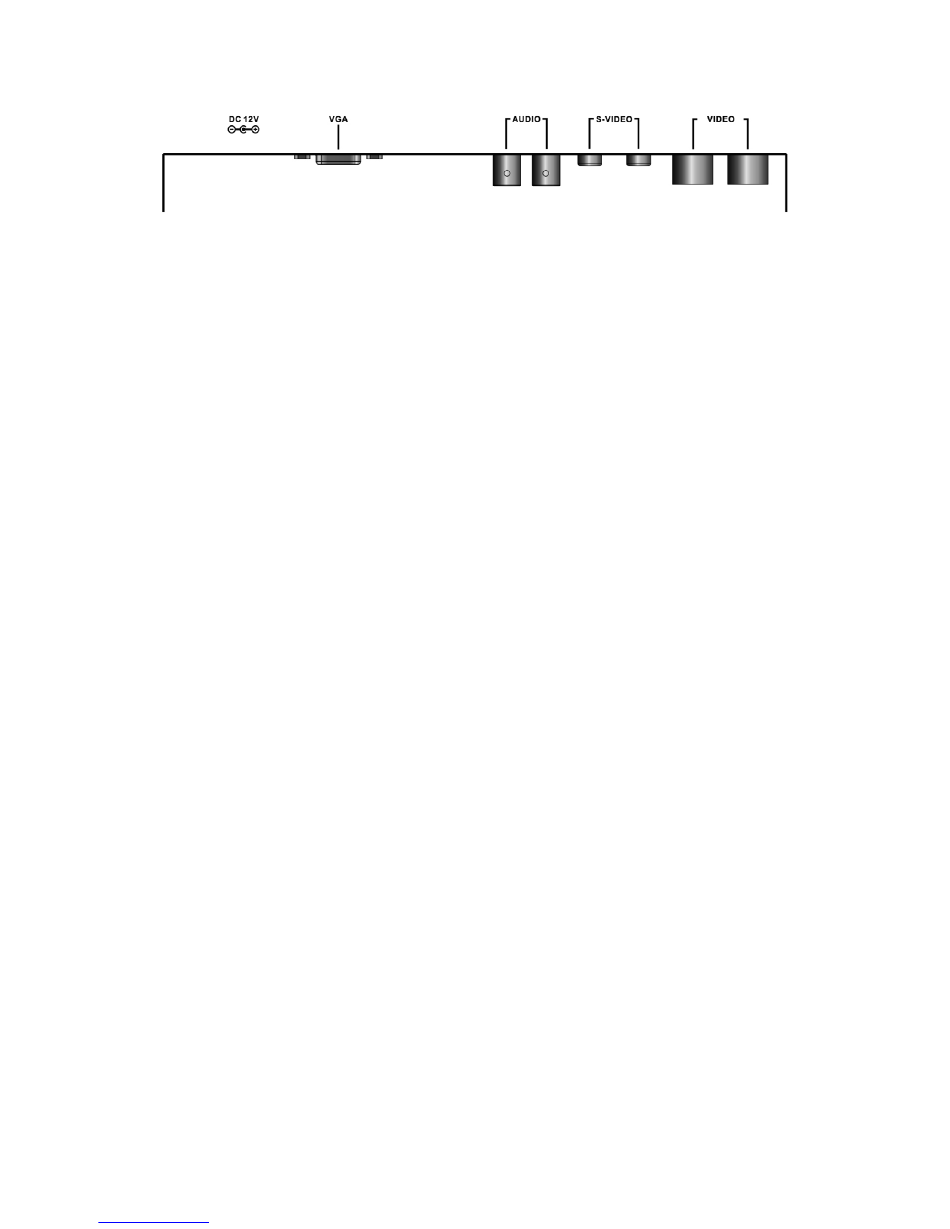

Rear side
1. DC JACK
Place the plug from the supplied table-top power supply into the VDC connector.
Input at the monitor is VDC from the TT universal AC supply (00-40VAC, see specifications table for AC/DC details).
2. VGA INPUT
Connect to the video output port on your PC or DVR.
3. AUDIO INPUT
Used to connect a Audio signal from DVR.
4. S-Video INPUT
Used to connect a S-Video signal from a camera or DVR.
5. CVBS INPUT
Used to connect a BNC Video signal from a camera or DVR.
