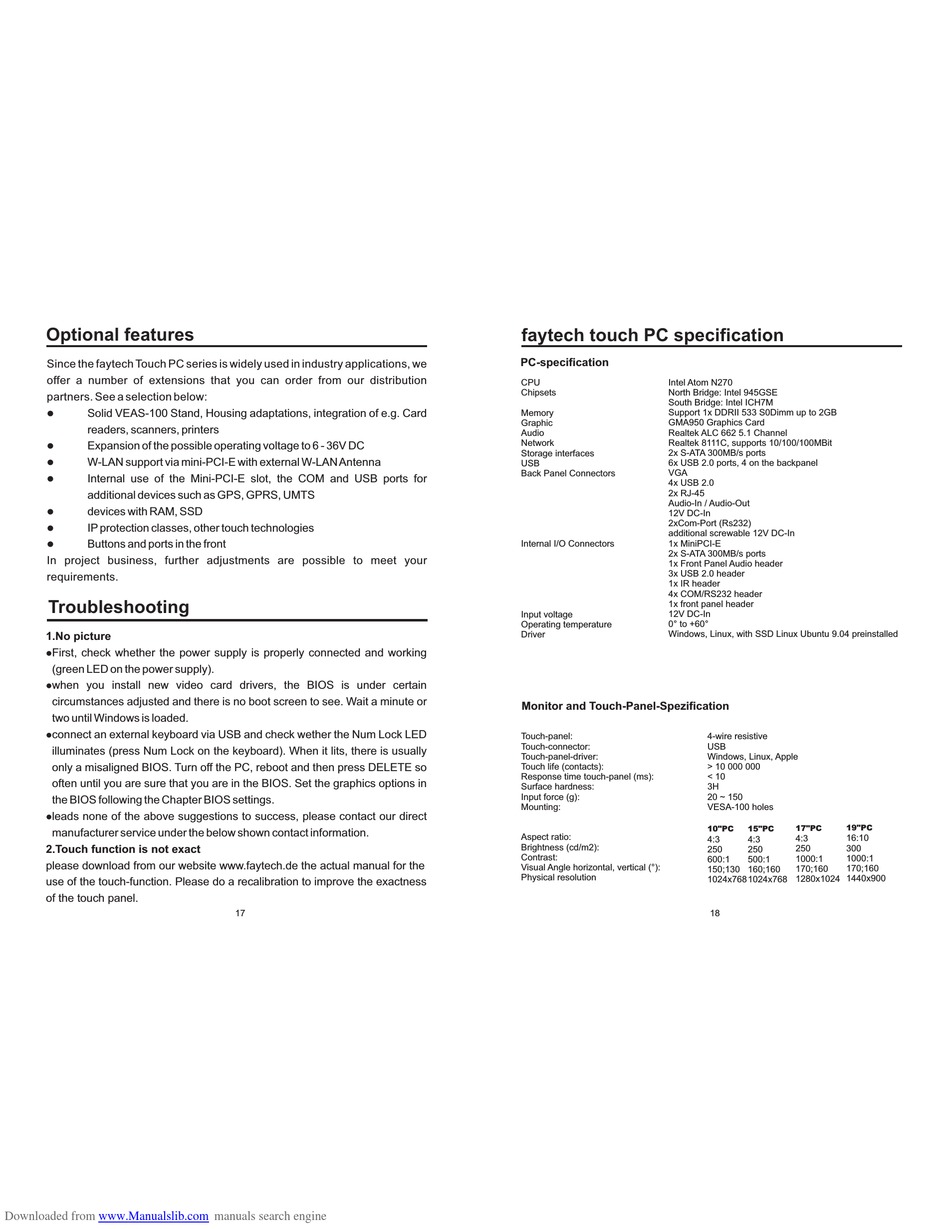

Optional features
Since the faytech Touch PC series is widely used in industry applications, we
offer a number of extensions that you can order from our distribution
partners. See a selection below:
Solid VEAS-100 Stand, Housing adaptations, integration of e.g. Card
l
readers, scanners, printers
Expansion of the possible operating voltage to 6 - 36V DC
l
W-LAN support via mini-PCI-E with external W-LAN Antenna
l
Internal use of the Mini-PCI-E slot, the COM and USB ports for
l
additional devices such as GPS, GPRS, UMTS
devices with RAM, SSD
l
IP protection classes, other touch technologies
l
Buttons and ports in the front
l
In project business, further adjustments are possible to meet your
requirements.

Troubleshooting

1.No picture
First, check whether the power supply is properly connected and working
l
(green LED on the power supply).
when you install new video card drivers, the BIOS is under certain
l
circumstances adjusted and there is no boot screen to see. Wait a minute or
two until Windows is loaded.
connect an external keyboard via USB and check wether the Num Lock LED
l
illuminates (press Num Lock on the keyboard). When it lits, there is usually
only a misaligned BIOS. Turn off the PC, reboot and then press DELETE so
often until you are sure that you are in the BIOS. Set the graphics options in
the BIOS following the Chapter BIOS settings.
leads none of the above suggestions to success, please contact our direct
l
manufacturer service under the below shown contact information.
2.Touch function is not exact
please download from our website www.faytech.de the actual manual for the
use of the touch-function. Please do a recalibration to improve the exactness
of the touch panel.
Downloaded from www.Manualslib.com
17
manuals search engine
faytech touch PC specification
PC-specification
CPU Intel Atom N270
Chipsets North Bridge: Intel 945GSE
South Bridge: Intel ICH7M
Memory Support 1x DDRII 533 S0Dimm up to 2GB
Graphic GMA950 Graphics Card
Audio Realtek ALC 662 5.1 Channel
Network Realtek 8111C, supports 10/100/100MBit
2x S-ATA 300MB/s ports
Storage interfaces
6x USB 2.0 ports, 4 on the backpanel
USB
VGA
Back Panel Connectors
4x USB 2.0
2x RJ-45
Audio-In / Audio-Out
12V DC-In
2xCom-Port (Rs232)
additional screwable 12V DC-In
Internal I/O Connectors 1x MiniPCI-E
2x S-ATA 300MB/s ports
1x Front Panel Audio header
3x USB 2.0 header
1x IR header
4x COM/RS232 header
1x front panel header
12V DC-In
Input voltage
0° to +60°
Operating temperature
Driver Windows, Linux, with SSD Linux Ubuntu 9.04 preinstalled
Monitor and Touch-Panel-Spezification
Touch-panel:
Touch-connector:
Touch-panel-driver:
Touch life (contacts):
Response time touch-panel (ms):
Surface hardness:
Input force (g):
Mounting:
Aspect ratio:
Brightness (cd/m2):
Contrast:
Visual Angle horizontal, vertical (°):
Physical resolution
4-wire resistive
USB
Windows, Linux, Apple
> 10 000 000
< 10
3H
20 ~ 150
VESA-100 holes
17"PC 19"PC
10"PC 15"PC
4:3 16:10
4:3 4:3
250 300
250 250
1000:1 1000:1
600:1 500:1
170;160 170;160
150;130 160;160
1280x1024 1440x900
1024x768 1024x768
