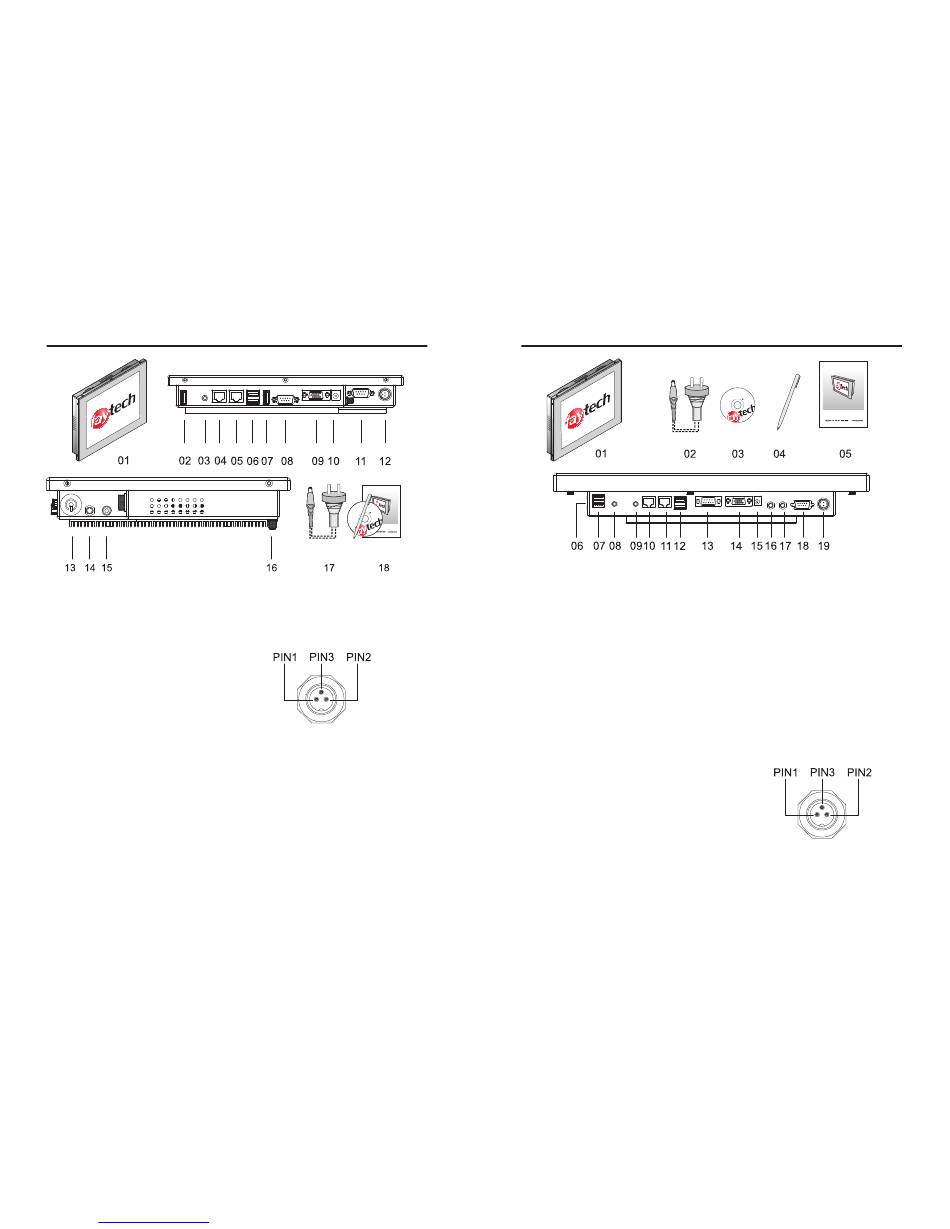

Components of 10" Touch PC :
01 T ouch-PC with VESA-100
02 USB2.0
03 Ear-Out
04 10/100/1000MBit network interface
05 10/100/1000MBit network interface
06 2xUSB2.0
07 USB2.0
08 COM1
09 VGA-Out
10 12V DC-IN
11 COM2
12 additional screwable
PIN 3: free
13 Power on/off
14 W-Lan connector
15 Mic-In
16 W-Lan connector
17 220V power supply
18 Touch pen, manual and installation CD of Windows or Linux
.
Downloaded from www.Manualslib.com
Touch Driver Installation Disk
C
12V DC-IN; PIN1: +12V DC PIN 2: GND
13
manuals search engine
Components of 15" 17"19" touch PC :
Ltd.2009
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
Touch Driver Installation Disk
Touch-PC with VESA 100
220V power supply
CD for installation of Windows or Linux
Touch pen
Manual
Power on/off
2x USB2.0
Mic-In
Ear-Out
10/100/1000MBit n etwork interface
10/100/1000MBit n etwork interface
2x USB2.0
COM1
VGA-Out
12V DC-IN
W-Lan connector
W-Lan connector
COM2
additional screwable 12V DC-IN; PIN1:
+12V DC PIN 2: GND PIN 3: free
14
C Ltd.2009
