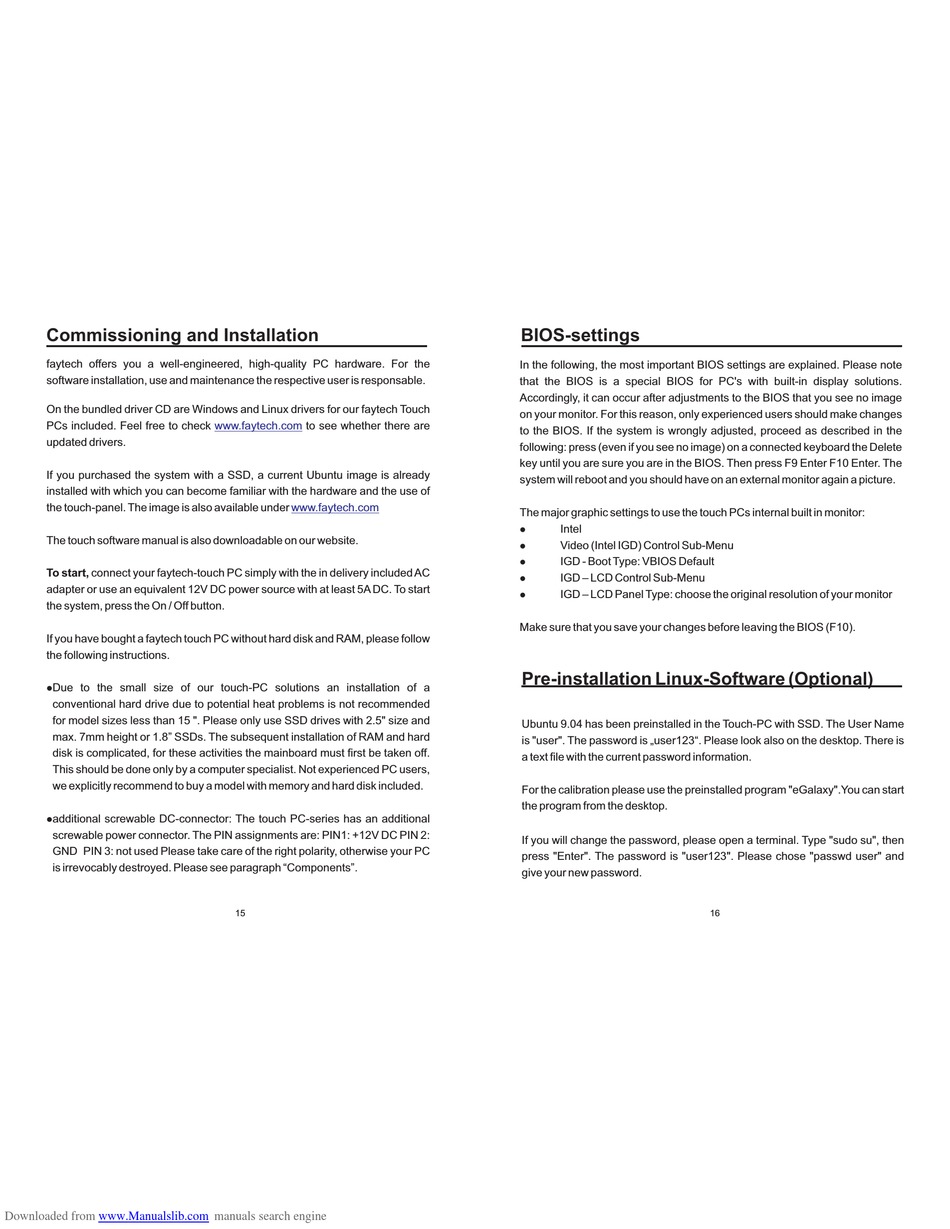

Commissioning and Installation

faytech offers you a well-engineered, high-quality PC hardware. For the
software installation, use and maintenance the respective user is responsable.
On the bundled driver CD are Windows and Linux drivers for our faytech Touch
PCs included. Feel free to check
updated drivers.
If you purchased the system with a SSD, a current Ubuntu image is already
installed with which you can become familiar with the hardware and the use of
the touch-panel. The image is also available under
The touch software manual is also downloadable on our website.
To start, connect your faytech-touch PC simply with the in delivery included AC
adapter or use an equivalent 12V DC power source with at least 5A DC. To start
the system, press the On / Off button.
If you have bought a faytech touch PC without hard disk and RAM, please follow
the following instructions.
Due to the small size of our touch-PC solutions an installation of a
l
conventional hard drive due to potential heat problems is not recommended
for model sizes less than 15 ". Please only use SSD drives with 2.5" size and
max. 7mm height or 1.8" SSDs. The subsequent
disk is complicated, for these activities the mainboard must first be taken off.
This should be done only by a computer specialist. Not experienced PC users,
we explicitly recommend to buy a model with memory and hard disk included.
additional screwable DC-connector: The touch PC-series has an additional
l
screwable power connector. The PIN assignments are: PIN1: +12V DC PIN 2:
GND PIN 3: not used Please take care of the right polarity, otherwise your PC
is irrevocably destroyed. Please see paragraph "Components".
Downloaded from www.Manualslib.com
www.faytech.com to see whether there are
www.faytech.com
installation of RAM and hard
15
manuals search engine

BIOS-settings

In the following, the most important BIOS settings are explained. Please note
that the BIOS is a special BIOS for PC's with built-in display solutions.
Accordingly, it can occur after adjustments to the BIOS that you see no image
on your monitor. For this reason, only experienced users should make changes
to the BIOS. If the system is wrongly adjusted, proceed as described in the
following: press (even if you see no image) on a connected keyboard the Delete
key until you are sure you are in the BIOS. Then press F9 Enter F10 Enter. The
system will reboot and you should have on an external monitor again a picture.
The major graphic settings to use the touch PCs internal built in monitor:
Intel
l
Video (Intel IGD) Control Sub-Menu
l
IGD - Boot Type: VBIOS Default
l
IGD – LCD Control Sub-Menu
l
IGD – LCD Panel Type: choose the original resolution of your monitor
l
Make sure that you save your changes before leaving the BIOS (F10).
Pre-installation Linux-Software (Optional)
Ubuntu 9.04 has been preinstalled in the Touch-PC with SSD. The User Name
is "user". The password is „user123". Please look also on the desktop. There is
a text file with the current password information.
For the calibration please use the preinstalled program "eGalaxy".You can start
the program from the desktop.
If you will change the password, please open a terminal. Type "sudo su", then
press "Enter". The password is "user123". Please chose "passwd user" and
give your new password.
