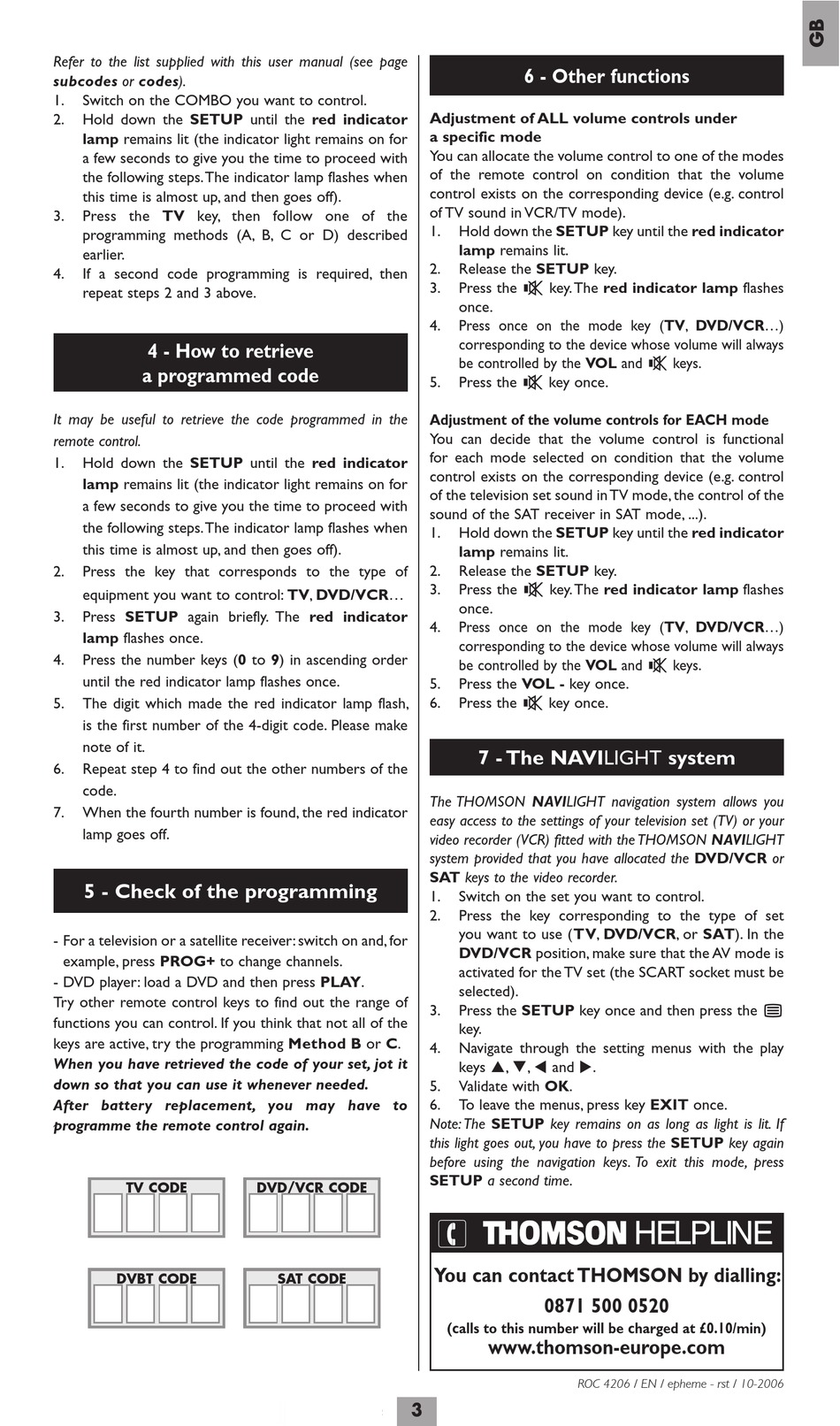

THOMSON ROC4206 Bedienungsanleitung Seite 7

Refer to the list supplied with this user manual (see page
subcodes or codes).
�. Switch on the COMBO you want to control.
�. Hold down the SETUP until the red indicator
lamp remains lit (the indicator light remains on for
a few seconds to give you the time to proceed with
the following steps.The indicator lamp flashes when
this time is almost up, and then goes off).
�. Press the TV key, then follow one of the
programming methods (A, B, C or D) described
earlier.
�. If a second code programming is required, then
repeat steps � and � above.
4 - How to retrieve
a programmed code
It may be useful to retrieve the code programmed in the
remote control.
�. Hold down the SETUP until the red indicator
lamp remains lit (the indicator light remains on for
a few seconds to give you the time to proceed with
the following steps.The indicator lamp flashes when
this time is almost up, and then goes off).
�. Press the key that corresponds to the type of
equipment you want to control: TV, DVD/VCR...
�. Press SETUP again briefly. The red indicator
lamp flashes once.
�. Press the number keys (0 to 9) in ascending order
until the red indicator lamp flashes once.
�. The digit which made the red indicator lamp flash,
is the first number of the ��digit code. Please make
note of it.
�. Repeat step � to find out the other numbers of the
code.
�. When the fourth number is found, the red indicator
lamp goes off.
5 - Check of the programming
� For a television or a satellite receiver: switch on and, for
example, press PROG+ to change channels.
� DVD player: load a DVD and then press PLAY.
Try other remote control keys to find out the range of
functions you can control. If you think that not all of the
keys are active, try the programming Method B or C.
When you have retrieved the code of your set, jot it
down so that you can use it whenever needed.
After battery replacement, you may have to
programme the remote control again.
TV CODE
DVBT CODE
DVD/VCR CODE
SAT CODE
3
6 - Other functions
Adjustment of ALL volume controls under
a specific mode
You can allocate the volume control to one of the modes
of the remote control on condition that the volume
control exists on the corresponding device (e.g. control
of TV sound in VCR�TV mode).
�. Hold down the SETUP key until the red indicator
lamp remains lit.
�. Release the SETUP key.
�. Press the c key.The red indicator lamp flashes
once.
�. Press once on the mode key (TV, DVD/VCR...)
corresponding to the device whose volume will always
be controlled by the VOL and c keys.
�. Press the c key once.
Adjustment of the volume controls for EACH mode
You can decide that the volume control is functional
for each mode selected on condition that the volume
control exists on the corresponding device (e.g. control
of the television set sound in TV mode, the control of the
sound of the SAT receiver in SAT mode, ...).
�. Hold down the SETUP key until the red indicator
lamp remains lit.
�. Release the SETUP key.
�. Press the c key.The red indicator lamp flashes
once.
�. Press once on the mode key (TV, DVD/VCR...)
corresponding to the device whose volume will always
be controlled by the VOL and c keys.
�. Press the VOL - key once.
�. Press the c key once.
7 - The NAVILIGHT system
The THOMSON NAVILIGHT navigation system allows you
easy access to the settings of your television set (TV) or your
video recorder (VCR) fitted with the THOMSON NAVILIGHT
system provided that you have allocated the DVD/VCR or
SAT keys to the video recorder.
�. Switch on the set you want to control.
�. Press the key corresponding to the type of set
you want to use (TV, DVD/VCR, or SAT). In the
DVD/VCR position, make sure that the AV mode is
activated for the TV set (the SCART socket must be
selected).
�. Press the SETUP key once and then press the a
key.
�. Navigate through the setting menus with the play
keys p, q, t and u.
�. Validate with OK.
�. To leave the menus, press key EXIT once.
Note: The SETUP key remains on as long as light is lit. If
this light goes out, you have to press the SETUP key again
before using the navigation keys. To exit this mode, press
SETUP a second time.
You can contact THOMSON by dialling:
0871 500 0520
(calls to this number will be charged at £0.10/min)
www.thomson-europe.com
ROC 4206 / EN / epheme - rst / 10-2006
