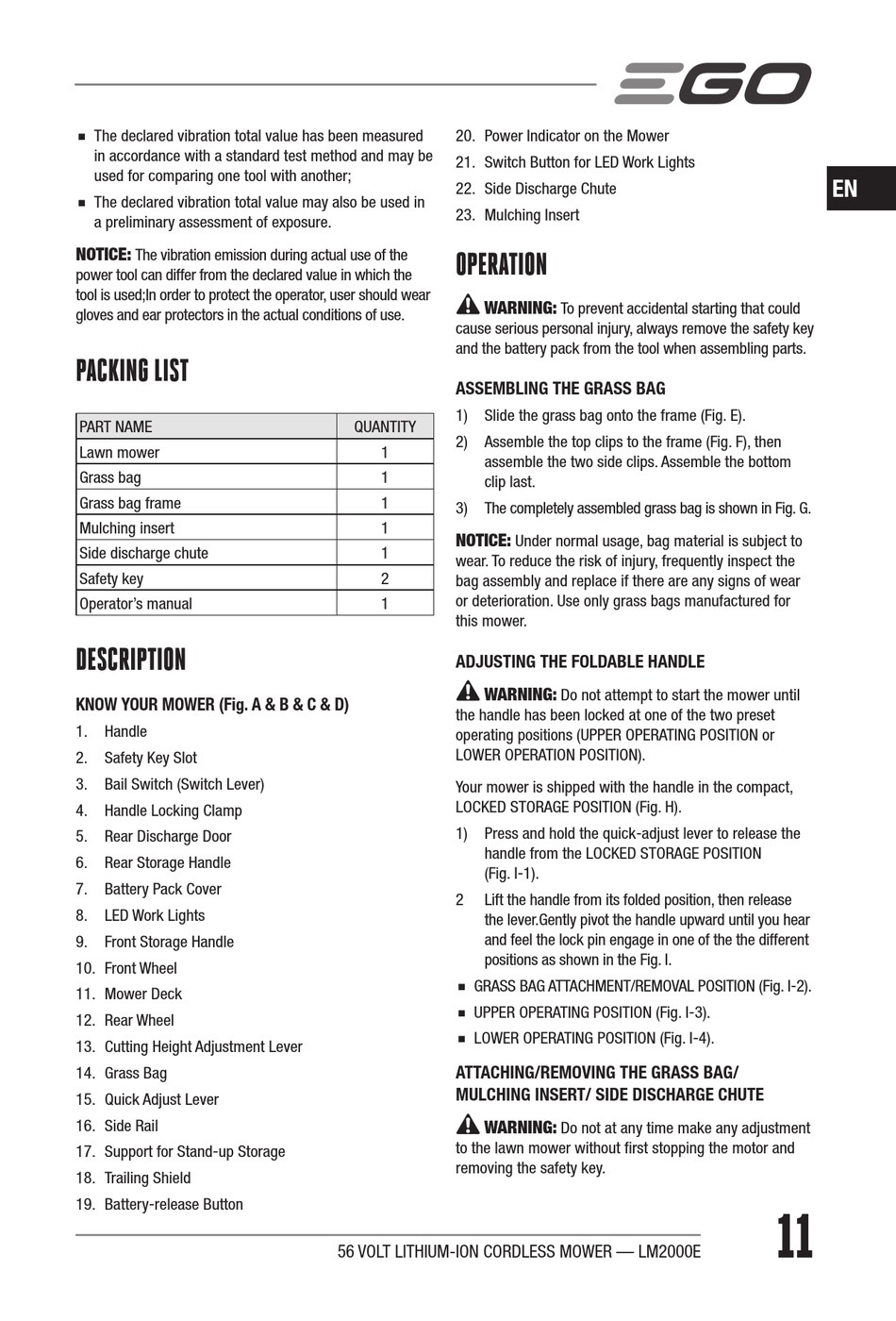

The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another;
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE:
The vibration emission during actual use of the
power tool can differ from the declared value in which the
tool is used;In order to protect the operator, user should wear
gloves and ear protectors in the actual conditions of use.

PACKING LIST

PART NAME
Lawn mower
Grass bag
Grass bag frame
Mulching insert
Side discharge chute
Safety key
Operator's manual
DESCRIPTION
KNOW YOUR MOWER (Fig. A & B & C & D)
1. Handle
2. Safety Key Slot
3. Bail Switch (Switch Lever)
4. Handle Locking Clamp
5. Rear Discharge Door
6. Rear Storage Handle
7. Battery Pack Cover
8. LED Work Lights
9. Front Storage Handle
10. Front Wheel
11. Mower Deck
12. Rear Wheel
13. Cutting Height Adjustment Lever
14. Grass Bag
15. Quick Adjust Lever
16. Side Rail
17. Support for Stand-up Storage
18. Trailing Shield
19. Battery-release Button
20. Power Indicator on the Mower
21. Switch Button for LED Work Lights
22. Side Discharge Chute
23. Mulching Insert
OPERATION
WARNING:
cause serious personal injury, always remove the safety key
and the battery pack from the tool when assembling parts.
ASSEMBLING THE GRASS BAG
1) Slide the grass bag onto the frame (Fig. E).
QUANTITY
2) Assemble the top clips to the frame (Fig. F), then
1
assemble the two side clips. Assemble the bottom
1
clip last.
1
3) The completely assembled grass bag is shown in Fig. G.
1
NOTICE:
1
wear. To reduce the risk of injury, frequently inspect the
2
bag assembly and replace if there are any signs of wear
or deterioration. Use only grass bags manufactured for
1
this mower.
ADJUSTING THE FOLDABLE HANDLE
WARNING:
the handle has been locked at one of the two preset
operating positions (UPPER OPERATING POSITION or
LOWER OPERATION POSITION).
Your mower is shipped with the handle in the compact,
LOCKED STORAGE POSITION (Fig. H).
1) Press and hold the quick-adjust lever to release the
handle from the LOCKED STORAGE POSITION
(Fig. I-1).
2 Lift the handle from its folded position, then release
the lever.Gently pivot the handle upward until you hear
and feel the lock pin engage in one of the the different
positions as shown in the Fig. I.
◾
GRASS BAG ATTACHMENT/REMOVAL POSITION (Fig. I-2).
◾
UPPER OPERATING POSITION (Fig. I-3).
◾
LOWER OPERATING POSITION (Fig. I-4).
ATTACHING/REMOVING THE GRASS BAG/
MULCHING INSERT/ SIDE DISCHARGE CHUTE
WARNING:
to the lawn mower without first stopping the motor and
removing the safety key.
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2000E
To prevent accidental starting that could
Under normal usage, bag material is subject to
Do not attempt to start the mower until
Do not at any time make any adjustment
EN
11
