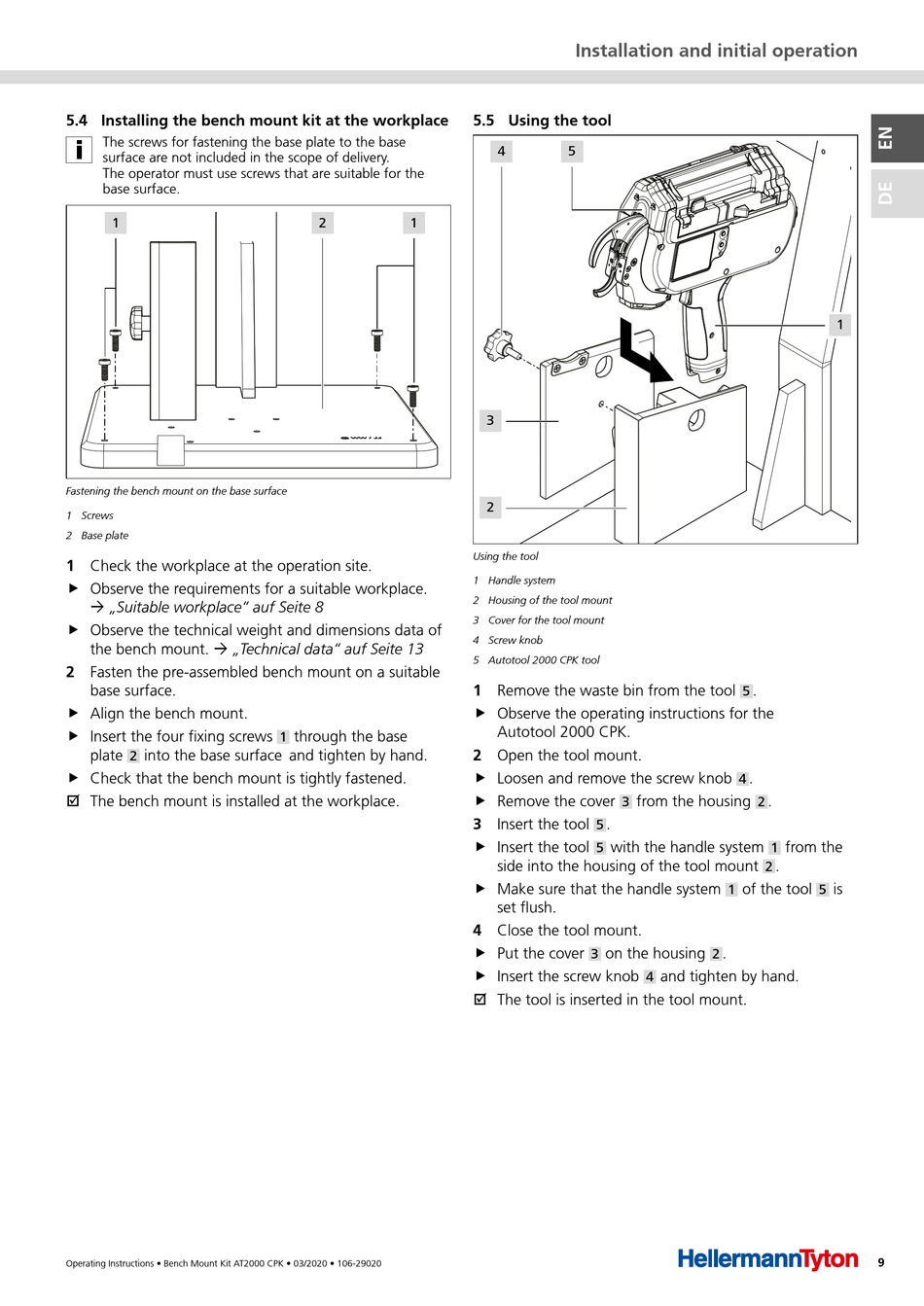

5 .4 Installing the bench mount kit at the workplace
The screws for fastening the base plate to the base
surface are not included in the scope of delivery.
The operator must use screws that are suitable for the
base surface.
1
Fastening the bench mount on the base surface
1 Screws
2 Base plate
1 Check the workplace at the operation site.
f Observe the requirements for a suitable workplace.
à „Suitable workplace" auf Seite 8
f Observe the technical weight and dimensions data of
the bench mount. à „Technical data" auf Seite 13
2 Fasten the pre-assembled bench mount on a suitable
base surface.
f Align the bench mount.
f Insert the four fixing screws
plate
into the base surface and tighten by hand.
2
f Check that the bench mount is tightly fastened.
; The bench mount is installed at the workplace.
Operating Instructions • Bench Mount Kit AT2000 CPK • 03/2020 • 106-29020
2
1
through the base
1
Installation and initial operation
5 .5 Using the tool
4
5
3
2
Using the tool
1 Handle system
2 Housing of the tool mount
3 Cover for the tool mount
4 Screw knob
5 Autotool 2000 CPK tool
1 Remove the waste bin from the tool
f Observe the operating instructions for the
Autotool 2000 CPK.
2 Open the tool mount.
f Loosen and remove the screw knob
f Remove the cover
from the housing
3
3 Insert the tool
.
5
f Insert the tool
with the handle system
5
side into the housing of the tool mount
f Make sure that the handle system
set flush.
4 Close the tool mount.
f Put the cover
on the housing
3
f Insert the screw knob
4
; The tool is inserted in the tool mount.
.
5
.
4
.
2
from the
1
.
2
of the tool
is
1
5
.
2
and tighten by hand.
1
