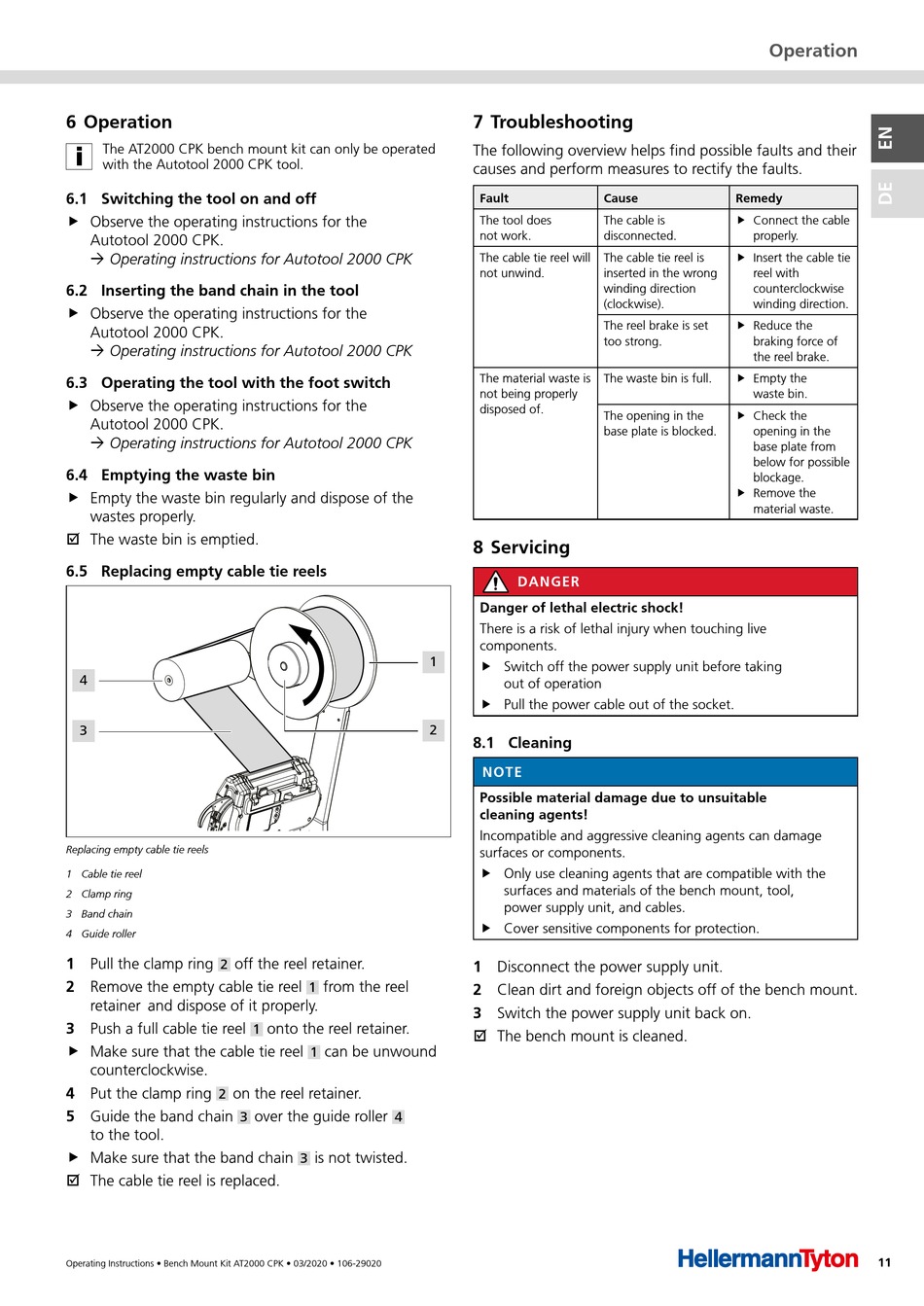

6 Operation

The AT2000 CPK bench mount kit can only be operated
with the Autotool 2000 CPK tool.

6 .1 Switching the tool on and off

f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK

6 .2 Inserting the band chain in the tool

f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK

6 .3 Operating the tool with the foot switch

f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK

6 .4 Emptying the waste bin

f Empty the waste bin regularly and dispose of the
wastes properly.
; The waste bin is emptied.

6 .5 Replacing empty cable tie reels

4
3
Replacing empty cable tie reels
1 Cable tie reel
2 Clamp ring
3 Band chain
4 Guide roller
1 Pull the clamp ring off the reel retainer.
2
2 Remove the empty cable tie reel
retainer and dispose of it properly.
3 Push a full cable tie reel
f Make sure that the cable tie reel
counterclockwise.
4 Put the clamp ring on the reel retainer.
2
5 Guide the band chain
3
to the tool.
f Make sure that the band chain
; The cable tie reel is replaced.
Operating Instructions • Bench Mount Kit AT2000 CPK • 03/2020 • 106-29020
from the reel
1
onto the reel retainer.
1
can be unwound
1
over the guide roller
4
is not twisted.
3

7 Troubleshooting

The following overview helps find possible faults and their
causes and perform measures to rectify the faults.
Fault Cause
The tool does The cable is
not work. disconnected.
The cable tie reel will The cable tie reel is
not unwind. inserted in the wrong
winding direction
(clockwise).
The reel brake is set
too strong.
The material waste is The waste bin is full.
not being properly
disposed of.
The opening in the
base plate is blocked.

8 Servicing

DANGER
Danger of lethal electric shock!
There is a risk of lethal injury when touching live
components.
1
f Switch off the power supply unit before taking
out of operation
f Pull the power cable out of the socket.
2

8 .1 Cleaning

NOTE
Possible material damage due to unsuitable
cleaning agents!
Incompatible and aggressive cleaning agents can damage
surfaces or components.
f Only use cleaning agents that are compatible with the
surfaces and materials of the bench mount, tool,
power supply unit, and cables.
f Cover sensitive components for protection.
1 Disconnect the power supply unit.
2 Clean dirt and foreign objects off of the bench mount.
3 Switch the power supply unit back on.
; The bench mount is cleaned.
Operation
Remedy
f Connect the cable
properly.
f Insert the cable tie
reel with
counterclockwise
winding direction.
f Reduce the
braking force of
the reel brake.
f Empty the
waste bin.
f Check the
opening in the
base plate from
below for possible
blockage.
f Remove the
material waste.
11
