Hooking the Geberit adapter jaw into the Geberit
Mapress pressing collar
ATTENTION
Damage to the Geberit pressing collar if Geberit adapter jaw
is used incorrectly
▶
Make sure that the claws of the Geberit adapter jaw always
completely embrace the pins of the Geberit pressing collar.
1

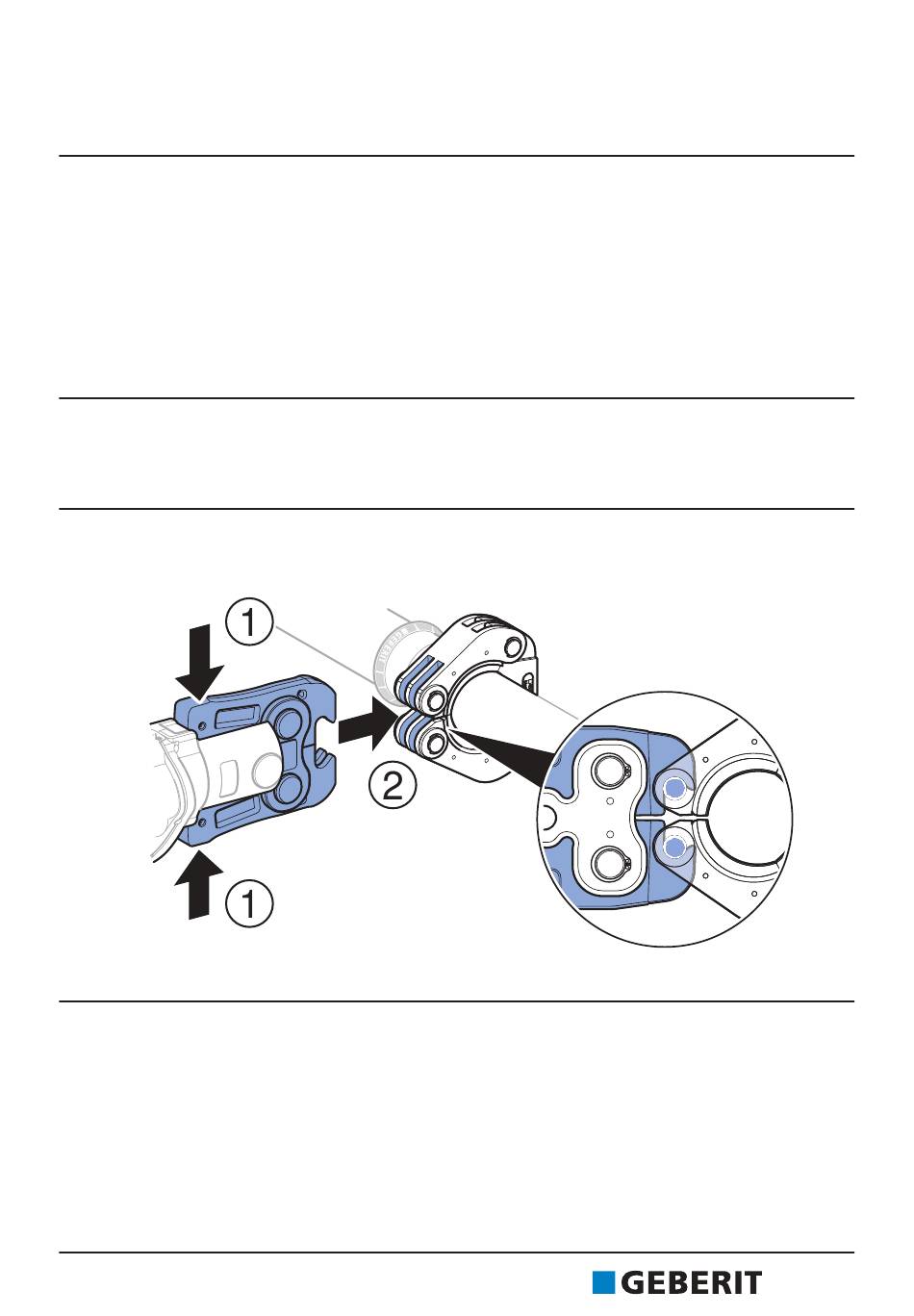

To open the Geberit adapter jaw, push both jaw levers
together.
2
Guide the claws of the Geberit adapter jaw into the grooves
of the Geberit pressing collar and hook them into the pins.
3
Release both jaw levers.
