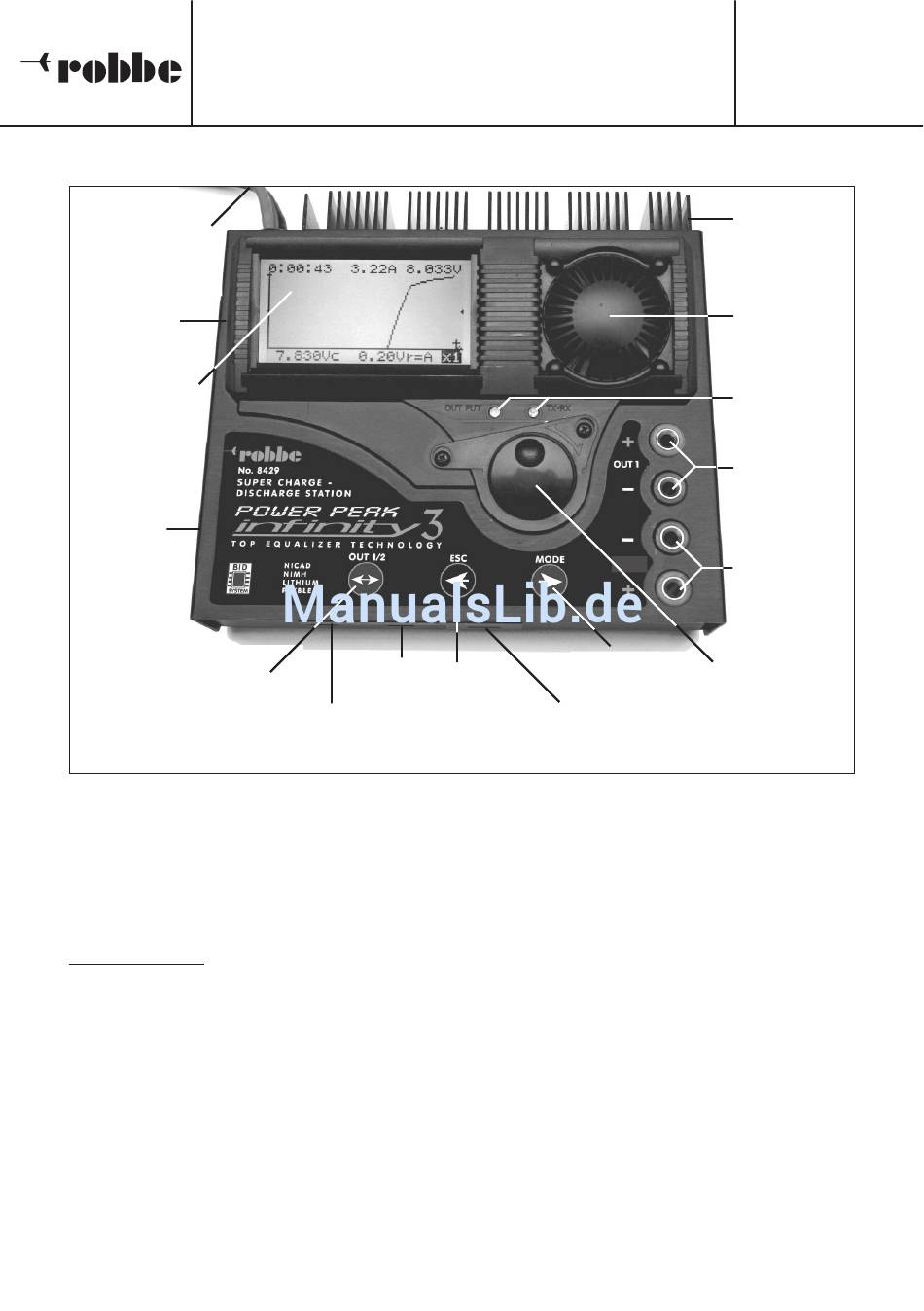

4. CONTROLS

12 V power
supply lead
20 A fuse
Graphic scre-
en, 128 x 64
dot matrix
PC interfa-
ce socket
Output select
button
Temperature
sensor socket

4.1 USING THE CONTROLS

The three buttons and the '3-D hotkey' on the POWER PEAK Infinity 3 are multi-purpose
controls, as indicated by the printed legends. Particular button-presses perform different
actions depending on the selected mode of operation.
• 3-D HOTKEY
The digital rotary control has three functions:
1. Turn clockwise
The arrow symbol scrolls down line by line to mark the desired menu or menu line.
Within the menus, turning the hotkey clockwise increases the charge or discharge
parameter value by one increment.
2. Turn anti-clockwise
The arrow symbol scrolls up line by line to mark the desired menu or menu line. Within
the menus, turning the hotkey anti-clockwise decreases the charge or discharge para-
meter value by one increment.
3. Press
Activates or disables the marked menu (indicated by the cursor).
Operating Instructions
POWER PEAK Infinity 3
'ESC' button
Equalizer
socket
7
'Mode'
3-D hotkey
button
BID chip socket
No.
8429
Heat-sink
Temperatur
e-controlled
cooling fan
Status LED
(outputs)
Output 1
Tx / Rx
output
