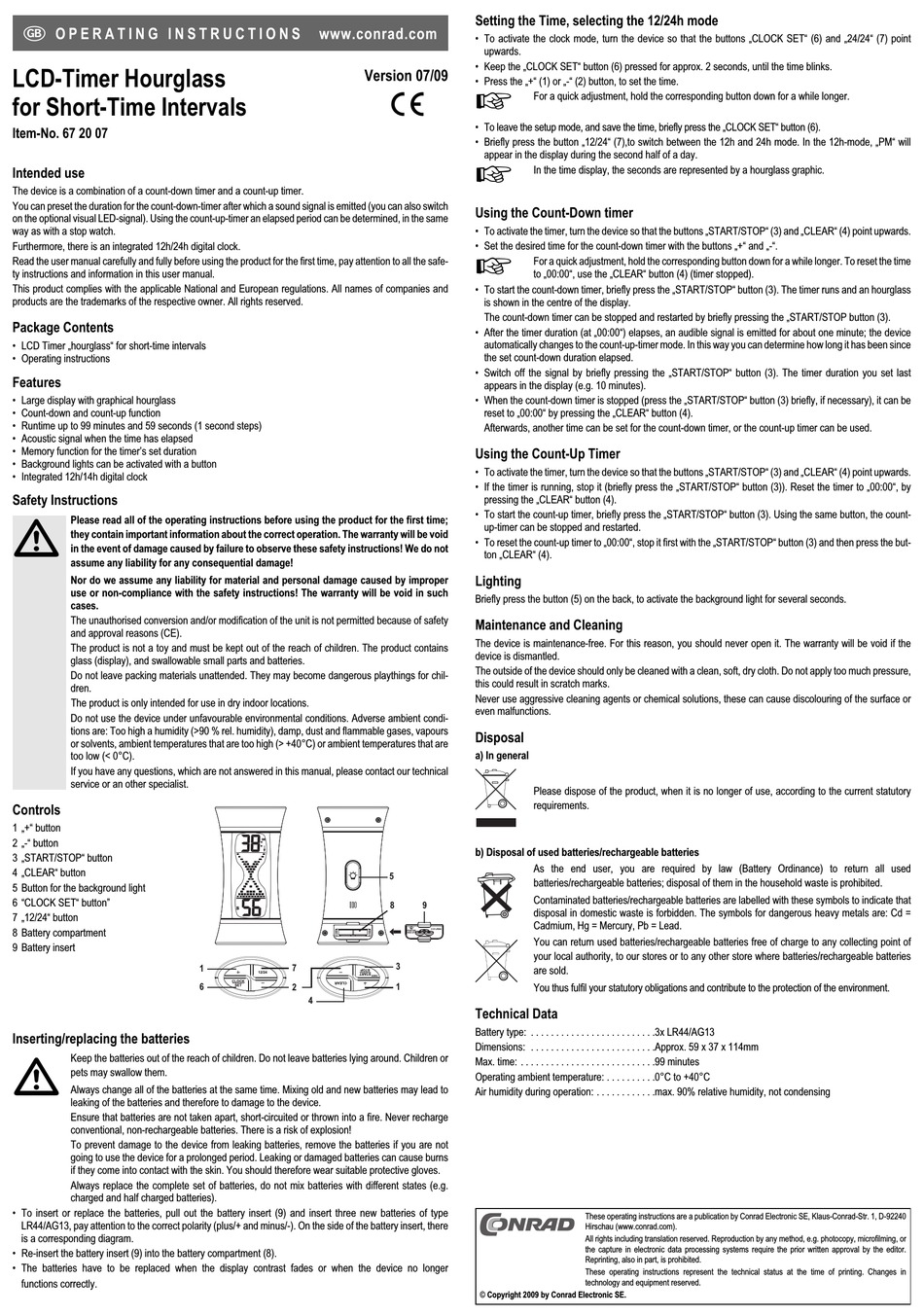

O P E R A T I N G I N S T R U C T I O N S
LCD-Timer Hourglass
for Short-Time Intervals
Item-No. 67 20 07
Intended use
The device is a combination of a count-down timer and a count-up timer.
You can preset the duration for the count-down-timer after which a sound signal is emitted (you can also switch
on the optional visual LED-signal). Using the count-up-timer an elapsed period can be determined, in the same
way as with a stop watch.
Furthermore, there is an integrated 12h/24h digital clock.
Read the user manual carefully and fully before using the product for the first time, pay attention to all the safe-
ty instructions and information in this user manual.
This product complies with the applicable National and European regulations. All names of companies and
products are the trademarks of the respective owner. All rights reserved.
Package Contents
• LCD Timer „hourglass" for short-time intervals
• Operating instructions
Features
• Large display with graphical hourglass
• Count-down and count-up function
• Runtime up to 99 minutes and 59 seconds (1 second steps)
• Acoustic signal when the time has elapsed
• Memory function for the timer's set duration
• Background lights can be activated with a button
• Integrated 12h/14h digital clock
Safety Instructions
Please read all of the operating instructions before using the product for the first time;
they contain important information about the correct operation. The warranty will be void
in the event of damage caused by failure to observe these safety instructions! We do not
assume any liability for any consequential damage!
Nor do we assume any liability for material and personal damage caused by improper
use or non-compliance with the safety instructions! The warranty will be void in such
cases.
The unauthorised conversion and/or modification of the unit is not permitted because of safety
and approval reasons (CE).
The product is not a toy and must be kept out of the reach of children. The product contains
glass (display), and swallowable small parts and batteries.
Do not leave packing materials unattended. They may become dangerous playthings for chil-
dren.
The product is only intended for use in dry indoor locations.
Do not use the device under unfavourable environmental conditions. Adverse ambient condi-
tions are: Too high a humidity (>90 % rel. humidity), damp, dust and flammable gases, vapours
or solvents, ambient temperatures that are too high (> +40°C) or ambient temperatures that are
too low (< 0°C).
If you have any questions, which are not answered in this manual, please contact our technical
service or an other specialist.
Controls
1 „+" button
2 „-" button
3 „START/STOP" button
4 „CLEAR" button
5 Button for the background light
6 "CLOCK SET" button"
7 „12/24" button
8 Battery compartment
9 Battery insert
Inserting/replacing the batteries
Keep the batteries out of the reach of children. Do not leave batteries lying around. Children or
pets may swallow them.
Always change all of the batteries at the same time. Mixing old and new batteries may lead to
leaking of the batteries and therefore to damage to the device.
Ensure that batteries are not taken apart, short-circuited or thrown into a fire. Never recharge
conventional, non-rechargeable batteries. There is a risk of explosion!
To prevent damage to the device from leaking batteries, remove the batteries if you are not
going to use the device for a prolonged period. Leaking or damaged batteries can cause burns
if they come into contact with the skin. You should therefore wear suitable protective gloves.
Always replace the complete set of batteries, do not mix batteries with different states (e.g.
charged and half charged batteries).
• To insert or replace the batteries, pull out the battery insert (9) and insert three new batteries of type
LR44/AG13, pay attention to the correct polarity (plus/+ and minus/-). On the side of the battery insert, there
is a corresponding diagram.
• Re-insert the battery insert (9) into the battery compartment (8).
• The batteries have to be replaced when the display contrast fades or when the device no longer
functions correctly.
www.conrad.com
Version 07/09
7
1
6
2
4
Setting the Time, selecting the 12/24h mode
• To activate the clock mode, turn the device so that the buttons „CLOCK SET" (6) and „24/24" (7) point
upwards.
• Keep the „CLOCK SET" button (6) pressed for approx. 2 seconds, until the time blinks.
• Press the „+" (1) or „-" (2) button, to set the time.
°
For a quick adjustment, hold the corresponding button down for a while longer.
• To leave the setup mode, and save the time, briefly press the „CLOCK SET" button (6).
• Briefly press the button „12/24" (7),to switch between the 12h and 24h mode. In the 12h-mode, „PM" will
appear in the display during the second half of a day.
In the time display, the seconds are represented by a hourglass graphic.
Using the Count-Down timer
• To activate the timer, turn the device so that the buttons „START/STOP" (3) and „CLEAR" (4) point upwards.
• Set the desired time for the count-down timer with the buttons „+" and „-".
For a quick adjustment, hold the corresponding button down for a while longer. To reset the time
to „00:00", use the „CLEAR" button (4) (timer stopped).
• To start the count-down timer, briefly press the „START/STOP" button (3). The timer runs and an hourglass
is shown in the centre of the display.
The count-down timer can be stopped and restarted by briefly pressing the „START/STOP button (3).
• After the timer duration (at „00:00") elapses, an audible signal is emitted for about one minute; the device
automatically changes to the count-up-timer mode. In this way you can determine how long it has been since
the set count-down duration elapsed.
• Switch off the signal by briefly pressing the „START/STOP" button (3). The timer duration you set last
appears in the display (e.g. 10 minutes).
• When the count-down timer is stopped (press the „START/STOP" button (3) briefly, if necessary), it can be
reset to „00:00" by pressing the „CLEAR" button (4).
Afterwards, another time can be set for the count-down timer, or the count-up timer can be used.
Using the Count-Up Timer
• To activate the timer, turn the device so that the buttons „START/STOP" (3) and „CLEAR" (4) point upwards.
• If the timer is running, stop it (briefly press the „START/STOP" button (3)). Reset the timer to „00:00", by
pressing the „CLEAR" button (4).
• To start the count-up timer, briefly press the „START/STOP" button (3). Using the same button, the count-
up-timer can be stopped and restarted.
• To reset the count-up timer to „00:00", stop it first with the „START/STOP" button (3) and then press the but-
ton „CLEAR" (4).
Lighting
Briefly press the button (5) on the back, to activate the background light for several seconds.
Maintenance and Cleaning
The device is maintenance-free. For this reason, you should never open it. The warranty will be void if the
device is dismantled.
The outside of the device should only be cleaned with a clean, soft, dry cloth. Do not apply too much pressure,
this could result in scratch marks.
Never use aggressive cleaning agents or chemical solutions, these can cause discolouring of the surface or
even malfunctions.
Disposal
a) In general
Please dispose of the product, when it is no longer of use, according to the current statutory
requirements.
b) Disposal of used batteries/rechargeable batteries
As the end user, you are required by law (Battery Ordinance) to return all used
5
batteries/rechargeable batteries; disposal of them in the household waste is prohibited.
Contaminated batteries/rechargeable batteries are labelled with these symbols to indicate that
8
9
disposal in domestic waste is forbidden. The symbols for dangerous heavy metals are: Cd =
Cadmium, Hg = Mercury, Pb = Lead.
You can return used batteries/rechargeable batteries free of charge to any collecting point of
your local authority, to our stores or to any other store where batteries/rechargeable batteries
3
are sold.
1
You thus fulfil your statutory obligations and contribute to the protection of the environment.
Technical Data
Battery type: . . . . . . . . . . . . . . . . . . . . . . . . .3x LR44/AG13
Dimensions: . . . . . . . . . . . . . . . . . . . . . . . . .Approx. 59 x 37 x 114mm
Max. time: . . . . . . . . . . . . . . . . . . . . . . . . . . .99 minutes
Operating ambient temperature: . . . . . . . . . .0°C to +40°C
Air humidity during operation: . . . . . . . . . . . .max. 90% relative humidity, not condensing
© Copyright 2009 by Conrad Electronic SE.
These operating instructions are a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240
Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or
the capture in electronic data processing systems require the prior written approval by the editor.
Reprinting, also in part, is prohibited.
These operating instructions represent the technical status at the time of printing. Changes in
technology and equipment reserved.
