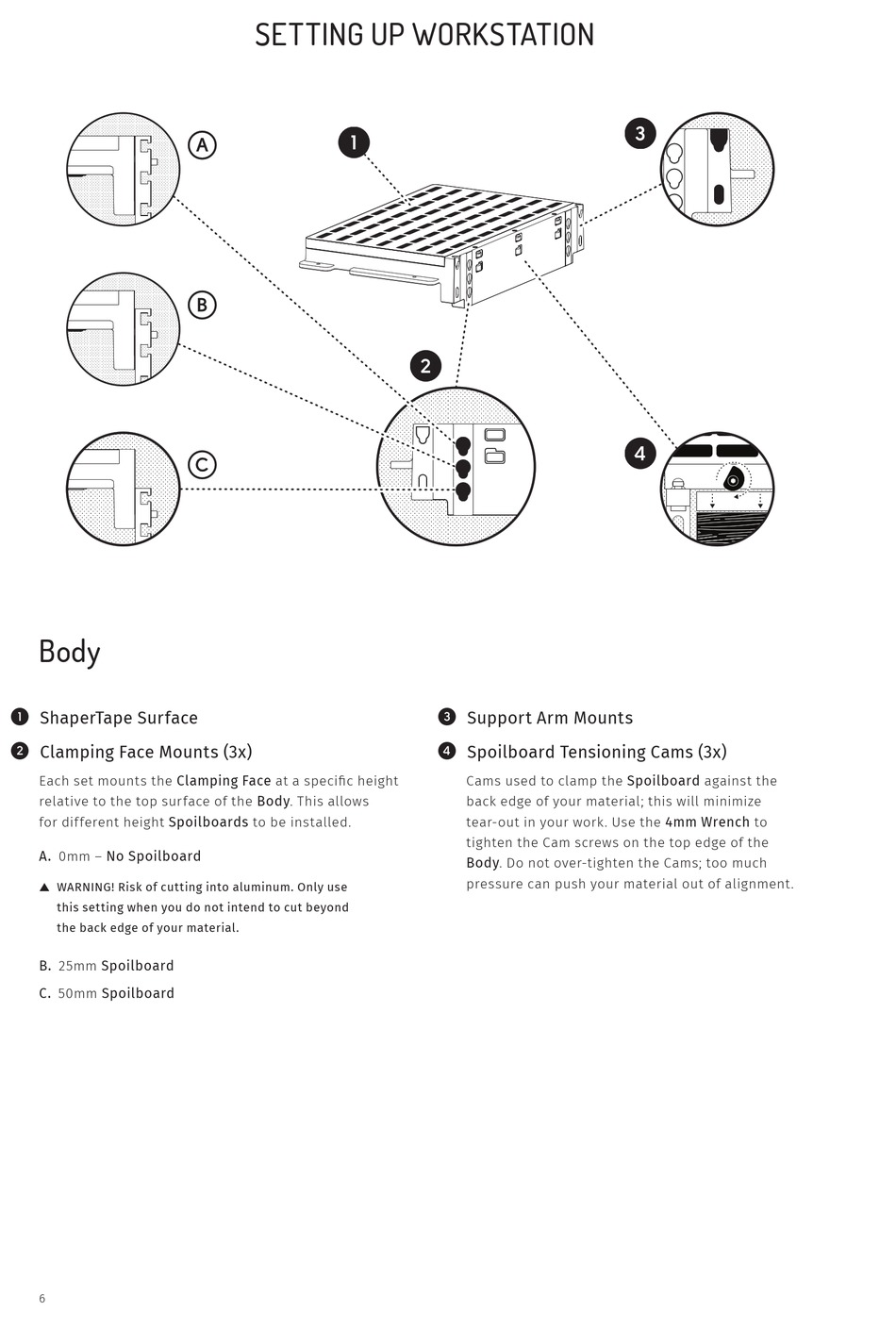

Body

ShaperTape Surface
A
Clamping Face Mounts (3x)
B
Each set mounts the Clamping Face at a specific height
relative to the top surface of the Body. This allows
for different height Spoilboards to be installed.
A. 0mm – No Spoilboard
▲ WARNING! Risk of cutting into aluminum. Only use
this setting when you do not intend to cut beyond
the back edge of your material.
B. 25mm Spoilboard
C. 50mm Spoilboard
6

SETTING UP WORKSTATION

Support Arm Mounts
C
Spoilboard Tensioning Cams (3x)
D
Cams used to clamp the Spoilboard against the
back edge of your material; this will minimize
tear-out in your work. Use the 4mm Wrench to
tighten the Cam screws on the top edge of the
Body. Do not over-tighten the Cams; too much
pressure can push your material out of alignment.
