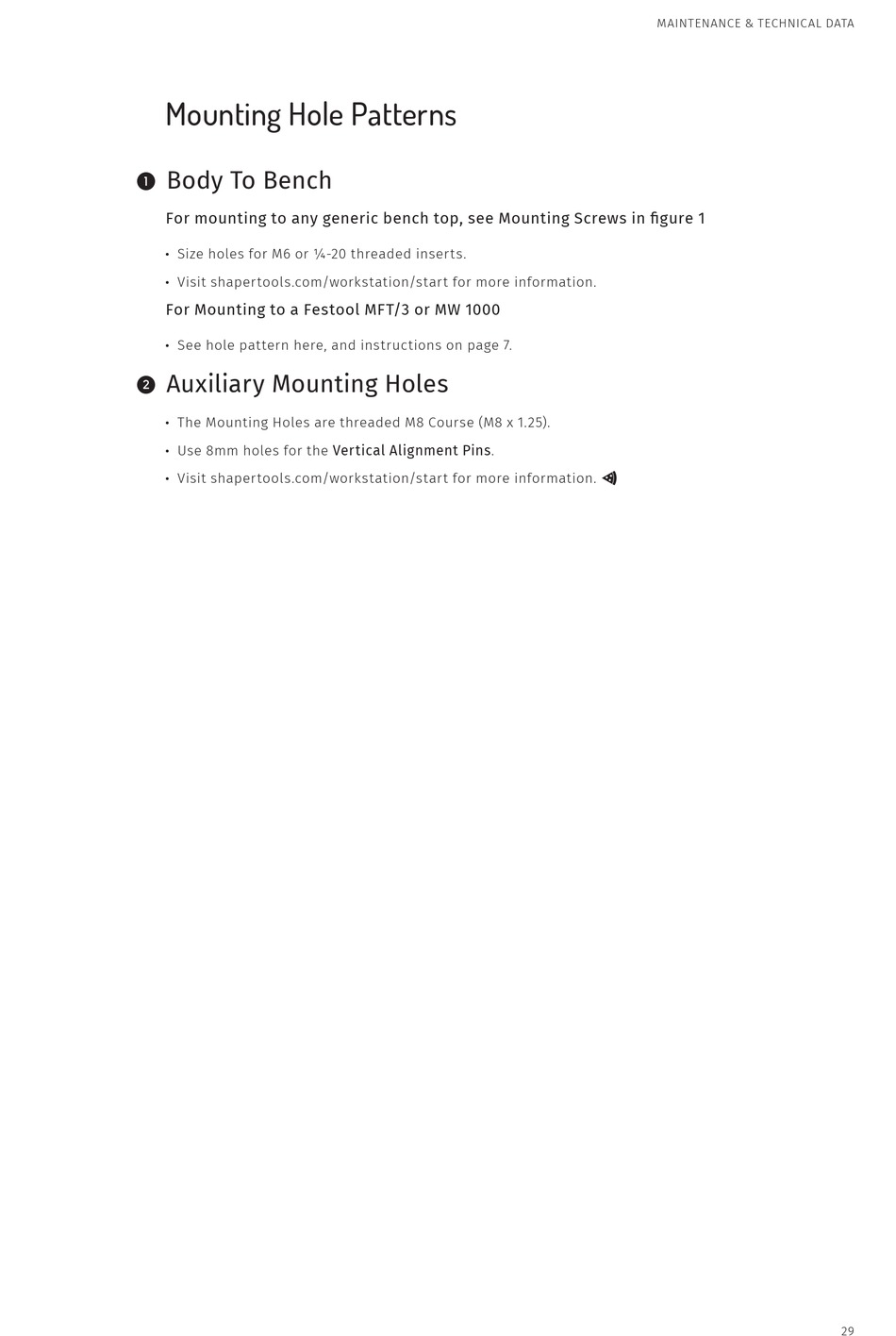

Mounting Hole Patterns

A Body To Bench
For mounting to any generic bench top, see Mounting Screws in figure 1
  ∙ Size holes for M6 or ¼-20 threaded inserts.
  ∙ Visit shapertools.com/workstation/start for more information.
For Mounting to a Festool MFT/3 or MW 1000
  ∙ See hole pattern here, and instructions on page 7.
B Auxiliary Mounting Holes
  ∙ The Mounting Holes are threaded M8 Course (M8 x 1.25).
  ∙ Use 8mm holes for the Vertical Alignment Pins.
  ∙ Visit shapertools.com/workstation/start for more information.
MAinTEnAnCE & TECHniCAl DATA
~
29
