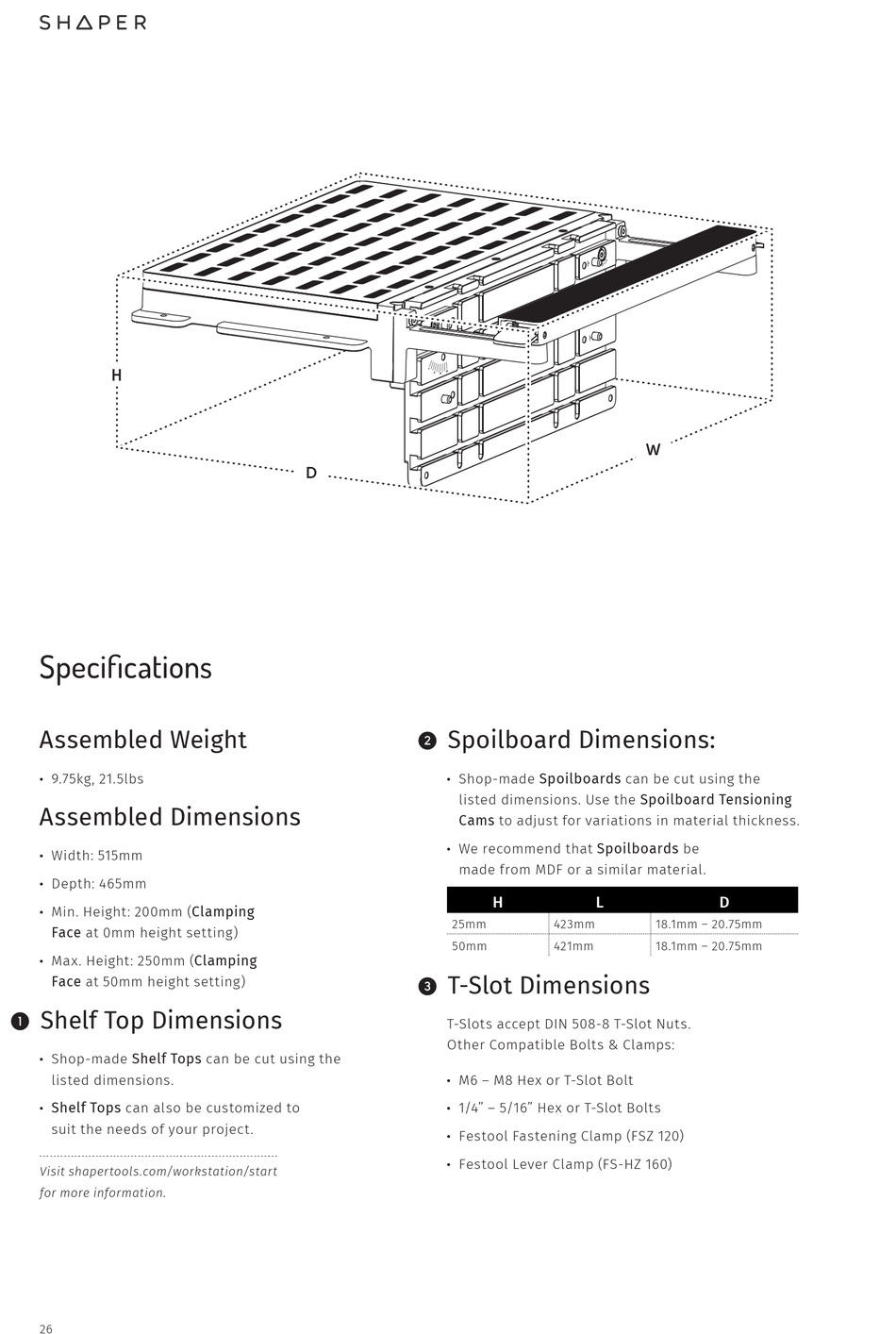

Specifications

Assembled Weight
∙ 9.75kg, 21.5lbs
Assembled Dimensions
∙ Width: 515mm
∙ Depth: 465mm
∙ Min. Height: 200mm (Clamping
Face at 0mm height setting)
∙ Max. Height: 250mm (Clamping
Face at 50mm height setting)
A Shelf Top Dimensions
∙ Shop-made Shelf Tops can be cut using the
listed dimensions.
∙ Shelf Tops can also be customized to
suit the needs of your project.
Visit shapertools.com/workstation/start
for more information.
26
D
B Spoilboard Dimensions:
∙ Shop-made Spoilboards can be cut using the
listed dimensions. Use the Spoilboard Tensioning
Cams to adjust for variations in material thickness.
∙ We recommend that Spoilboards be
made from MDF or a similar material.
25mm
50mm
C T-Slot Dimensions
T-Slots accept Din 508-8 T-Slot nuts.
other Compatible Bolts & Clamps:
∙ M6 – M8 Hex or T-Slot Bolt
∙ 1/4" – 5/16" Hex or T-Slot Bolts
∙ Festool Fastening Clamp (FSZ 120)
∙ Festool lever Clamp (FS-HZ 160)
W
H L
423mm 18.1mm – 20.75mm
421mm 18.1mm – 20.75mm
D
