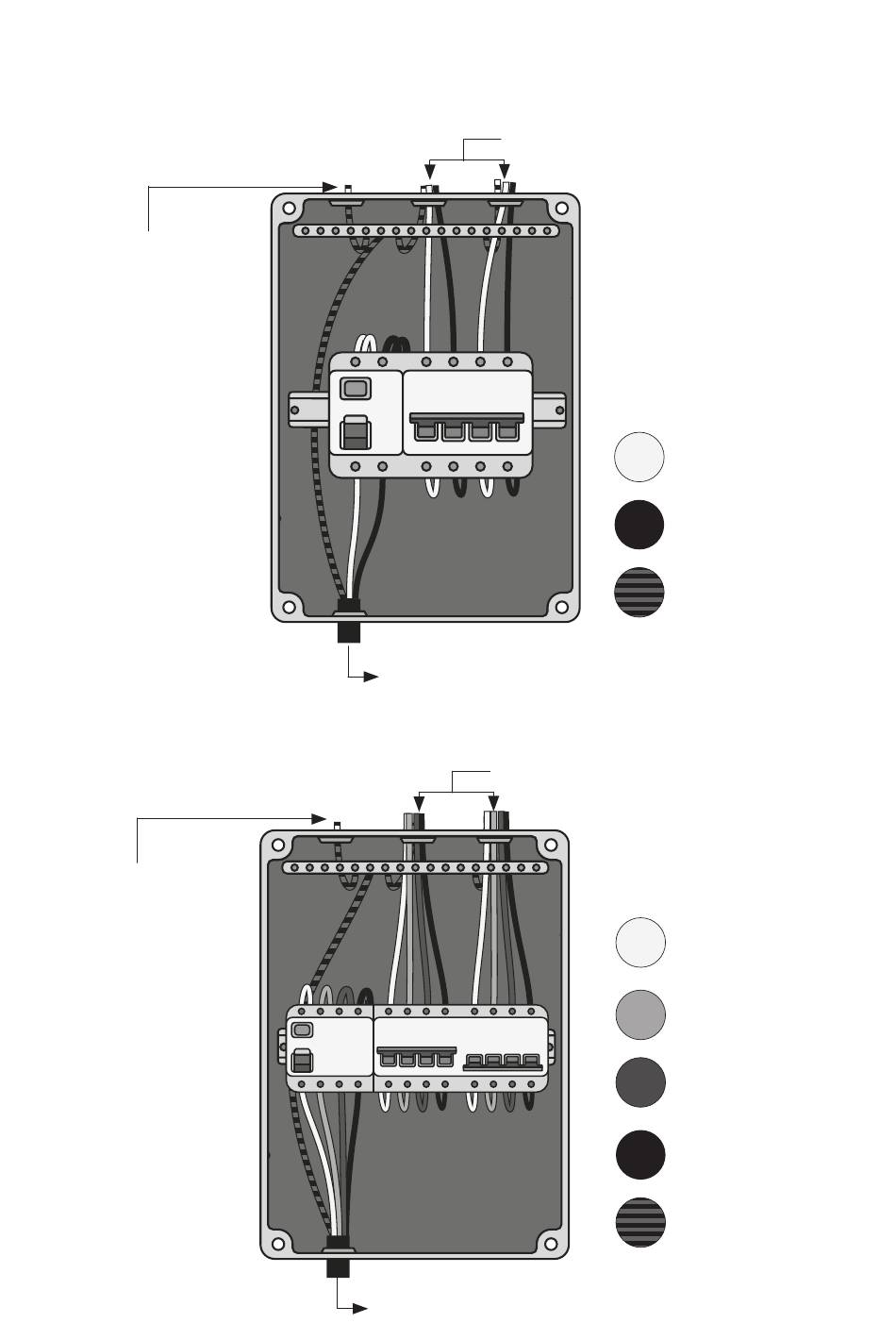

5.b - Electric Wiring: Dual Chargers
A.
Two Chargers: Single Phase
1. Cables from
panel door
B.
Two Chargers: Three Phase
1. Cables from
panel door
24
2. Cables from charger
3. Cables from power supply
2. Cables from charger
3. Cables from power supply
L1
N
PE
L1
L2
L3
N
PE
