Wallbox Eiffel Installationsanleitung Seite 16

2 - Drilling
min. 25mm
max. 85mm
16
A.

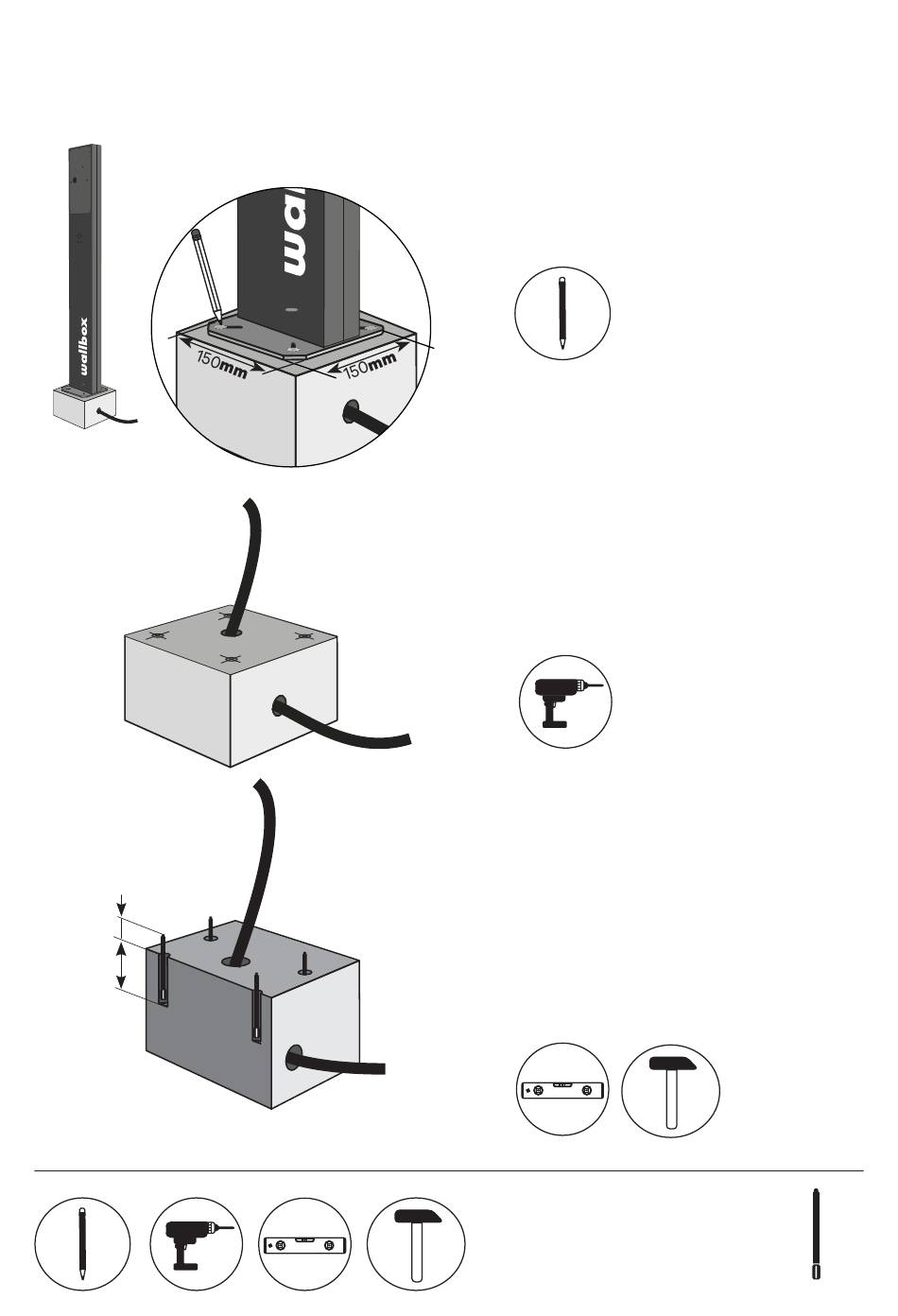

Mark the position of the four
boreholes on the concrete
foundation.
B.
Remove the pedestal and drill
four holes in the concrete
foundation at the previously
marked positions.
12mm
C.
Remove the nuts and washers
from the anchor bolts.
Insert the anchors in the drilled
holes making sure they are
leveled. Secure them
by using a hammer.
x4
ø6 x 40mm
