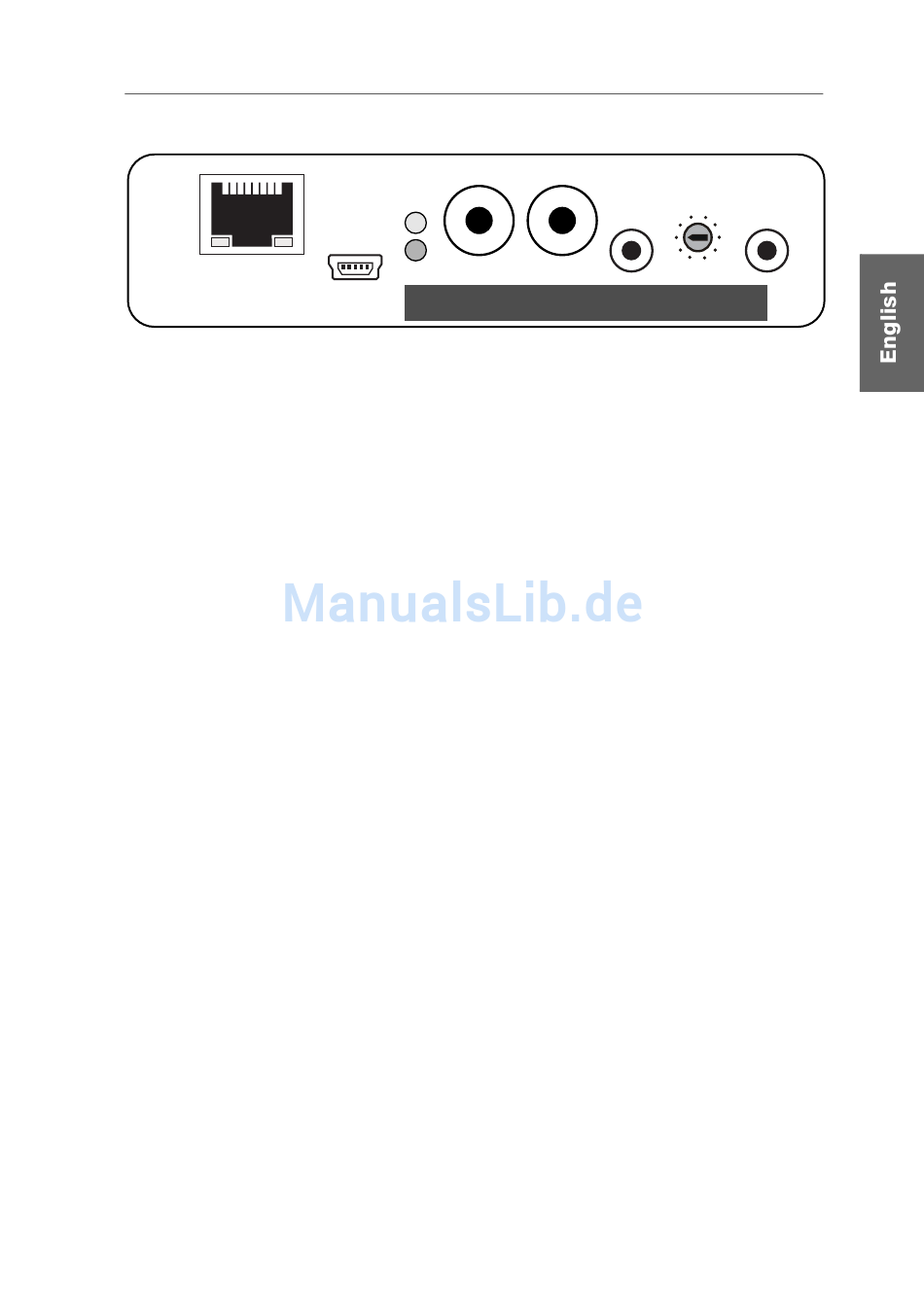

Connecting a signal extender at a console

Trans.
Trans: Insert the RJ45 plug of the optionally available twisted pair cable. Connect
the other end of the cable with the Trans. interface of the signal extender placed at
the workstation.
Digital Audio – Out: Use an RCA (Cinch) audio cable to connect the computer's
SPDIF-In interface to this interface.
Digital Audio – In: Use an RCA (Cinch) audio cable to connect the computer's SPDIF-
Out interface to this interface.
Line In/Micro In: Connect the console microphone or a Line-Out source to this inter-
face.
Line Out/Speaker: Connect the console speakers or a headset to this interface.
Connect the portable power pack to this interface.
Power:
Digital Audio
Audio
Service
Power
Out
Audio-Transceiver-CAT
Line In/
3
2
Micro In
1 4
0 5
9 6
8 7
In
Audio-Transceiver-CAT · 4

Installation

Line Out/
Speaker
