Maintenance
SNV 8
Backseating
Supplied after
August 1995

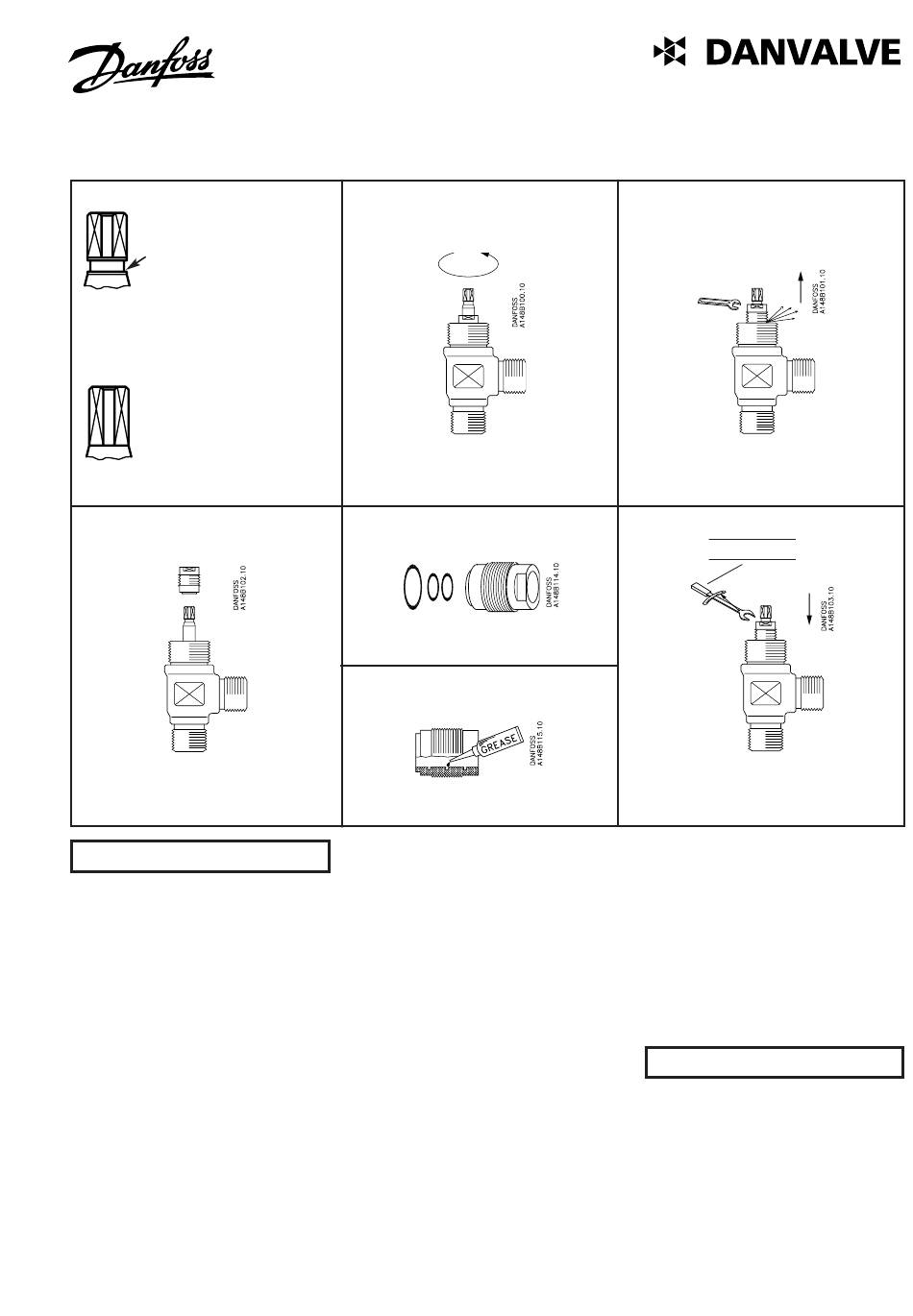

Fig. 4a
No Backseating
Supplied until
August 1995
Fig. 4b
Fig. 7
ENGLISH
PACKING GLAND
NB:
The
spindle
cannot
changed.
As a rule do not dismount packing
glands with internal pressure in the
valve. If the SNV valve, however, is
delivered after August 1995 it is pos-
sible to remove the packing gland
with the valve still under pressure if
the following precautionary mea-
sures are taken:
NB: Only SNV valves supplied
after August 1995 can be back-
seated! Fig. 4a-4b illustrates how,
you tell the difference between SNV
valves with and without backseating
facility.
No 2516+287 Sheet: 2/2 Rev. 2
Fig. 5
Fig. 8
Fig. 9
1. Backseating (fig. 5): To backseat
the valve, turn the spindle anti-
clockwise until a light touch
against the stop is felt.
be
2. Pressure equalizing (fig. 6): It may
be that pressure builds up behind
the packing gland.
3. Now it is possible to dismount the
packing gland (fig. 7).
REPLACEMENT OF O-RINGS
AND GASKET (FIG. 8)
Replace the O-rings and gasket of
the packing gland by original Dan-
foss O-rings and gaskets or change
the complete packing gland. If there
are marks of blow on the spindle it
must be replaced.
11-1999
501
Fig. 6
Nm
LB-feet
30
22
Fig. 10
LUBRICATION (FIG. 9)
For optimum tightness, fill the rail in
the middle of the packing gland with
original Danfoss grease (part No.
2452+143).
Tightening of packing gland (fig.
10).
In case of doubt, please contact
dealer or factory.
DANSK
PAKFORSKRUNING
OBS: Spindlen kan ikke skiftes.
Ved afmontering af pakforskruning-
en bør ventilen normalt være fri for
indre tryk.
På SNV ventiler leveret efter aug.
1995 kan pakforskruningen dog
afmonteres, når der er tryk i ventilen,
