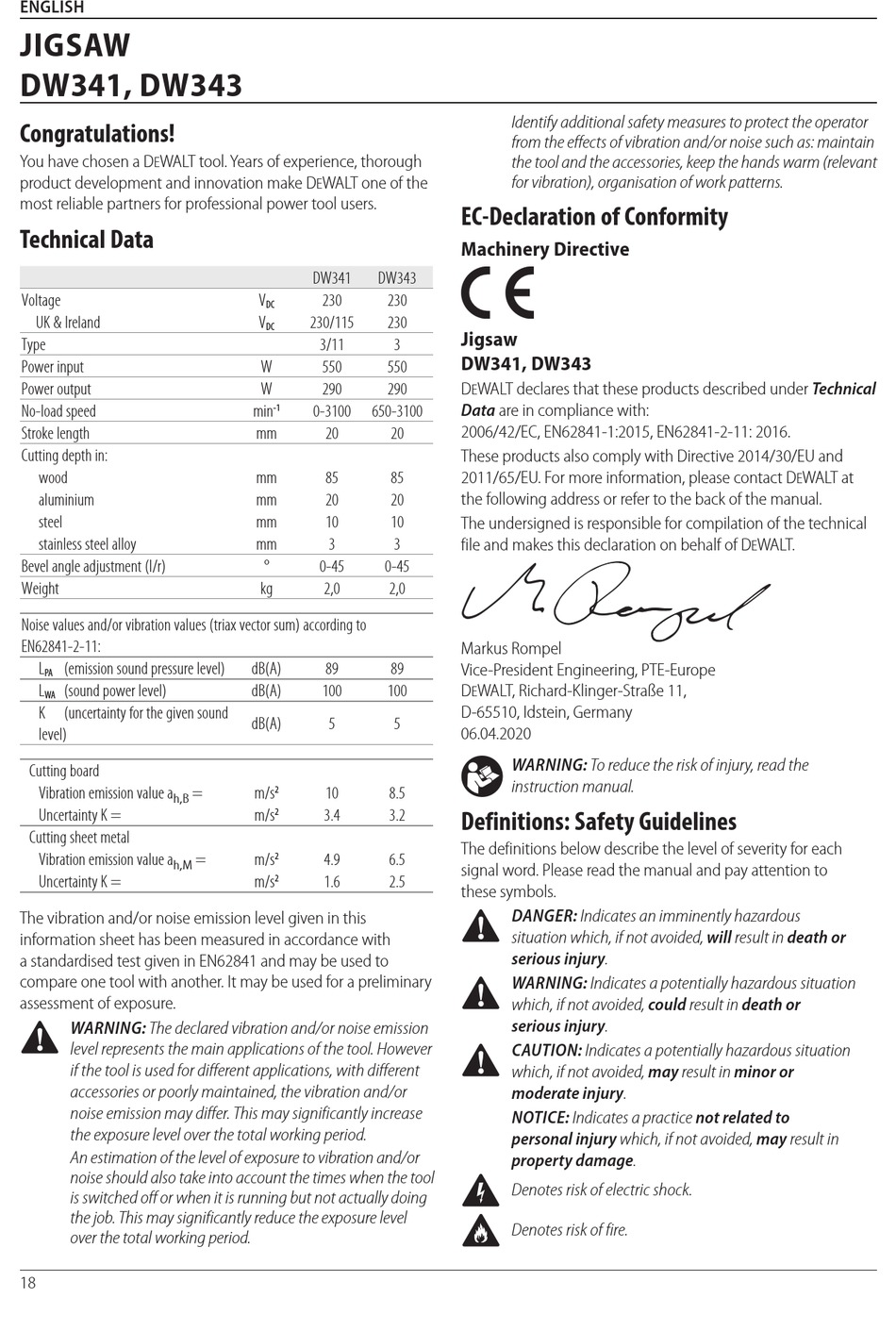

English (Original Instructions); Technical Data - DeWalt DW341 Übersetzung Der Originalanweisung

EngLIsh
JIGSAW
DW341, DW343
Congratulations!
You have chosen a D WALT tool. Years of experience, thorough
e
product development and innovation make D
most reliable partners for professional power tool users.

Technical Data

Voltage
UK & Ireland
Type
Power input
Power output
No-load speed
Stroke length
Cutting depth in:
wood
aluminium
steel
stainless steel alloy
Bevel angle adjustment (l/r)
Weight
Noise values and/or vibration values (triax vector sum) according to
EN62841-2-11:
L (emission sound pressure level)
PA
L (sound power level)
WA
K (uncertainty for the given sound
level)
Cutting board
Vibration emission value a
h,B
Uncertainty K =
Cutting sheet metal
Vibration emission value a
h,M
Uncertainty K =
The vibration and/or noise emission level given in this
information sheet has been measured in accordance with
a standardised test given in EN62841 and may be used to
compare one tool with another. It may be used for a preliminary
assessment of exposure.

WARNING: The declared vibration and/or noise emission
level represents the main applications of the tool. However
if the tool is used for different applications, with different
accessories or poorly maintained, the vibration and/or
noise emission may differ. This may significantly increase
the exposure level over the total working period.
An estimation of the level of exposure to vibration and/or
noise should also take into account the times when the tool
is switched off or when it is running but not actually doing
the job. This may significantly reduce the exposure level
over the total working period.
18
WALT one of the
e
DW341
V 230
DC
V 230/115
DC
3/11
W 550
W 290
min -1 0-3100
mm 20
mm 85
mm 20
mm 10
mm 3
° 0-45
kg 2,0
dB(A) 89
dB(A) 100
dB(A) 5
= m/s 2 10
m/s 2 3.4
= m/s 2 4.9
m/s 2 1.6
Identify additional safety measures to protect the operator
from the effects of vibration and/or noise such as: maintain
the tool and the accessories, keep the hands warm (relevant
for vibration), organisation of work patterns.
EC-Declaration of Conformity
Machinery Directive
DW343
230
230
Jigsaw
3
DW341, DW343
550
D WALT declares that these products described under Technical
290
e
Data are in compliance with:
650-3100
2006/42/EC, EN62841-1:2015, EN62841-2-11: 2016.
20
These products also comply with Directive 2014/30/EU and
2011/65/EU. For more information, please contact D
85
the following address or refer to the back of the manual.
20
10 The undersigned is responsible for compilation of the technical
3 file and makes this declaration on behalf of D
0-45
2,0
Markus Rompel
89 Vice-President Engineering, PTE-Europe
D WALT, Richard-Klinger-Straße 11,
100
e
D-65510, Idstein, Germany
5
06.04.2020
a
WARNING: To reduce the risk of injury, read the
instruction manual.
8.5
Definitions: Safety Guidelines
3.2
The definitions below describe the level of severity for each
6.5
signal word. Please read the manual and pay attention to
2.5
these symbols.

DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
serious injury.

WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.

CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
property damage.

Denotes risk of electric shock.

Denotes risk of fire.
WALT at
e
WALT.
e
