1 Display and Operation Elements

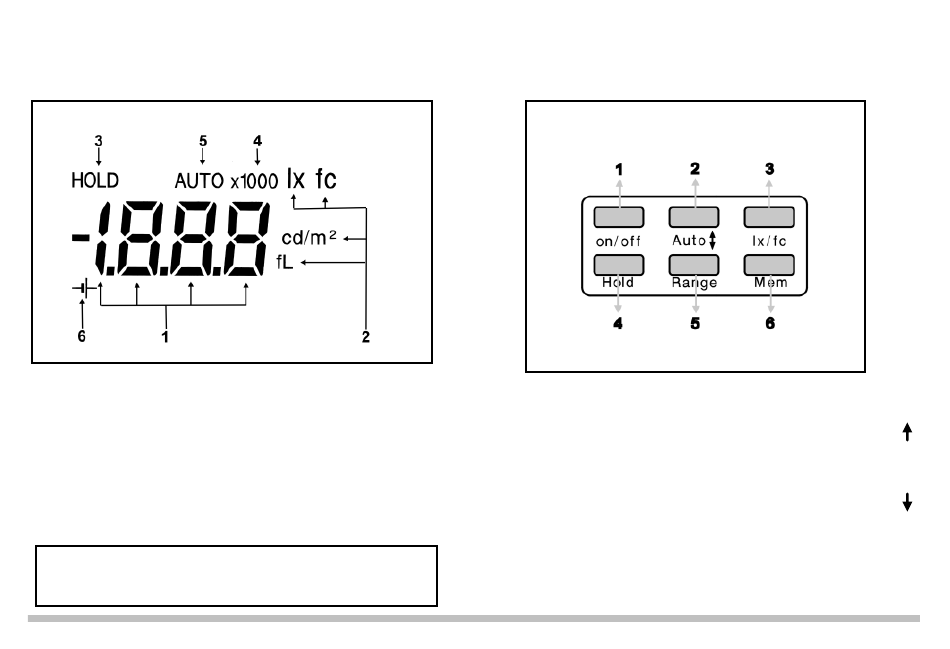

1.1 Display

1 Display of measuring value and Memory
2 Measuring Unit
Display „HOLD„ indication / Buffer Storage
3
4 Multiplying factor for measuring value
Auto ranging – automatic range selection
5
6 Low Battery
Automatic backlight in HOLD function.
GOSSEN Foto- und Lichtmesstechnik GmbH

1.2 Key Pad

1 Switch On/Off
Range key – Memory/Measuring range
2
lx/fc – Select measuring unit
3
HOLD – Function / Buffer Storage
4
Range key – Memory/Measuring range
5
MEM – Memory key
6
9
