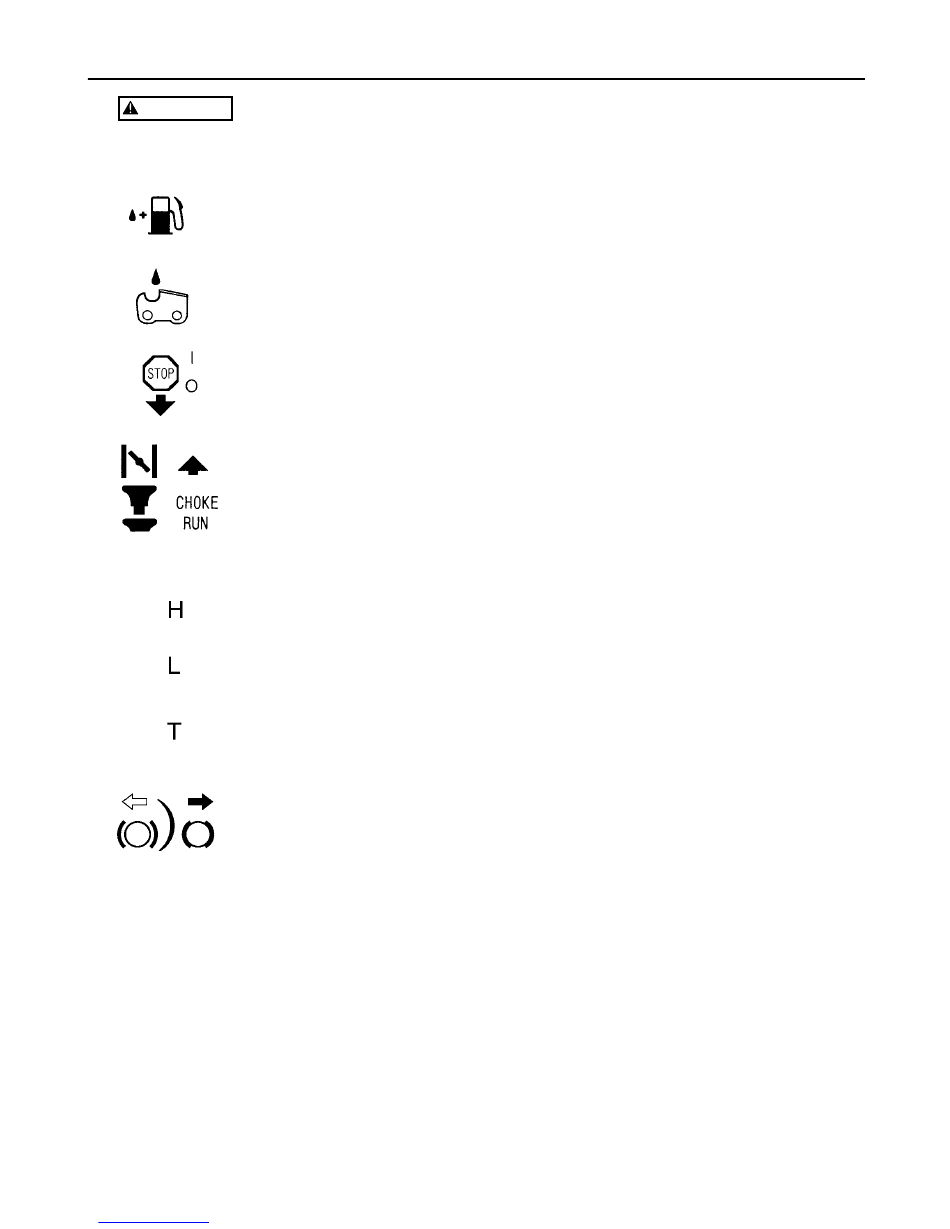

2. Explanation of Symbols on the Machine

WARNING
• For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
GB-6
Downloaded from www.Manualslib.com
The port to refuel "MIX GASOLINE"
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Setting the switch to the " | " position, the engine starts.
Setting the switch to the "O" position, the engine stops immediately.
Position: Rear-left of the unit
Starting the engine.
Starting mode when the engine is cold. (cold start)
Position: Upper-right of the aircleaner cover
The screw under the "H" stamp is The High-speed adjustment screw.
The screw under the "L" stamp is The Slow-speed adjustment screw.
The screw at the left of the "T" stamp is the Idle adjustment screw.
Position: Left side of the rear handle
Shows the directions that the chain brake is released (white arrow) and activated (black ar-
row).
Position: Front of the chain cover
