3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.2 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

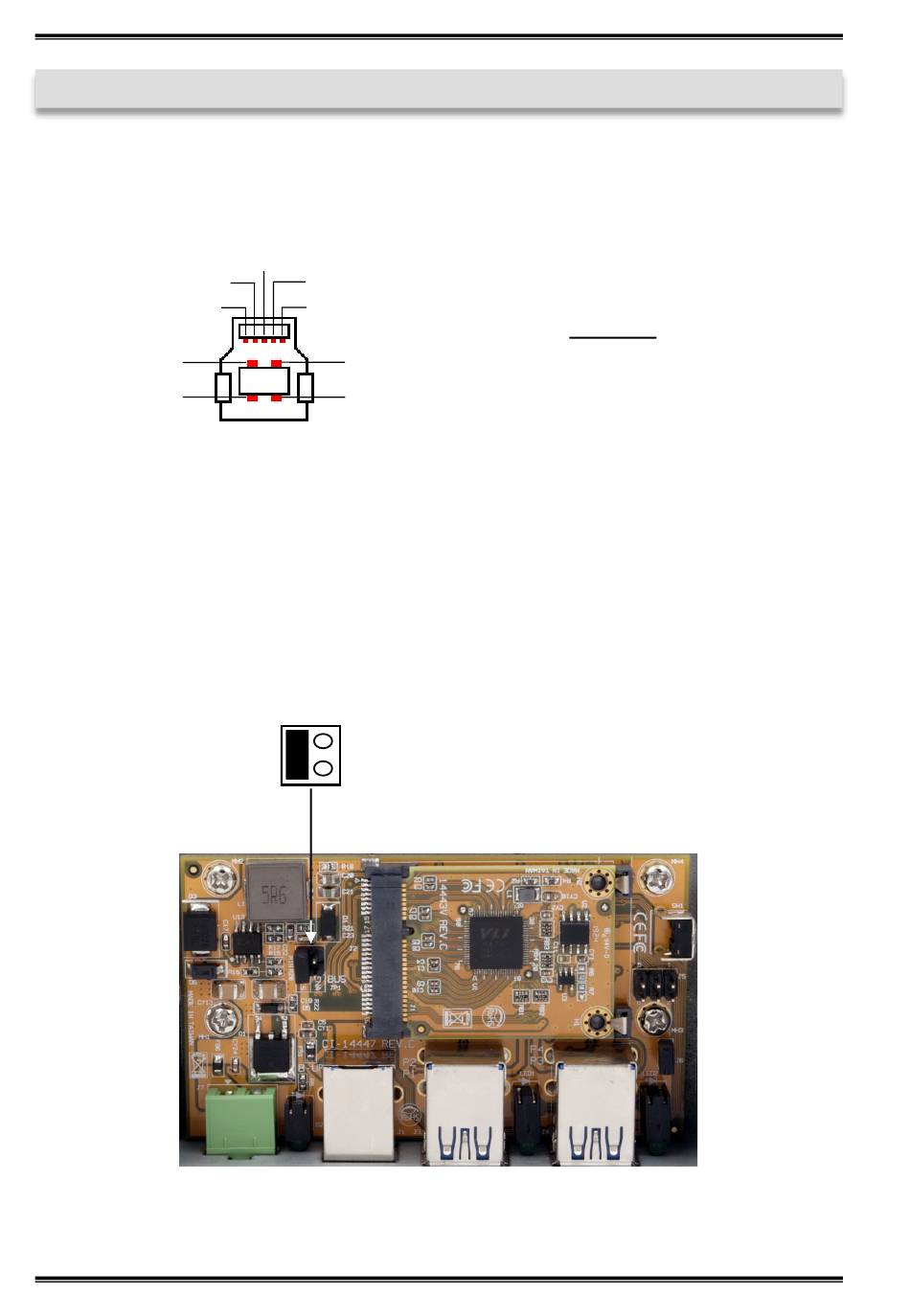

3.3 Jumper Settings

The EX-1504HMS will be delivered with the setting Self-Power. You also have the
possibility the EX-1504HMS to supply Bus-Power. For this you open the case with the
two screws on the sides. Then you must set the jumper JP1 from DIS (Disable) to
ENA (Enable). See the following picture.
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
DIS ENA
JP1
Attention!
Never plug in with force
or in wrong direction.
12
EX-1504HMS
