Exsys EX-11495 Anleitung

CONNECTORS
J1:
To guarantee the full 900mA at all ports of the EX-11495, it
is recommended that the card be connected with the power
supply of the PC. It must be connected only one power
connector J1 OR J2! Please make sure you connect the
plug in the right direction!
Never connect or release the plug while the PC is
supplied with power!
1 +12V 2 GND 3 GND 4 +5V
J2:
Pin Assignment Pin Assignment
1 3.3 Volt (Orange) 7 5 Volt (pre-charge)
2 3.3 Volt (Orange) 8 5 Volt (Red)
3 3.3 Volt (pre-charge) 9 5 Volt (Red)
4 Ground (Black) 10 Ground (Black)
5 Ground (Black) 11 Reserve
6 Ground (Black) 12 Ground (Black)
To guarantee the full 900mA at all ports of the EX-11495, it is recommended that the card be
connected with the power supply of the PC. It must be connected only one power connector J1
OR J2!
Please make sure you connect the plug in the right direction.!
Never connect or release the plug while the PC is supplied with power!
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11495. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Now install the power supply via the SATA 15 pin connector or the 4 pol molex connector.
(see picture Connectors J1 or J2)
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
5
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003 & 2008R2
After starting Windows is recognizes a new "USB (Universal Serial Bus)-Controller". Start the
„SETUP" file which is in the "uPD720201_202" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
Pin Assignment
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
13 12 Volt (pre-charge)
14 12 Volt (Yellow)
15 12 Volt (Yellow)
If you see this or a similar information the device is installed correctly.
Windows 8.x/ 10/ Server 2012R2/ 2016/ 2019
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
AUFBAU
CN1-CN4:
4x USB 3.2 (Gen1)
C-Buchse für Endgeräte
BESCHREIBUNG & TECHNISCHE DATEN

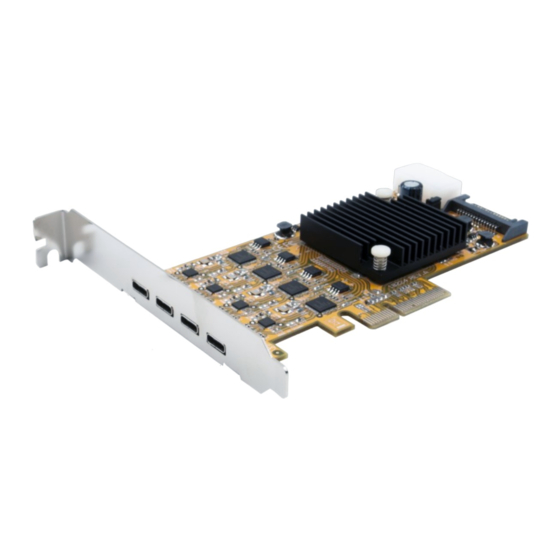

Die EX-11495 ist eine USB 3.2 (Gen1) 4 Port Quad Channel PCI-Express Karte. Sie ist mit 4
externen USB C-Anschlüsse ausgestattet, die jeweils 900mA Strom zu Verfügung stellen. Sie
unterstützt alle PCI-Express Slots von x4 bis x16. Der serielle PCI-Express Bus unterstützt
optimal die Leistung des schnellen Renesas Chipsatz. Zusätzlich besitzt jeder einzelne USB 3.2
(Gen1) Port einen eigenen Chip und somit auch einen eigenen Channel. Die EX-11495 gewähr-
leistet so eine sichere Datenübertragung und exzellente Performance von bis zu 5Gbit pro
Sekunde an jedem Port! Es wird empfohlen die EX-11495 mit zusätzlichen Strom vom PC
Netzteil zu verbinden, um die volle Leistung von 900mA an den 4 externen Port's zu gewähr-
leisten.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
USB 3.2 (Gen1) C-Buchse:
Hinweis!
Durch die doppel Belegung der Pin's, kann der USB Typ-C Stecker beidseitig in die
Buchse gesteckt werden.
6
Anleitung
Vers. 1.0 / 12.08.2020
J1:
4 Pin Molex
Power Anschluss
vom PC-Netzteil
PCI-Express x4 bis x16, USB 1.1, 2.0, 3.0, 3.1 & 3.2
Windows XP/ Vista/ 7/ 8.x/ 10/Server 20xx/ Linux
4x USB 3.2 (Gen1) C-Buchse, 1x 4 Pin Molex, 1x SATA 15 Pin
EX-11495, Low Profile Bügel, Treiber CD, Anleitung
1
EX-11495
J2:
SATA 15 Pin
Power Anschluss
vom PC-Netzteil
