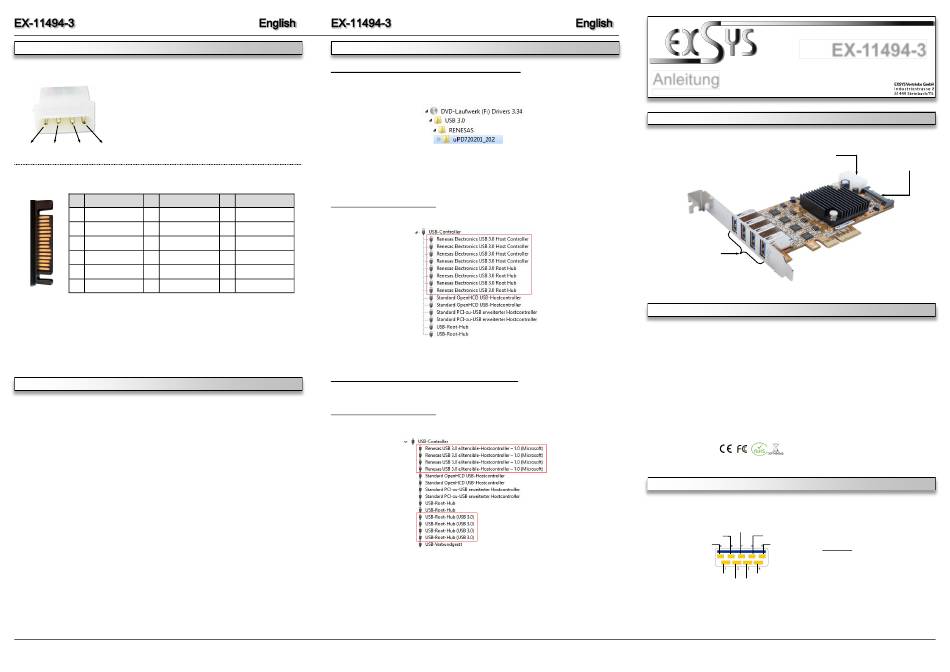

Exsys EX-11494-3 Anleitung

CONNECTORS
J1:
To guarantee the full 900mA at all ports of the EX-11494-3,
it is recommended that the card be connected with the
power supply of the PC. It must be connected only one
power connector J1 OR J2! Please make sure you con-
nect the plug in the right direction!
Never connect or release the plug while the PC is
supplied with power!
1 +12V 2 GND 3 GND 4 +5V
J2:
Pin Assignment Pin Assignment
1 3.3 Volt (Orange) 7 5 Volt (pre-charge)
2 3.3 Volt (Orange) 8 5 Volt (Red)
3 3.3 Volt (pre-charge) 9 5 Volt (Red)
4 Ground (Black) 10 Ground (Black)
5 Ground (Black) 11 Reserve
6 Ground (Black) 12 Ground (Black)
To guarantee the full 900mA at all ports of the EX-11494-3, it is recommended that the card be
connected with the power supply of the PC. It must be connected only one power connector J1
OR J2!
Please make sure you connect the plug in the right direction.!
Never connect or release the plug while the PC is supplied with power!
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11494-3. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Now install the power supply via the SATA 15 pin connector or the 4 pol molex connector.
(see picture Connectors J1 or J2)
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
5
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003 & 2008R2
After starting Windows is recognizes a new "USB (Universal Serial Bus)-Controller". Start the
„SETUP" file which is in the "uPD720201_202" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
Pin Assignment
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
13 12 Volt (pre-charge)
14 12 Volt (Yellow)
15 12 Volt (Yellow)
If you see this or a similar information the device is installed correctly.
Windows 8.x/ 10/ Server 2012R2/ 2016/ 2019
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
AUFBAU
J3-J6:
4x USB 3.2 (Gen1)
A-Buchse für Endgeräte
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-11494-3 ist eine USB 3.2 (Gen1) 4 Port Quad Channel PCI-Express Karte. Sie ist mit 4
externen Port's ausgestattet, die jeweils 900mA Strom zu Verfügung stellen. Sie unterstützt alle
PCI-Express Slots von x4 bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung
des schnellen Renesas Chipsatz. Zusätzlich besitzt jeder einzelne USB 3.2 (Gen1) Port einen
eigenen Chip und somit auch einen eigenen Channel. Die EX-11494-3 gewährleistet so eine
sichere Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde an jedem
Port! Es wird empfohlen die EX-11494-3 mit zusätzlichen Strom vom PC Netzteil zu verbinden,
um die volle Leistung von 900mA an den 4 externen Port's zu gewährleisten.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
USB 3.2 (Gen1) A-Buchse:
6
EX-11494-3
Anleitung
Vers. 1.1 / 28.07.2020
J1:
4 Pin Molex
Power Anschluss
vom PC-Netzteil
PCI-Express x4 bis x16, USB 1.1, 2.0, 3.0 & 3.1
Windows XP/ Vista/ 7/ 8.x/ 10/Server 20xx/ Linux
4x USB 3.2 (Gen1) A-Buchse, 1x 4 Pin Molex, 1x SATA 15 Pin
EX-11494-3, Low Profile Bügel, Treiber CD, Anleitung
GND_DR
StdB_SS StdB_SS
StdB_SS StdB_SS
Achtung!
Stecker niemals umgekehrt
oder mit Gewalt einstecken.
VCC GND
D- D+
1
J2:
SATA 15 Pin
Power Anschluss
vom PC-Netzteil
