13. Technical Data Delhi 124

The Delhi 124, certified in compliance with DIN-EN 13240 and Art. 15 a B-VG (Aus-
tria), can only be operated when the fire box is closed; more than one device can be
connected to the chimney.
VKF-No.: 23311
The following data applies to the chimney characteristics in accordance with
EN 13384-1 /-2
Combustion Values*
Nominal Thermal Output
Efficiency
Particulate
CO content at 13% O
2
Waste Gas Mass Flow Rate
Waste Gas Outlet Temp.
Min. Supply Pressure at Nominal Thermal Output
Min. Required Combustion Air Volume
*Test bench performance and values
Depending on the insulation of the building, the nominal thermal output of 7 kW indi-
cated on 25 - 95 m² (subject to change).

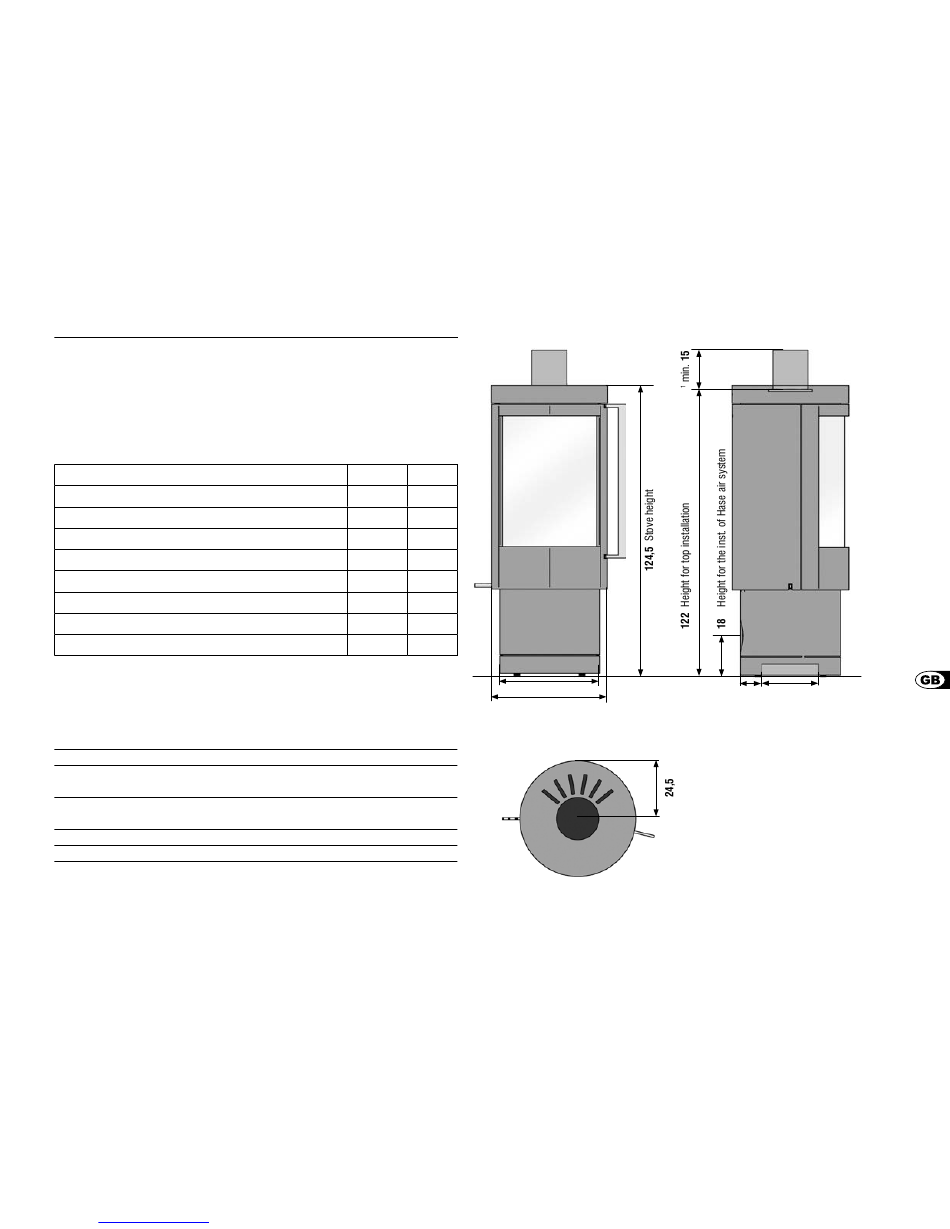

Dimensions:
Stove
Fire box
Weight:
¹ Vertical flue pipe length
Flue pipe diameter:
Pipe diameter of Hase ventilation system**
** For separate air supply in low-energy houses and insufficient combustion air supply
in the room where the stove is installed
