EN

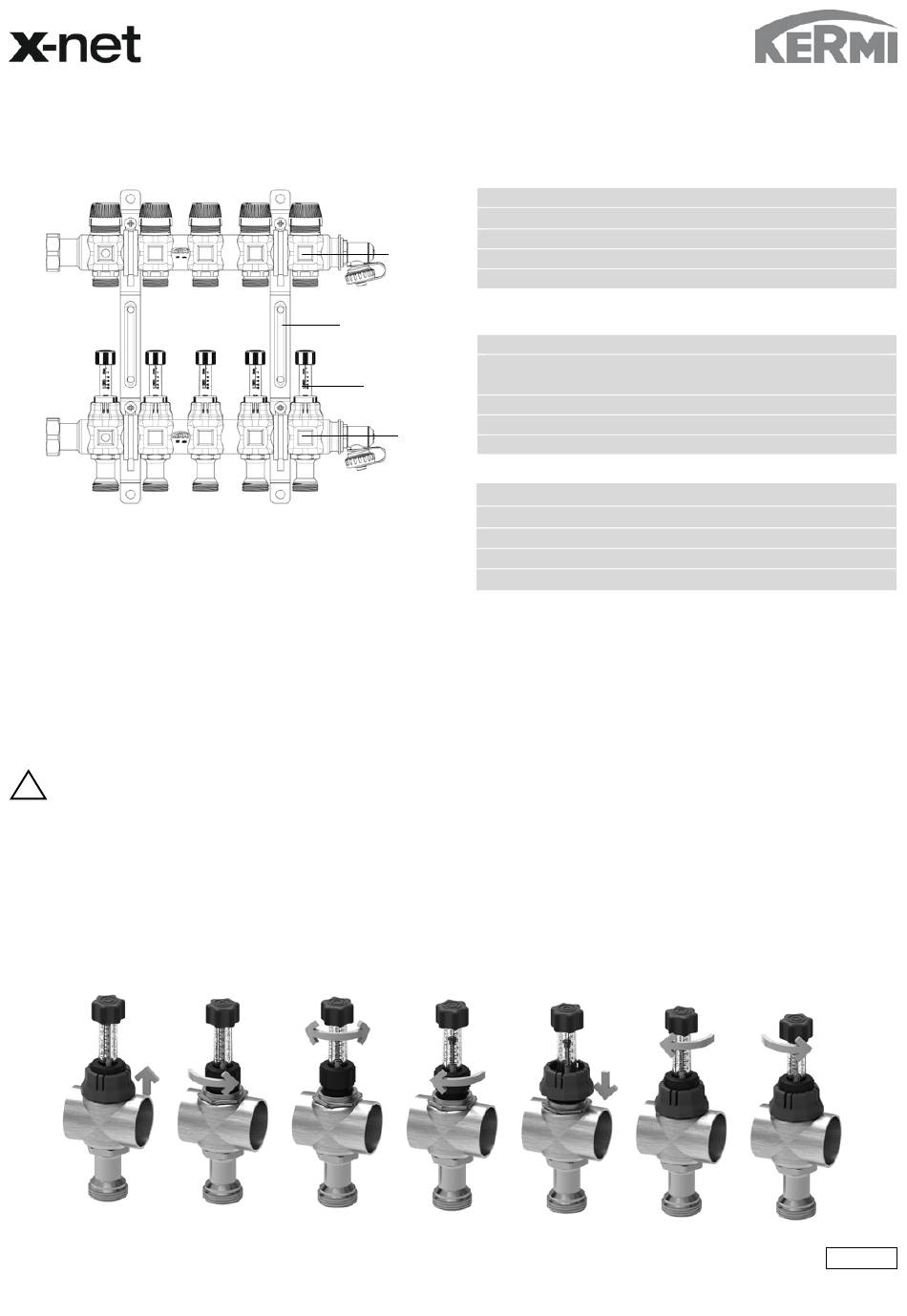

x-net comfort manifold 1"
with flowmeter
1. Scope of delivery / Technical data
2. Safety
2.1 Proper use
The heating circuit manifold can be installed either horizontally or vertically. During use, the permissible operating
temperature (max. 70°C) and the permissible operating pressure (max. 6 bar) must be observed. Fill pipes completely
with water (heating water in accordance with VDI 2035).
2.2 Dangers
!
To adjust the flow of water, never use a pliers of other tool.
2.3 Installation
Only properly trained personnel are allowed to install and operate the heating circuit manifold. Tradesmen must read,
understand and heed the operator manual (especially the chapter "Safety"). The manufacturer assumes liability as
required by law only under the above conditions.
3. Commissioning
Kermi GmbH • Pankofen-Bahnhof 1 • 94447 Plattling • Phone (09931) 501-0 • www.kermi.com •
Contents:
1 Flow section with flowmeter
1 Return section with thermostat inserts
Return
2 Wall mount, incl. screws and anchors
1 Set of heating circuit identification labels
Wall mount
Manifold technical data:
Outlets with G 3/4 external thread and inner taper to
Flowmeter
DIN EN 16313
Connection: Union nut, 1" internal thread, flat-sealing
Thermostatic valve M30x1.5
Flow
Fill and drain valves, 1/2"
Flowmeter technical data:
Permissible operating temperature: -10 °C to 70 °C
Max. operating pressure: 6 bar
kvs value: 1.23 m³/h
Measuring range: 0.5 to 5 l/min
Operator Manual
