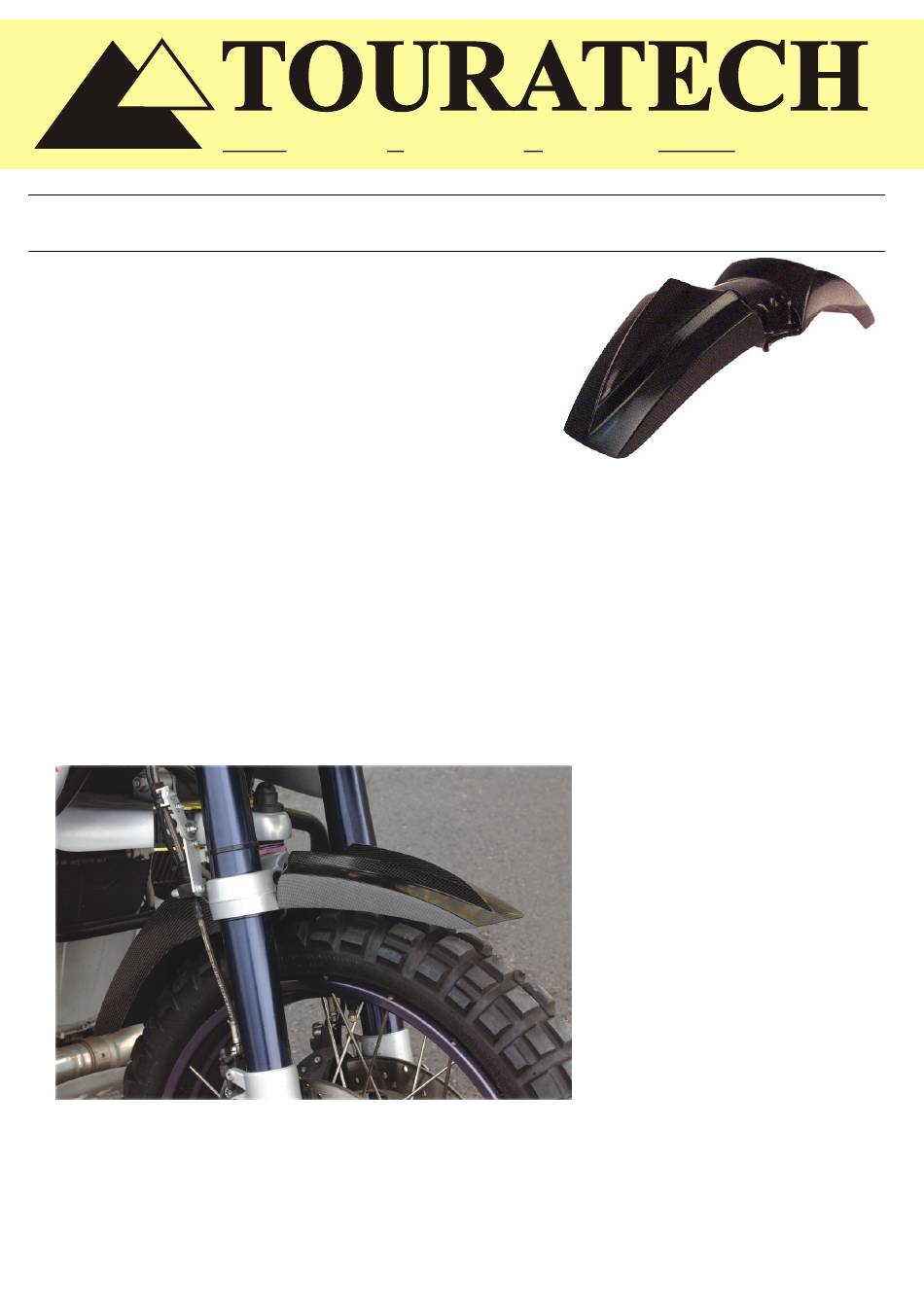

Touratech 01-040-1005-0 Montage Seite 2

TOURING RALLYE RACING
01-040-1005-0
Contains:
1 x Carbon fibre Front Fender R1150GS / Adventure
1. Removal of front wheel and stock front fender:
Please remove first the front wheel based on BMW instructions.
Remove then the speedo cable guides of the fender. Now remove the original front fender.
It is attached right and left close to the brake calibers as well as under the fork bridge.
2. Installation of Carbon Fibre Fender:
Carbon Fibre Front Fender can be installed now. Attach the fender with the two original screws
under the fork bridge.
3. Reinstallation of front wheel:
Set front wheel again between the forks and attach both brake calibers. Install then the front wheel
also following BMW instructions.
Check the tightness of all fasteners in regular intervals!
These instructions are at our current level of knowledge. Technical issues subject to change. Legal requirements do not exist.
Carbon Fibre Front Fender R1150 GS/ Adv
Installation:
TECHNOLOGY
Installation Instruction:
Note regarding speedo cable:
Approximately 10,5mm hole
needs to be drilled on the left
side of the carbon fibre fender
where the speedo cable guide
can be attached just as on the
original fender!
