Connection of a secondary indicating instrument

Install the power supply to the second instrument in the same way as for
the first one (see page 38). The power supply of both indicating instru-
Main indicating instrument
Secondary indicating instrument
INSTALLATION
ments must be switched on at
the same time.
The sensor can be connected
to any of both indicating instru-
ments

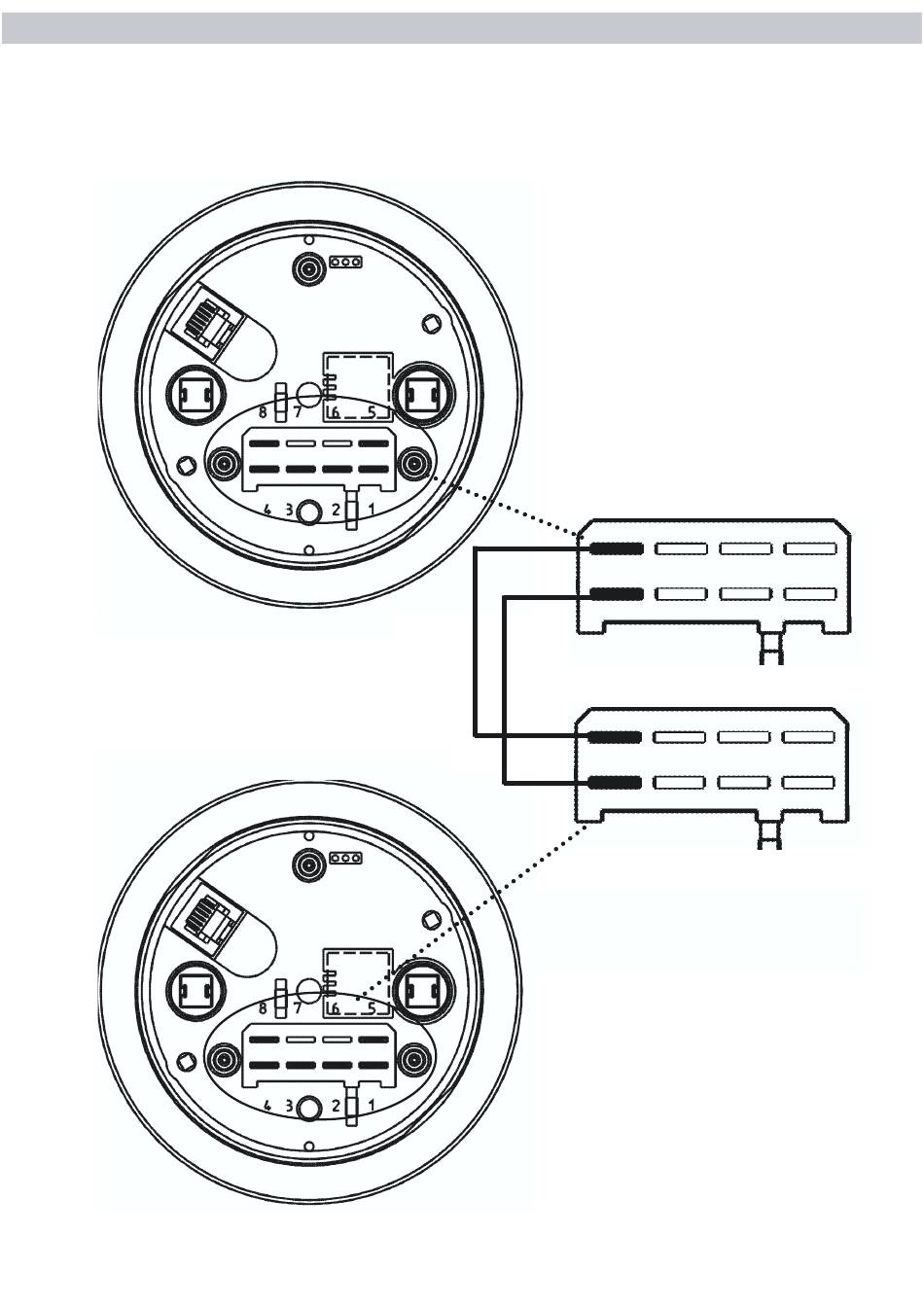

The connection between main
indicator and secondary indi-
cator is made as shown be-
low.
Perform the automatic com-
pensation „CAL“ on one indi-
cating instrument only.
This also applies for later in-
stallation of a second or a third
instrument.
