Temporarily install the sensor and make the first compensation run. A
different location must be selected If several trials are not successful.
After finding an adequate location fix the sensor with three brass or
stainless steel screws to allow a rotation of the sensor for adjustment at
a later time (see page 33).
Mark the location of the sensor with the supplied warning label.

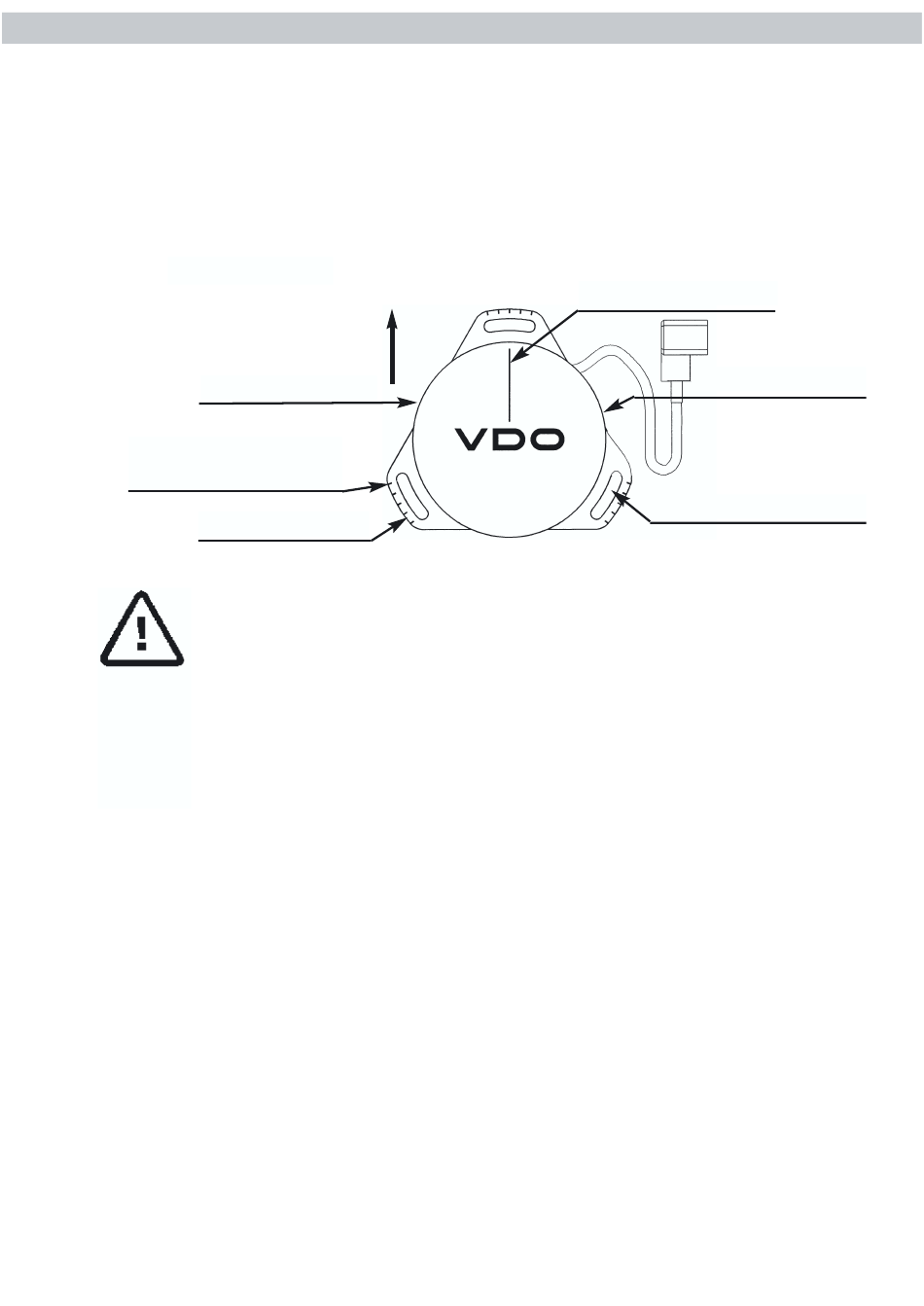

View from above:
Max. height 40 mm
Angle marks for sensor
positioning (5°)
Max. dia. 120 mm
Never use steel screws for the installation (magnetism).
The sensor must be installed on a horizontal surface in hori-
zontal position.
The marking bar must be parallel to the ship axis, directed to
the bow.
The automatic compensation must be repeated after chan-
ging the cargo.
INSTALLATION
bow
Marking bar ship axis
Max. dia. 90 mm
Hole circle dia. 105 mm
37
