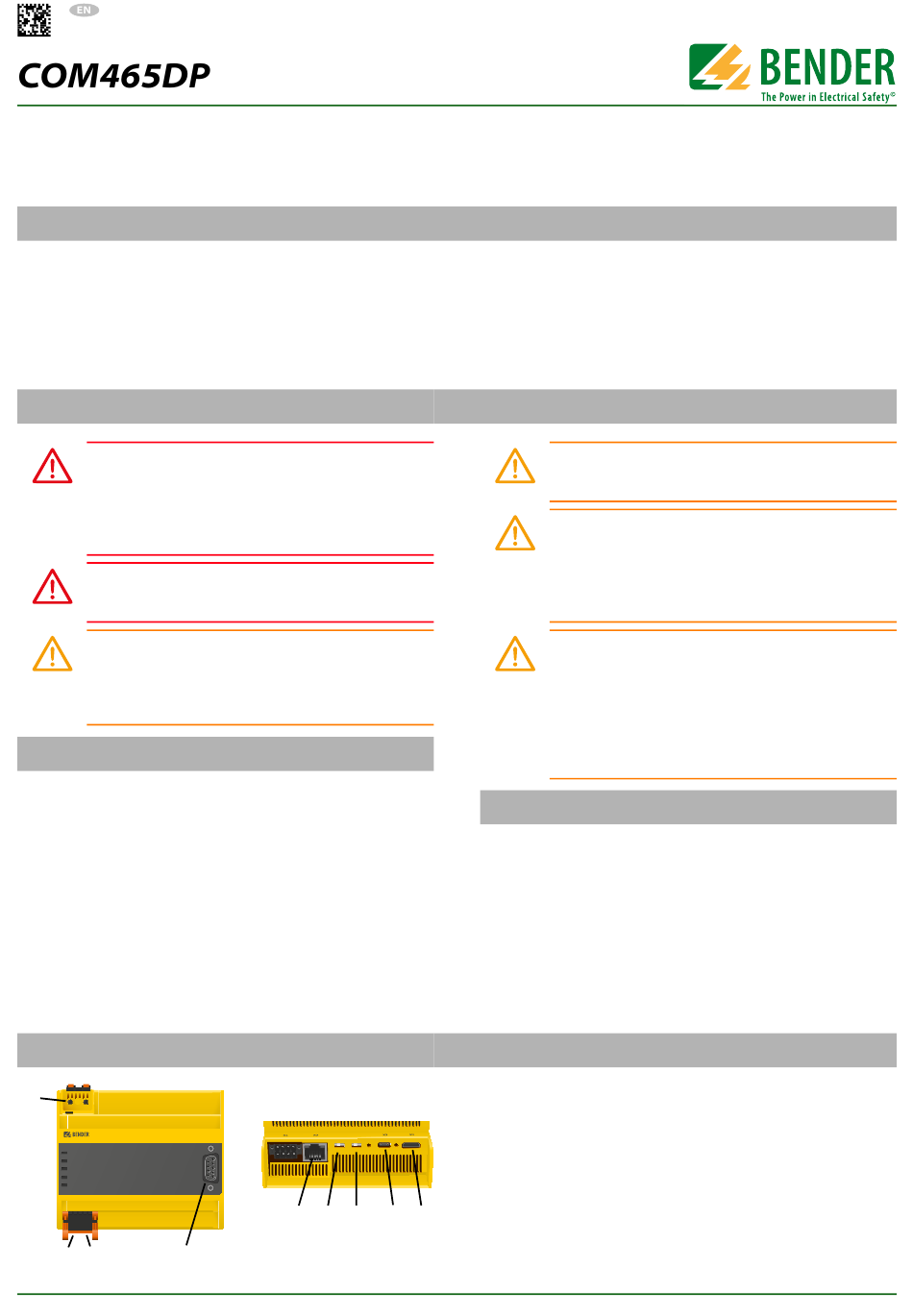

Quickstart "Installation and connection"
Condition Monitor with integrated gateway Bender system/PROFIBUS DP/Ethernet TCP/IP
This quickstart does not replace the operating manuals. The manuals are available in the download area of our homepage. Make sure that the per-
sonnel has read this manuals and understood all instructions relating to safety.
1. Intended use
The gateway connects the following devices to Ethernet, TCP/IP and
PROFIBUS DP networks:
– Bender devices with BMS bus or BCOM interface
– Bender universal measuring devices PEM... with
Modbus RTU or Modbus TCP.
The COM465DP converts alarms, measured values and statuses into
Modbus TCP protocols and HTTP.
2. Safety instructions
Risk of fatal injury from electric shock!
Parts of the system are live. During installation and con-
nection:
DANGER
►
Do not touch parts of the system.
►
Disconnect the system from the power supply and
protect against accidental switch-on.
Risk of fatal injury and destruction due to moisture!
►
The device must be installed so that it is protected
against humidity.
DANGER
Consider the installation site
►
When installing the device, please take into consider-
ation that the device can only be used in locations
WARNING
which are protected from unauthorised entry, such as
in a switchboard cabinet for example.
3. Scope of delivery
Included within the scope of delivery is:
• The COMTRAXX® COM465DP gateway
• A printed quickstart
• The manuals "COM465IP/COM465DP", "COMTRAXX" and
"BCOM" as PDF files. To download the manuals, refer to:
http://www.bender.de > Service & support >
Download > Operating manuals
• The configuration file for PROFIBUS DP: "BEND0F27.gsd"
For the current version of the file, refer to:
http://www.bender.de > Service & support >
Download > Software
Downloading software is available to registered users only.
Please register with your e-mail address.
5. Connecting the device
1
A1/+ A2/-
COM465DP
COMTRAXX
ON PROFIBUS DP
PROFIBUS
ETHERNET/IP
MODBUS/RTU
BMS
X1 X2 X3
3 4 2
COM465DP_D00216_01_Q_DEEN/01.2016
OFF ON OFF ON
R R
BMS
MB
X4
5 6 7
This allows a connection to Modbus TCP networks as well as visual-
isation and evaluation using standard web browsers.
The COM465DP gateway transfers information from the BMS bus
and the BCOM interface to the PROFIBUS DP and viceversa.
Operating and configuring is only possible via the web user inter-
face.
Risk of destruction due to incorrect mains voltage
WARNING
Malfunction due to double address assignment!
Assigning addresses that are already used by existing de-
vices on the bus systems concerned may cause serious
WARNING
malfunctions.
Risk of duplicate addresses if BCOM system name is
not changed.
The factory setting for the system name on all Bender de-
WARNING
vices is "SYSTEM". If several systems are established in the
same network, there is a risk that addresses will be as-
signed more than once.
4. Installing the device
The device is designed for:
• DIN rail mounting according to IEC 60715 or
• Screw mounting with 2 x M4
For UL applications, the following must be observed:
– Maximum ambient temperature: 55°C
– Only 60/75 °C copper wires must be used
8 9
►
Refer to the nameplate for the permissible mains
voltage.
►
Ensure correct address setting and termination of
the COM465DP.
►
Therefore always assign a new BCOM system
name.
