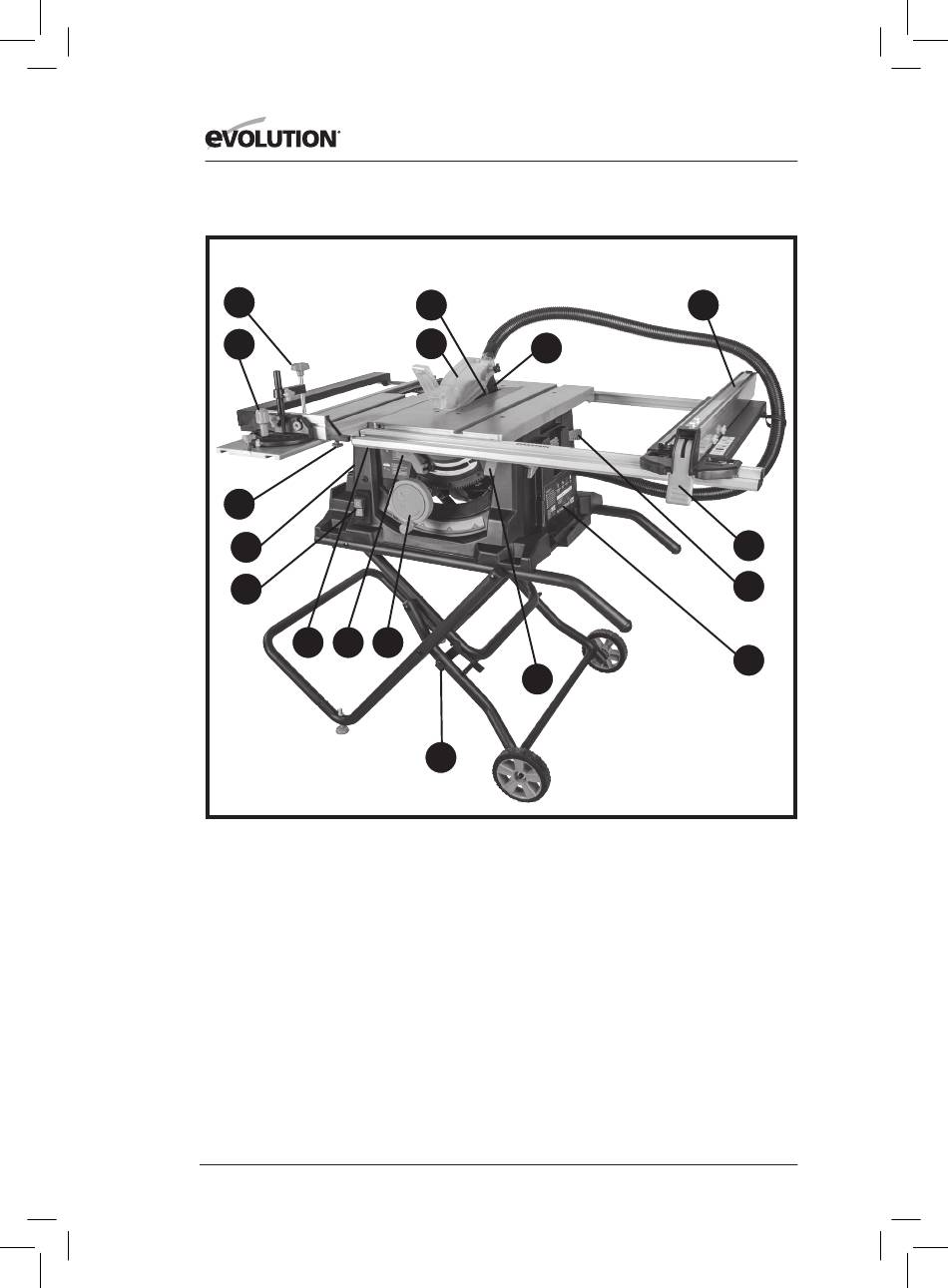

MACHINE OVERVIEW

B
C
N
Q
A
P L K
A. ON/OFF SWITCH
B. HOLD DOWN CLAMP
C. SLIDING MITRE FENCE /
MATERIAL PUSHER
D. BLADE (NOT VISIBLE)
E. RIVING KNIFE (NOT VISIBLE)
F. BLADE GUARD
G. RIP FENCE
H. RIP FENCE LOCKING HANDLE
I. PUSH STICK STORAGE
www.evolutionpowertools.com
D
F
E
O
M
J. SERIAL NUMBER / RATING LABEL
K. RISE AND FALL / BEVEL ADJUSTMENT
HAND WHEEL
L. BEVEL LOCKING LEVER
M. LATCHING PIN
N. SLIDING CARRIAGE UNLOCKING PIN
O. RIGHT HAND SIDE TABLE EXTENSION
UNLOCKING LEVER
P. LEFT HAND SIDE TABLE EXTENSION
UNLOCKING PINS - 1 FRONT, 1 REAR
