Quick Start Guide
Step 1
Design Your Fence
Have the local utility companies mark your underground lines. On a sheet of
paper, draw your house and yard. Draw a line around your property that repre-
sents the containment area for your dog.
Step 2
Install the Wall-mount transmitter
Most people find that the inside of an exterior
wall of a garage or basement is ideal. From the
sample layouts, you can see the twisted wire
running from the house attaches directly to the
transmitter.
Step 3
Lay Out the Fence Wire
Run the containment wire around the property as out-
lined in your plan.
Step 4
Final Connections
Splice the containment loop wires to the twisted wire using the supplied water-
proof splices. Connect the other end of the twisted wire to the wall-mount
transmitter. Plug in the AC adapter, connect it to the transmitter, and turn it on.
The green light should illuminate on the transmitter indicating a successful

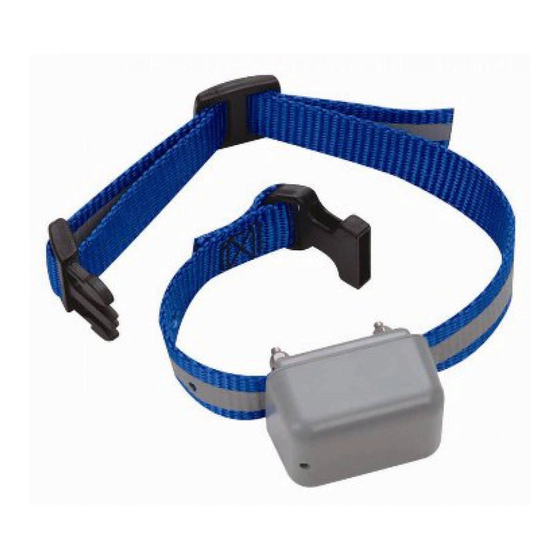

loop. Charge your collar receiver by placing it in the receiver cradle located on
top of the transmitter.
2100268-1
Rechargeable Containment System
Boundary Wire
To wall-mount transmitter
1.
SD-2100E
3m
90Þ
3m
Boundary Wire
Splice
