Well-contact Plus
01581-01586
01581 - Home automation control module with four pushbuttons and actuator
with N/O relay output 16 A 120-240 V~ 50/60 Hz, KNX standard, RGB LED
location in the dark with brightness control, to be completed with inter-
changeable half-buttons: 1 or 2 module Eikon, 2 module Arké or Plana.
01586 - Home automation control module with six pushbuttons and actuator
with N/O relay output 16 A 120-240 V~ 50/60 Hz, KNX standard, RGB LED
location in the dark with brightness control, to be completed with inter-
changeable half-buttons: 1 or 2 module Eikon, 3 module Arké or Plana.
The device is equipped with independent pushbuttons that can be used as ON/OFF controls
and for controlling roller shutters and lights. It is equipped with a relay actuator for lights control
and RGB LEDS with configurable.
FEATURES.
• Rated supply voltage from bus: 30 Vdc. SELV
• Current draw from the bus: 7.5 mA
• Red LED and configuration button
• Relay output (C, NO) for lights control
• Operating temperature: -5°C to +45°C (indoor use)
• Ingress protection rating: IP20
• Art. 01581:
- 4 independent pushbuttons
- 4 RGB LEDs with configurable colour
• Art. 01586:
- 6 independent pushbuttons
- 6 RGB LEDs with configurable colour
CONTROLLABLE LOADS.
• Relay output (controllable loads at 120 - 240 V~, NO contact):
- resistive loads
: 16 A (20,000 cycles);
- incandescent lamps
: 8 A (20,000 cycles);
- fluorescent lamps
: 0.5 A (20,000 cycles);
- energy saving lamps
: 100 W-240 V~, 30 W-120 V~ (20,000 cycles);
- LED lamps
: 100 W-240 V~, 30 W-120 V~ (20,000 cycles);
- electronic transformers
: 4 A (20,000 cycles);
- cos ø 0.6 motors: 3.5 A (100,000 cycles).

OPERATION.

The device can be used in two different modes:
• Functions with independent pushbuttons:
- Send ON, OFF, timed ON and force output status commands
- Switch ON and OFF on the up edge and on the down edge
- Call up a scenario with a short press of the pushbutton; call up or a second scenario or
save a scenario with a long press
- Send one or two values by a short or long press of the pushbutton
- Roller shutter control
- Dimmer control
- Toggle
• Possible functions of the buttons with 2 associated channels:
- ON and OFF switch
- Dimmer control
- Roller shutters control
For each of these three functions, the control direction can be reversed.
For the RGB LEDs, you can set:
- the colour each individual LED, either by choosing from a list or by setting the RGB coor-
dinates using the ETS software
- brightness or flashing also using the ETS software
The relay output can be used in two different modes:
• Switch:
- Possibility to set the default status of the output as normally open or normally closed
- Set a delay time for activation and deactivation
- Possibility to block the output for maintenance operations
- Possibility to force the status of the output
- Control logic setting
- Possibility to set behaviour on power-up and power-down
- Save and call up scenarios
• Staircase lights:
- Possibility to set the output as NO or NC
- Set activation time
- Possibility to block the output for maintenance operations
- Set prior notice time
- Possibility to force the status of the output
- Possibility to set behaviour on power-up and power-down
- Possibility to set the output to switch off on receipt of a message over the bus
49401158A0 04 1810

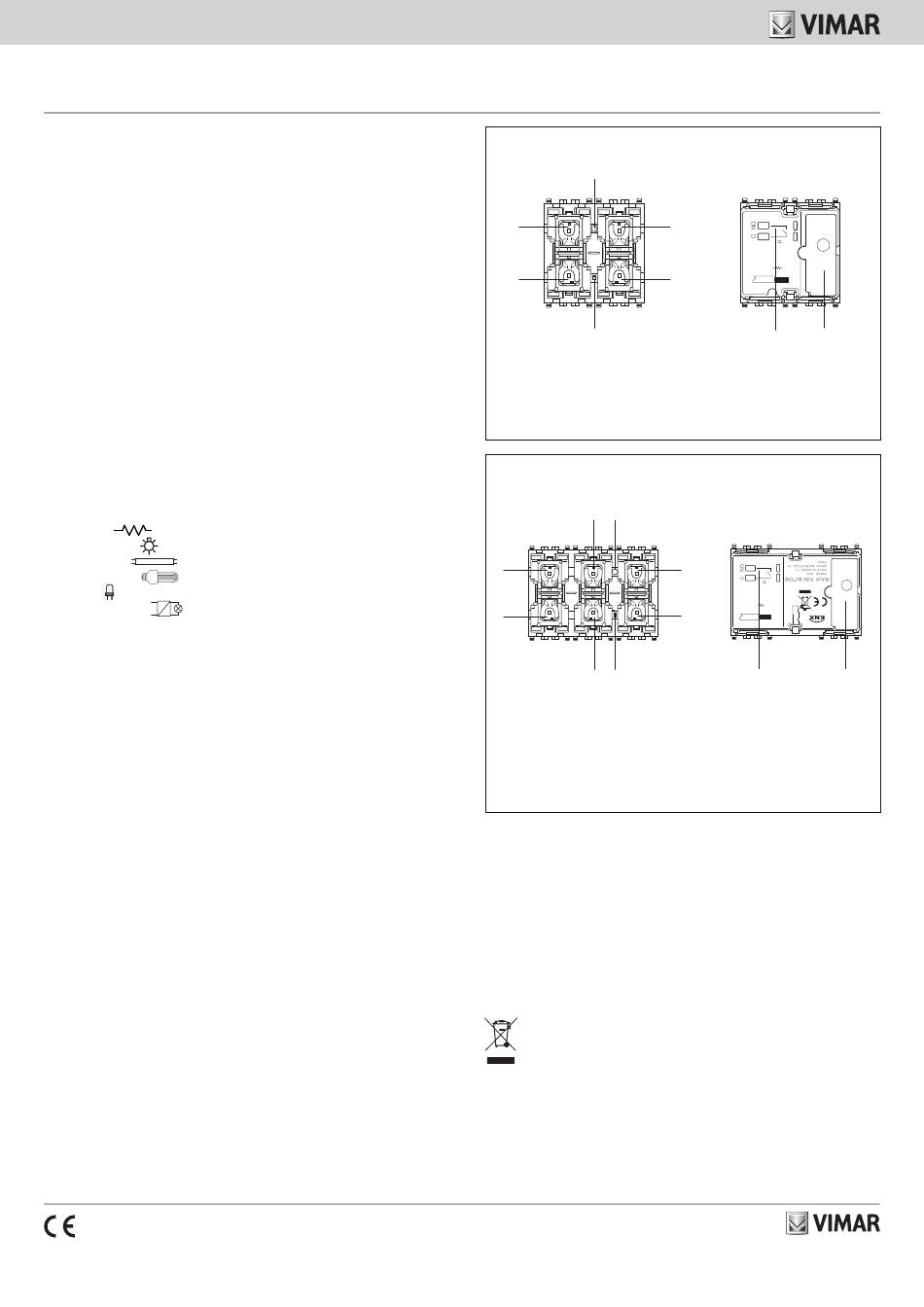

01581 - FRONT AND REAR VIEW
Configuration button
A
B
LED
Legend:
A: Button 1
B: Button 2
C: Button 3
D: Button 4
01586 - FRONT AND REAR VIEW
Configuration
C
button
A
B
D
LED
Legend:
A: Button 1
B: Button 2
C: Button 3
D: Button 4
E: Button 5
F: Button 6
CONFIGURATION.
The configuration of the device, physical address and parameters takes place through the ETS
software. All the updated ETS databases can be downloaded from the "Software" section
of the website www.vimar.com.
INSTALLATION RULES.
Installation should be carried out by qualified staff in compliance with the current regulations
regarding the installation of electrical equipment in the country where the products are installed.
The feeding circuit of the relay output must be protected against overloads by a device, fuse or
automatic circuit breaker, with rated current not higher than 16 A.
REGULATORY COMPLIANCE.
LV directive. EMC directive. Standards EN 60669-2-5, EN 50491.
WEEE - User information
If the crossed-out bin symbol appears on the equipment or packaging, this means
the product must not be included with other general waste at the end of its wor-
king life. The user must take the worn product to a sorted waste center, or return it
to the retailer when purchasing a new one. Products for disposal can be consigned
free of charge (without any new purchase obligation) to retailers with a sales area of
at least 400 m
, if they measure less than 25 cm. An efficient sorted waste collec-
2
tion for the environmentally friendly disposal of the used device, or its subsequent
recycling, helps avoid the potential negative effects on the environment and people's
health, and encourages the re-use and/or recycling of the construction materials.
C
120-240V~ 50/60 Hz
16A
6 mm
D
Terminals
Relay
NO, C
30 V Bus
E
120-240V~ 50/60 Hz
16A
F
6 mm
Relay
Terminals
NO, C
30 V Bus
