5 DESCRIPTION AND PROGRAMMABLE FUNCTIONS
The control panel has a MAIN MENU and two sub-menus called EXTENDED MENUS to customize the programming and the various system
functions.
Pressing the SELECT button several times in succession you can scroll through the menu displayed by the 7 LEDs to choose the desired function
(flashing LED correspondingly flashing) and change its functionality with the SET button (the LED becomes fixed with function enabled or, conversely, off
with function disabled).

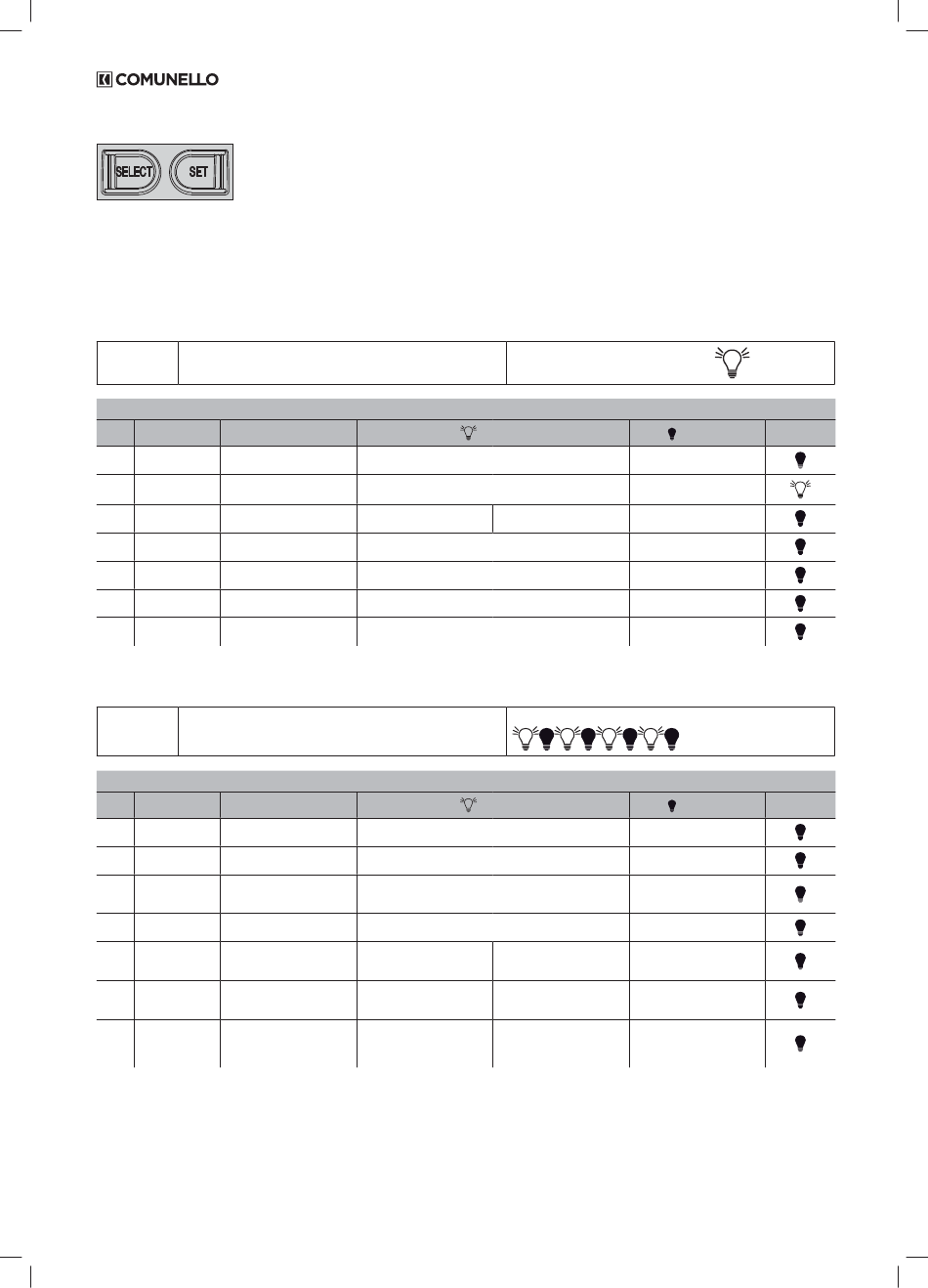

The first available menu is the MAIN menu summarized in Tab no. 2:
MAIN MENU • Press the SELECT button and select the desired function
from the main menu.
LIVEL 0 - MAIN MENU
LED FUNCTION DESCRIPTION
L1 DIR. Motor opening direction (inter-
nal view)
L2 STEP BY STEP Opening logic
L3 CODE TX Storage of remote controls
L4 CONDO Activate the "Condominium"
function
L5 MOTOR TIME Storage of the motor stroke
with slowdowns
L6 PAUSE TIME Automatic closing setting
L7 AUTO PROGRAM Self-learning of the stroke with
slowdowns
TAB.02
The Second menu is the one defined as EXTENDED 1 and to access the programmable functions follow the instructions given in Tab. 3:
EXTENDED • Press the SELECT button and scroll the LED menu until
MENU 1 you reach the LEV LED;
• Press SET once to access the EXTENDED menu 1.
LIVELLO 1 - EXTENDED MENU 1
LED FUNCTION DESCRIPTION
L1 PHOTOTEST Perform the photocell test
before each movement
L2 PEDESTRIAN Storage of the motor partial
TIME stroke with slowdowns
L3 STEP BY STEP 1 Open-Stop-Close-Stop (It
DOESN'T close after the pause
time in a partial opening phase)
L4 BRAKE Enabling of the electronic brake
L5 RELEASE STROKE Activation of the push in ope-
MAX FORCE/ ning for electric lock release
RELEASE STROKE
L6 SLAM LOCK MAX Activation of the push in closing
FORCE / SLAM for electric lock release
LOCK
L7 PREFLASH / PRE-FLASH/ COURTESY LIGHT
COURTESY LIGHT
TAB.03
22 COMUNELLO ®Copyright 2019 - All rights reserved
The LEV function LED stays on FIXED:
LED ON
Open to left
Open-Stop-Close-Stop (it closes after the pause time in a partial
opening phase)
TX PP TX P.PED
After the first one, the other inputs are ignored during the opening
and the pause time
Stored stroke
Automatic closing period stored
Memorized self-learning of the stroke
The LED of the LEV function FLASHES with this frequency
LED ON
Enabled function
Partial stroke of the motor stored
Disabled function
Enabled function
Enabled function at the max Enabled function - FORCE
FORCE trimmer
Enabled function at the max Enabled function - FORCE
FORCE trimmer
Pre-flashing function or 3 sec. of pre-flashing
courtesy light
LED OFF DEFAULT
Open to rights
Automatic (Open-Close)
Empty storage
Disabled function
30 seconds, without slowdown
(default)
Disabled function
Disabled function
LED OFF DEFAULT
Disabled function
10 seconds, without slowdown
(default)
Step-By-Step logic
Disabled function
Disabled function
Disabled function
3 min. activation of the lamp
