Seite 11

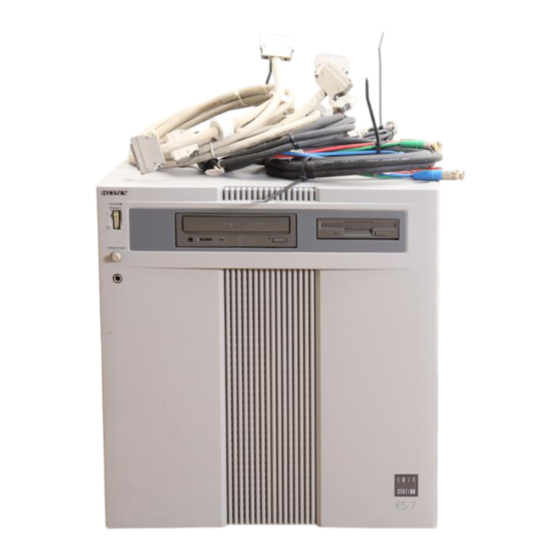

English Contents Overview ................ 11 Installation ..............12 Overview The ESBK-7054 Additional Memory Set is an expansion memory kit for the ES-7 EditStation . It is made up of two memory modules. Caution If the ESBK-7054 is installed incorrectly, personal injury or damage to peripheral items may occur due to fire, shock, or other accidental circumstances.
Installation This section explains the procedure for installing the two ESBK-7054 memory modules in the memory sockets of the ES-7 main unit. Warning • Always power off the ES-7 main unit before starting the installation operation. Installing the memory modules with the main unit’s power on risks fire and electric shock.
Seite 13
Remove the right panel. Remove the inside cover of the upper-right handle. (Continued)
Seite 14
Installation Install the memory modules in the empty sockets on the circuit board. The empty sockets are the ones closest to the handle mentioned above. Note When installing the memory modules, stand facing the right side of the main unit. In the following explanations, “left”...
Seite 15
2) Lock the memory module in place by pushing forward until the edges are locked by the locking tabs to the left and right. You will hear a click when they lock. You will hear a click when the edges of the memory module are locked in place by the locking tabs.
Seite 16
Installation Replace the cover removed in step 3. Replace the main unit right panel removed in step 2. Replace the top panel removed in step 1. Checking the Memory Size After installing the memory modules, use the following procedure to check the system memory size. Start the ES-7 self diagnostics software and open the SelfDiag window.
Seite 17
Français Sommaire Aperçu ................17 Installation ..............18 Aperçu L’ensemble de mémoire additionnel ESBK-7054 est un kit de mémoire extension pour l’EditStation ES-7, comprenant deux modules de mémoire. Attention Si l’ensemble ESBK-7054 est mal installé, des blessures physiques ou des dommages aux éléments périphériques pourront survenir à...
Seite 18
Installation Installation Cette section explique la procédure d’installation deux modules de mémoire ESBK-7054 dans les plots pour mémoire de l’unité principale ES-7. Avertissement • Toujours mettre l’appareil hors tension avant d’installer les modules de mémoire. Sinon, il pourrait y avoir un risque d’incendie ou de décharge électrique.
Seite 19
Retirer le panneau droit. Retirer le cache intérieur de la poignée supérieure droite. (à suivre)
Seite 20
Installation Installer les modules de mémoire dans les plots libres de la plaquette. Les plots libres sont les plots les plus proches de la poignée précitée. Remarque Pour l’installation des modules de mémoire, se tenir face au côté droit de l’unité principale. Dans l’explication qui suit, “gauche”...
Seite 21
2) Verrouiller le module de mémoire en place en le poussant en avant jusqu’à ce que ses extrémités soit bloquées par les ergots de blocage sur la droite et la gauche. Un déclic sera émis au verrouillage. Un déclic sera audible quand les extrémités du module de mémoire seront verrouillés en...
Installation Remettre en place le cache retiré à l’étape 3. Remettre en place le panneau droit de l’unité principale retiré à l’étape 2. Remettre en place le panneau supérieur retiré à l’étape 1. Contrôle de la capacité de mémoire Après l’installation des modules de mémoire, procéder comme suit pour contrôler la capacité...
Seite 23
Klasse B besitzt. Inhaltsverzeichnis Kurzbeschreibung ............23 Installation ..............24 Kurzbeschreibung Die ESBK-7054 Additional Memory Set ist ein aus zwei Modulen bestehendes RAM-Kit für die Installation in die EditStation™ ES-7. Vorsicht Bei unsachgemäßer Installation des ESBK-7054 besteht die Gefahr von Verletzungen sowie Schäden an Peripherieausrüstungen aufgrund von Brand, elektrischem...
Seite 24
Installation Installation Dieser Abschnitt erklärt die Verfahren für die Installation der zwei RAM-Module ESBK-7054 in die Steckfassungen der ES- Vorsicht • Das Gerät muß vollständig ausgeschaltet sein, bevor Sie die RAM-Module einbauen. Andernfalls ist elektrischer Schlag und Brandgefahr die Folge.
Seite 25
Entfernen Sie die rechte Seitenabdeckung. Entfernen Sie die Innenabdeckung des rechten oberen Griffs. (bitte wenden)
Seite 26
Installation Setzen Sie die RAM-Module in die freien Steckfassungen auf der Leiterplatte. Die freien Fassungen liegen dem oben erwähnten Griff am nächsten. Hinweis Blicken Sie von rechts auf die EditStation. In den nachfolgenden Beschreibungen bezieht sich „links“ und „rechts“ auf eine Person, die von rechts auf die EditStation blickt.
Seite 27
2) Drücken Sie das RAM-Modul in aufrechte Stellung, bis es sicher einrastet. Hörbares Einrasten bei sicherer Verriegelung. 3) Wiederholen Sie Schritt 1) und 2) zur Installation des zweiten RAM-Moduls in die noch freie Fassung. (bitte wenden)
Seite 28
Installation Bringen Sie die in Schritt 3 entfernte Abdeckung wieder Bringen Sie die in Schritt 2 entfernte rechte Seitenabdeckung wieder an. Bringen Sie die in Schritt 1 entfernte obere Abdeckung wieder an. Prüfen des Arbeitsspeichers Prüfen Sie nach der Installation die neue Speicherkapazität wie folgt.
Seite 29
Italiano Indice Presentazione ..............29 Installazione ..............30 Presentazione L’Additional Memory Set ESBK-7054 è un kit di espansione memoria per l’EditStation™ ES-7. Esso è costituito da due moduli di memoria. Attenzione Se l’ESBK-7054 non viene installata correttamente, ne possono risultare lesioni alle persone o danni alle periferiche dovuti a incendi, scosse o altre cause accidentali.
Installazione Installazione Questa sezione descrive il procedimento per l’installazione dei due moduli di memoria ESBK-7054 negli zoccoli per i moduli di memoria dell’unità principale ES-7. Avvertimento • Spegnere sempre l’unità principale ES-7 prima di iniziare il procedimento di installazione. L’installazione di moduli di memoria a unità...
Seite 31
Rimuovere il pannello destro. Rimuovere il coperchio interno dell’impugnatura in alto a destra. (continua)
Seite 32
Installazione Installare i moduli di memoria negli zoccoli vuoti sulla scheda. Gli zoccoli vuoti sono quelli più vicini all’impugnatura sopra menzionata. Nota Quando si installano i moduli di memoria, mettersi di fronte al lato destro dell’unità principale. Nelle seguenti spiegazioni, “sinistra” e “destra” si riferiscono alla vista che si ha quando ci si trova in questa posizione.
Seite 33
2) Bloccare il modulo di memoria in posizione spingendolo in avanti fino a quando i bordi vengono bloccati dalle linguette di bloccaggio a sinistra e a destra. Quando essi si bloccano sarà udibile uno scatto. Sarà udibile uno scatto quando i bordi del modulo di memoria vengono bloccati in posizione dalle...
Seite 34
Installazione Rimettere a posto il coperchio rimosso al punto 3. Rimettere a posto il pannello destro dell’unità principale rimosso al punto 2. Rimettere a posto il pannello superiore rimosso al punto 1. Controllo della dimensione di memoria Dopo aver installato i moduli di memoria, usare il seguente procedimento per controllare la dimensione di memoria del sistema.
