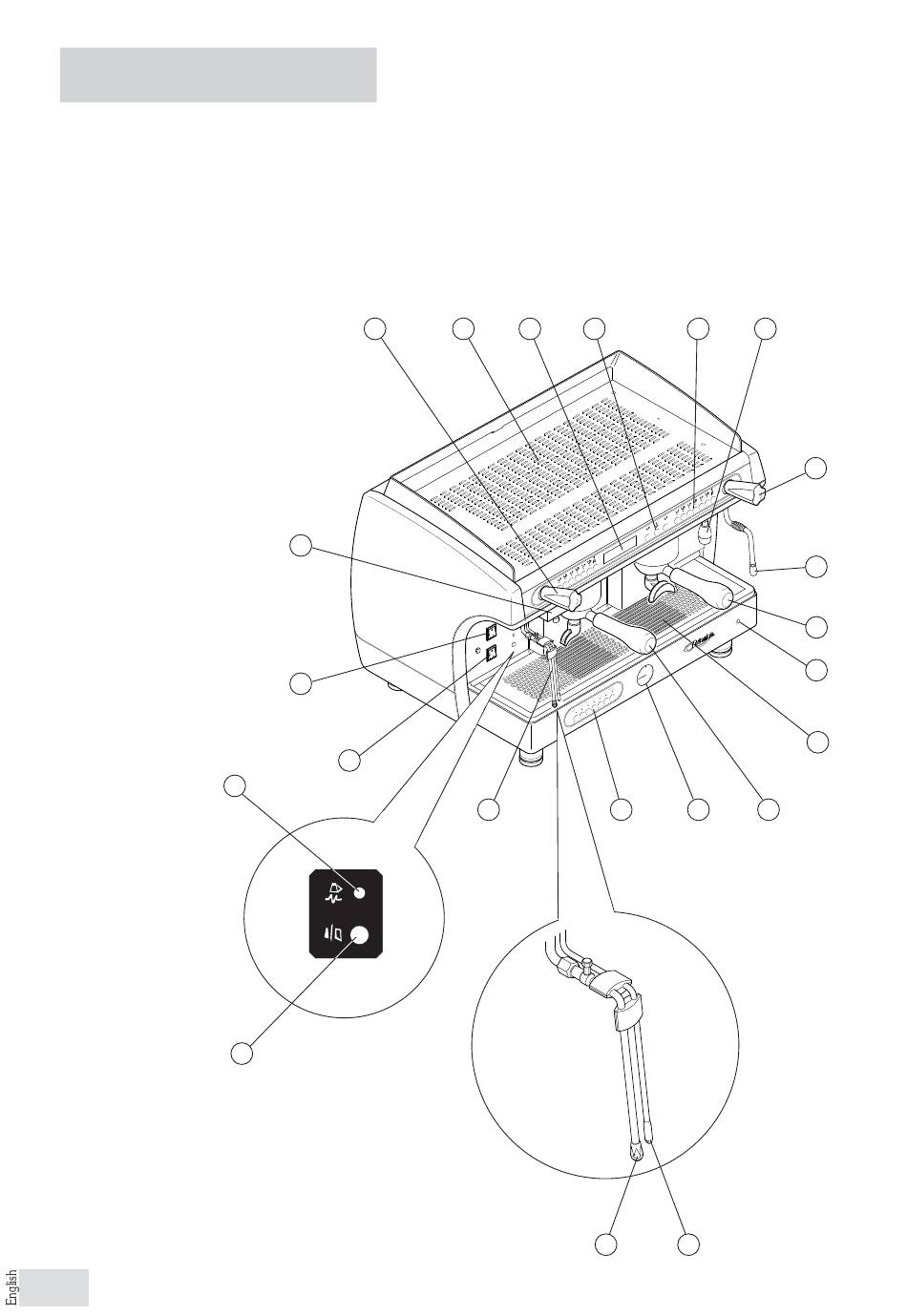

1. achine description
1. Display
2. Manual coffee dispensing buttons and hot water dispensing
3. Push button for coffee selections and programming
4. Hot water nozzle
5. Hot water knob
6. Steam nozzle
7. Filter holder
8. Programming key
9. Cup holding grille
10. Boiler / pump pressure gauge
11. DS - Drink Selection / LCL - Milk Coffee Milk
12. ASD - Automatic Steamer Device
13. Machine ignition switch
14. Cup heater switch
15. Cappuccino maker
16. Steam knob
17. Cup heater surface
18. ASD steam nozzle
19. ASD temperature probe
20. Cup heater on light
21. Machine on indicator light
