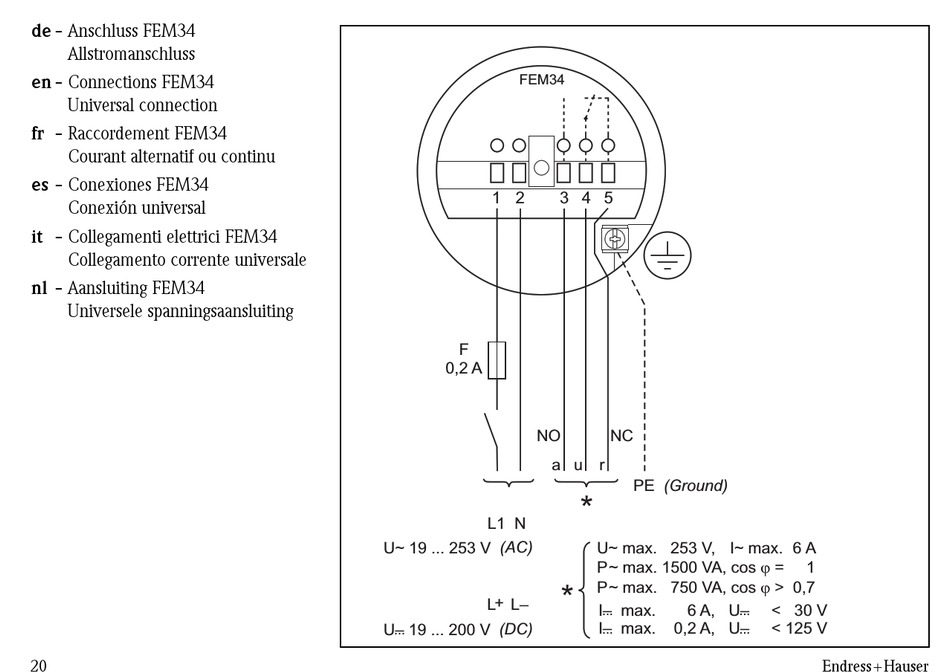

de - Anschluss FEM34
Allstromanschluss
en - Connections FEM34
Universal connection
fr - Raccordement FEM34
Courant alternatif ou continu
es - Conexiones FEM34
Conexión universal
it - Collegamenti elettrici FEM34
Collegamento corrente universale
nl - Aansluiting FEM34
Universele spanningsaansluiting
20
FEM34
1 2
3 4 5
F
0,2 A
NO
a
L1 N
U~ 19 ... 253 V
(AC)
*
L + L–
U– 19 ... 200 V
...
(DC)
NC
u r
PE (Ground)
*
U~ max. 253 V, I~ max. 6 A
P~ max. 1500 VA, cos
P~ max. 750 VA, cos
...
...
I– max.
6 A, U–
I– max.
...
0,2 A, U–
...
j
=
1
j
> 0,7
< 30 V
< 125 V
