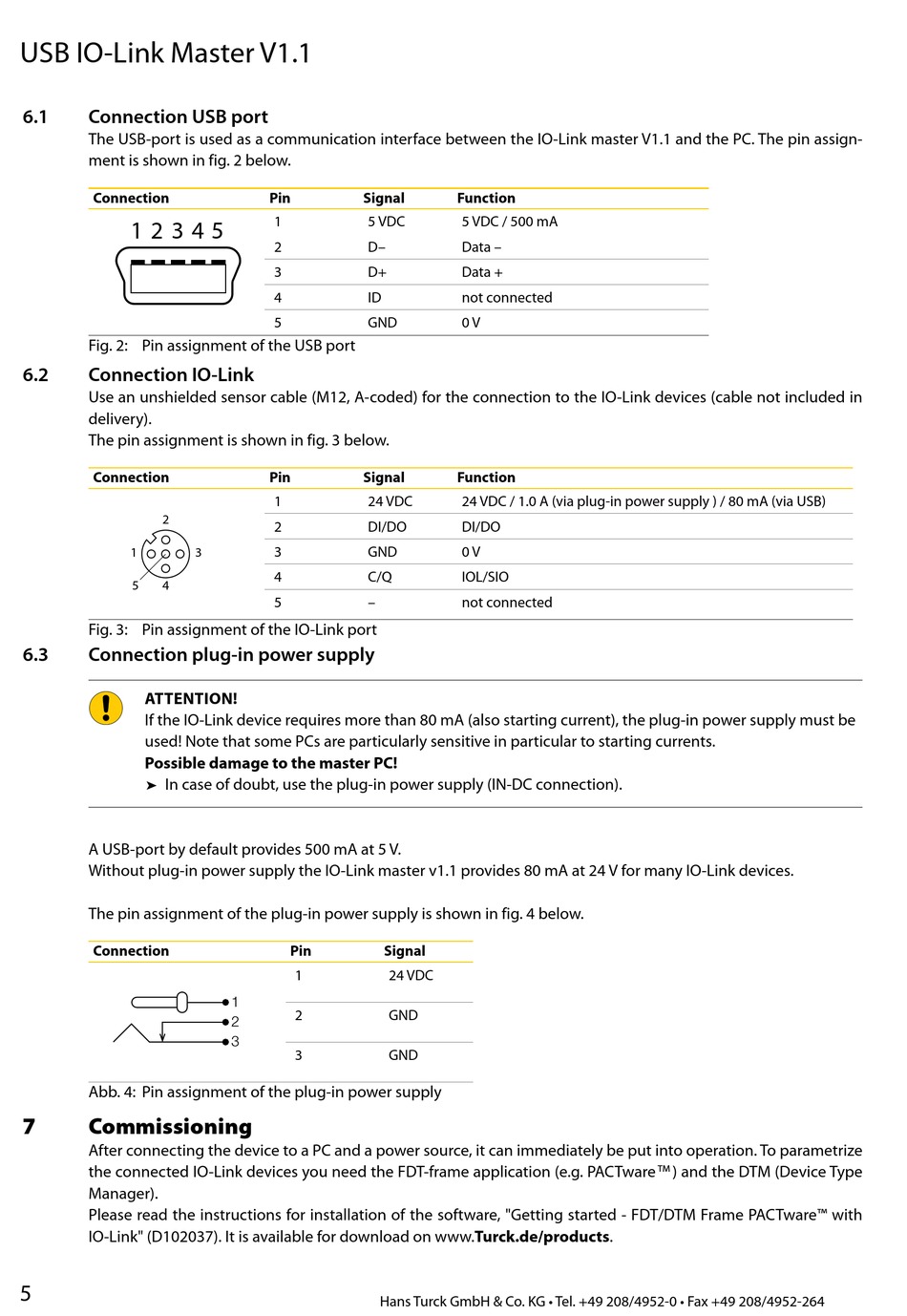

USB IO-Link Master V1.1
6.1
Connection USB port
The USB-port is used as a communication interface between the IO-Link master V1.1 and the PC. The pin assign-
ment is shown in fig. 2 below.
Connection
1 2 3 4 5
Fig. 2: Pin assignment of the USB port
6.2
Connection IO-Link
Use an unshielded sensor cable (M12, A-coded) for the connection to the IO-Link devices (cable not included in
delivery).
The pin assignment is shown in fig. 3 below.
Connection
2
1
5
4
Fig. 3: Pin assignment of the IO-Link port
6.3
Connection plug-in power supply
ATTENTiON!
If the IO-Link device requires more than 80 mA (also starting current), the plug-in power supply must be
used! Note that some PCs are particularly sensitive in particular to starting currents.
Possible damage to the master PC!
In case of doubt, use the plug-in power supply (IN-DC connection).
➤
➤
A USB-port by default provides 500 mA at 5 V.
Without plug-in power supply the IO-Link master v1.1 provides 80 mA at 24 V for many IO-Link devices.
The pin assignment of the plug-in power supply is shown in fig. 4 below.
Connection
Abb. 4: Pin assignment of the plug-in power supply
7
commissioning
After connecting the device to a PC and a power source, it can immediately be put into operation. To parametrize
the connected IO-Link devices you need the FDT-frame application (e.g. PACTware
Manager).
Please read the instructions for installation of the software, "Getting started - FDT/DTM Frame PACTware™ with
IO-Link" (D102037). It is available for download on www.Turck.de/products.
5
Pin
Signal
1
2
3
4
5
Pin
Signal
1
2
3
3
4
5
Pin
1
1
2
2
3
3
Function
5 VDC
5 VDC / 500 mA
D–
Data –
D+
Data +
ID
not connected
GND
0 V
Function
24 VDC
24 VDC / 1.0 A (via plug-in power supply ) / 80 mA (via USB)
DI/DO
DI/DO
GND
0 V
C/Q
IOL/SIO
–
not connected
Signal
24 VDC
GND
GND
