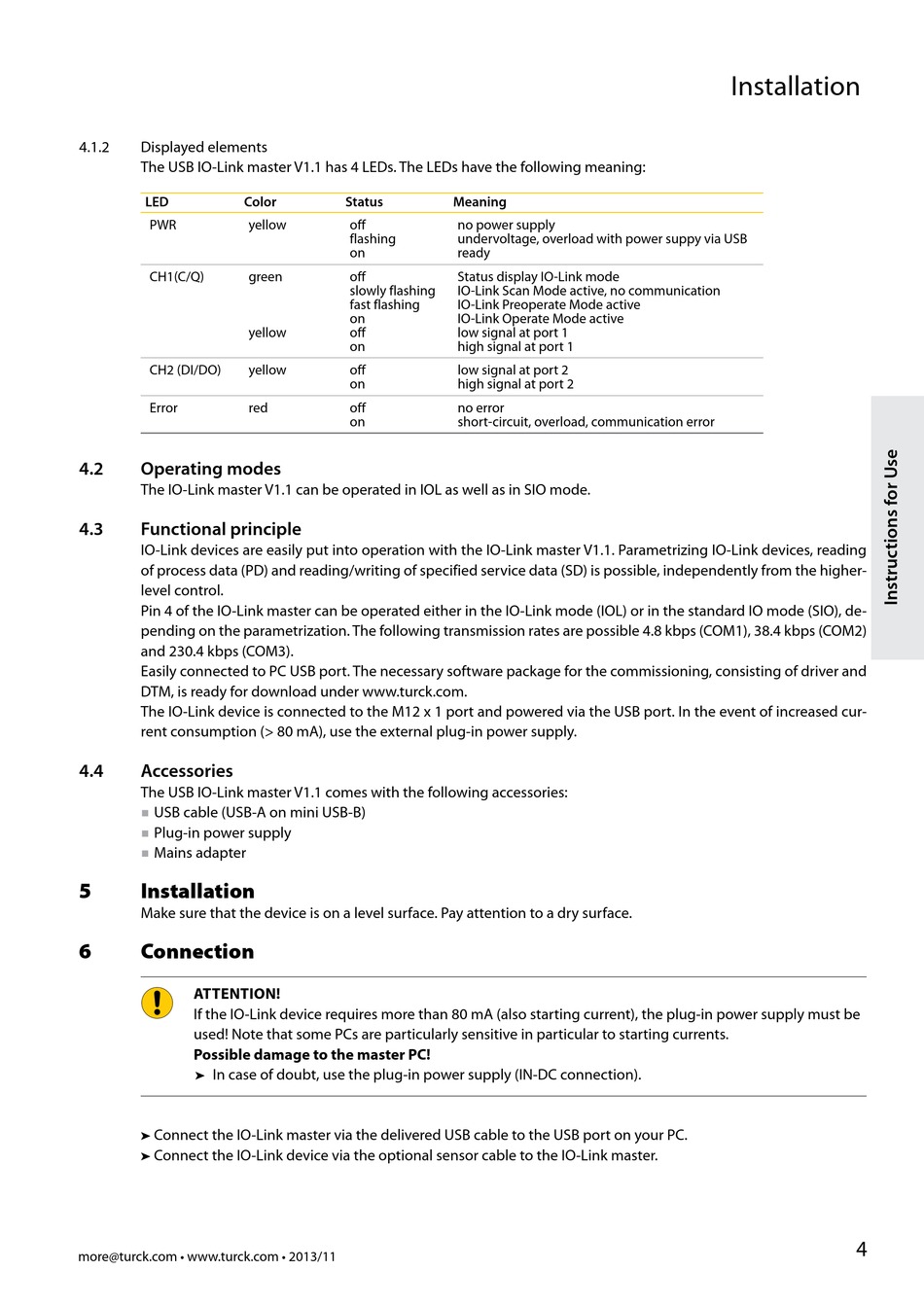

4.1.2
Displayed elements
The USB IO-Link master V1.1 has 4 LEDs. The LEDs have the following meaning:
LED
Color
PWR
yellow
CH1(C/Q)
green
yellow
CH2 (DI/DO)
yellow
Error
red
4.2
Operating modes
The IO-Link master V1.1 can be operated in IOL as well as in SIO mode.
4.3
Functional principle
IO-Link devices are easily put into operation with the IO-Link master V1.1. Parametrizing IO-Link devices, reading
of process data (PD) and reading/writing of specified service data (SD) is possible, independently from the higher-
level control.
Pin 4 of the IO-Link master can be operated either in the IO-Link mode (IOL) or in the standard IO mode (SIO), de-
pending on the parametrization. The following transmission rates are possible 4.8 kbps (COM1), 38.4 kbps (COM2)
and 230.4 kbps (COM3).
Easily connected to PC USB port. The necessary software package for the commissioning, consisting of driver and
DTM, is ready for download under www.turck.com.
The IO-Link device is connected to the M12 x 1 port and powered via the USB port. In the event of increased cur-
rent consumption (> 80 mA), use the external plug-in power supply.
4.4
Accessories
The USB IO-Link master V1.1 comes with the following accessories:
■
USB cable (USB-A on mini USB-B)
■
Plug-in power supply
■
Mains adapter
5
installation
Make sure that the device is on a level surface. Pay attention to a dry surface.
6
connection
ATTENTiON!
If the IO-Link device requires more than 80 mA (also starting current), the plug-in power supply must be
used! Note that some PCs are particularly sensitive in particular to starting currents.
Possible damage to the master PC!
In case of doubt, use the plug-in power supply (IN-DC connection).
➤
➤
Connect the IO-Link master via the delivered USB cable to the USB port on your PC.
➤
➤
Connect the IO-Link device via the optional sensor cable to the IO-Link master.
➤
➤
more@turck.com • www.turck.com • 2013/11
Status
Meaning
off
no power supply
flashing
undervoltage, overload with power suppy via USB
on
ready
off
Status display IO-Link mode
slowly flashing
IO-Link Scan Mode active, no communication
fast flashing
IO-Link Preoperate Mode active
on
IO-Link Operate Mode active
off
low signal at port 1
on
high signal at port 1
off
low signal at port 2
on
high signal at port 2
off
no error
on
short-circuit, overload, communication error
Installation
