Installation

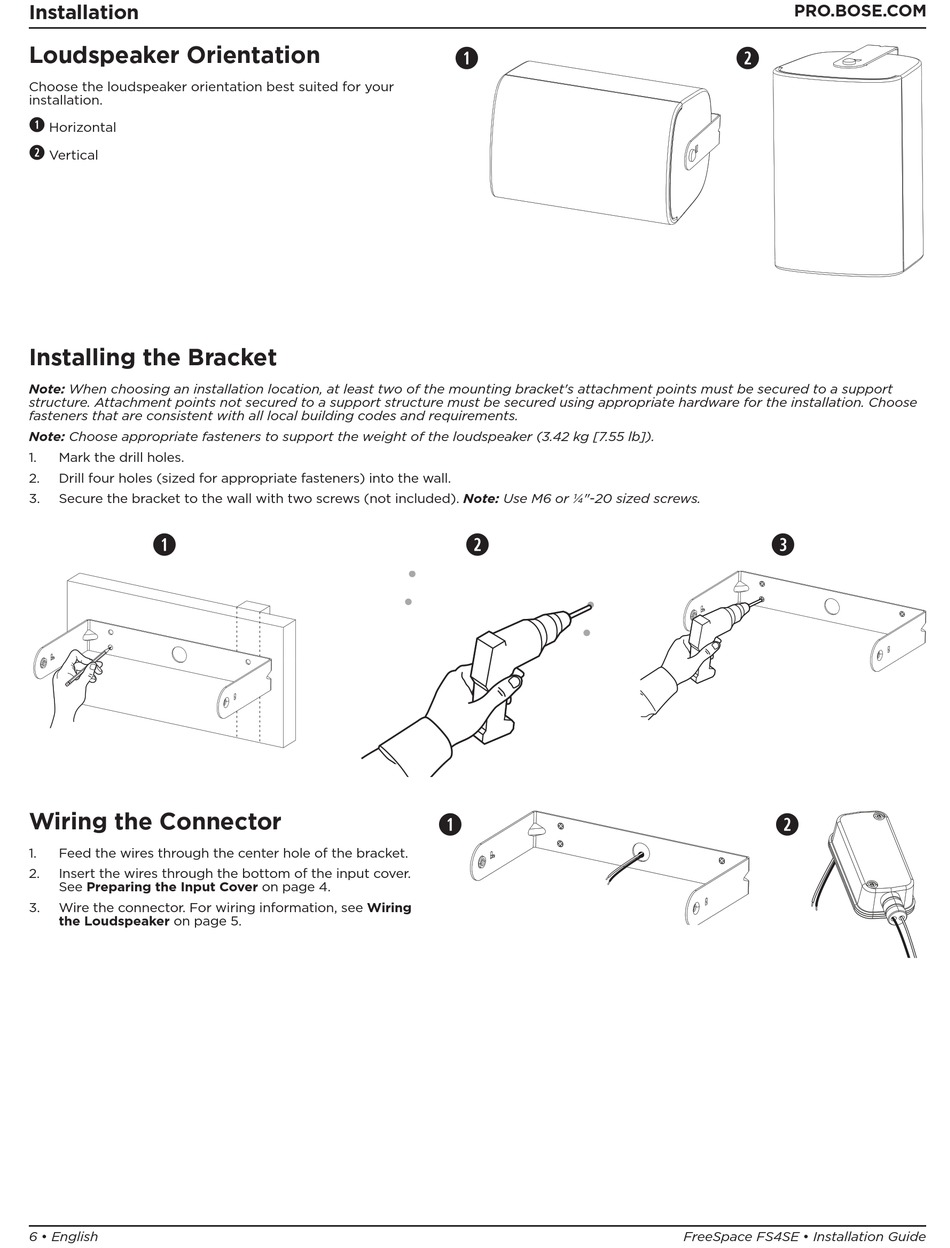

Loudspeaker Orientation
Choose the loudspeaker orientation best suited for your
installation.
q
Horizontal
w
Vertical

Installing the Bracket

Note: When choosing an installation location, at least two of the mounting bracket's attachment points must be secured to a support
structure. Attachment points not secured to a support structure must be secured using appropriate hardware for the installation. Choose
fasteners that are consistent with all local building codes and requirements.
Note: Choose appropriate fasteners to support the weight of the loudspeaker (3.42 kg [7.55 lb]).
1. Mark the drill holes.
2. Drill four holes (sized for appropriate fasteners) into the wall.
Secure the bracket to the wall with two screws (not included). Note: Use M6 or 1/4"-20 sized screws.
3.
q
Wiring the Connector
1. Feed the wires through the center hole of the bracket.
2. Insert the wires through the bottom of the input cover.
See Preparing the Input Cover on page 4.
3. Wire the connector. For wiring information, see Wiring
the Loudspeaker on page 5.
6 • English
q
w
q
PRO.BOSE.COM
w
e
w
FreeSpace FS4SE • Installation Guide
