Setup

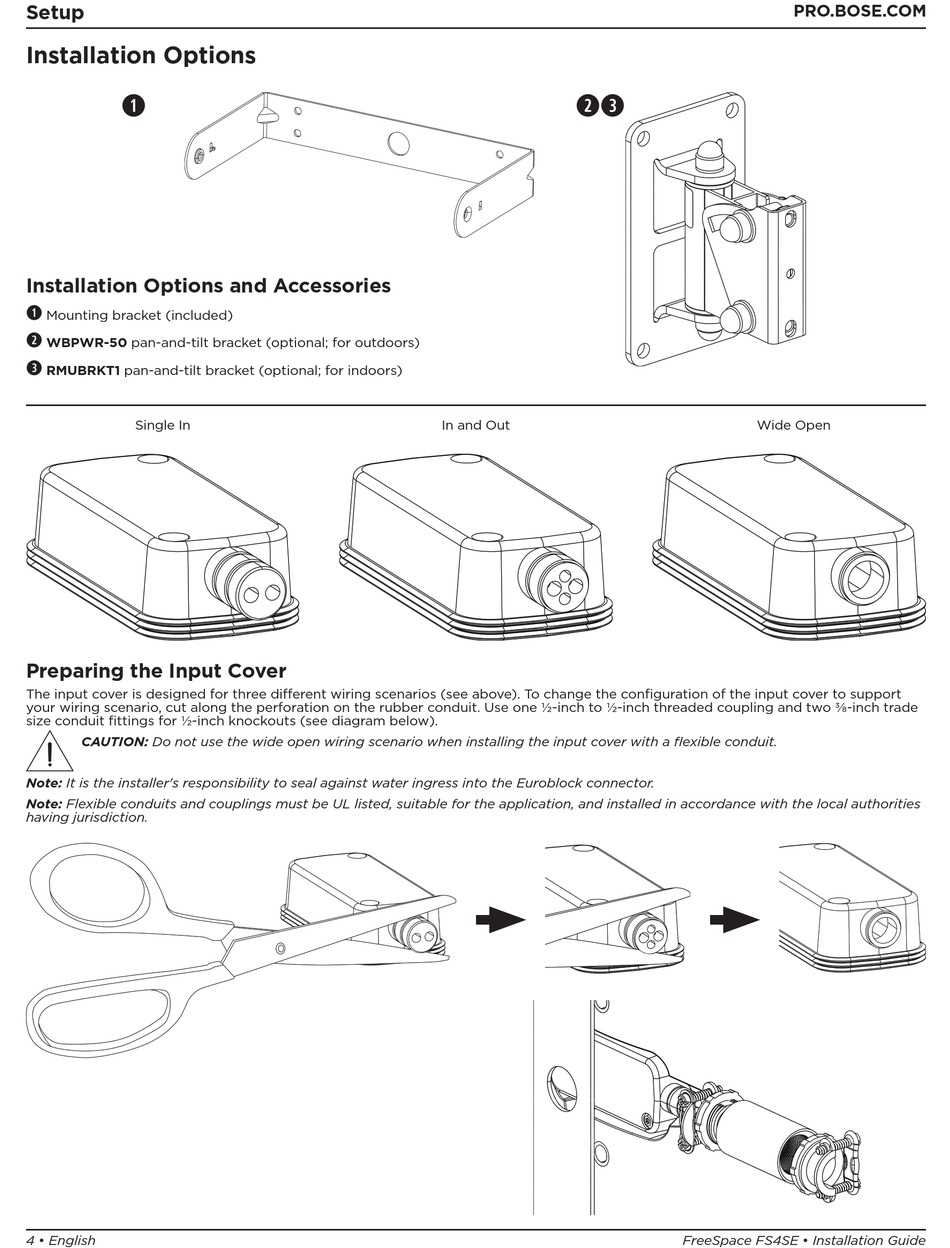

Installation Options

q
Installation Options and Accessories
q
Mounting bracket (included)
w
WBPWR-50 pan-and-tilt bracket (optional; for outdoors)
e
RMUBRKT1 pan-and-tilt bracket (optional; for indoors)
Single In
Preparing the Input Cover
The input cover is designed for three different wiring scenarios (see above). To change the configuration of the input cover to support
your wiring scenario, cut along the perforation on the rubber conduit. Use one 1/2-inch to 1/2-inch threaded coupling and two 3/8-inch trade
size conduit fittings for 1/2-inch knockouts (see diagram below).
CAUTION: Do not use the wide open wiring scenario when installing the input cover with a flexible conduit.
Note: It is the installer's responsibility to seal against water ingress into the Euroblock connector.
Note: Flexible conduits and couplings must be UL listed, suitable for the application, and installed in accordance with the local authorities
having jurisdiction.
4 • English
w e
In and Out
PRO.BOSE.COM
Wide Open
FreeSpace FS4SE • Installation Guide
