9. For units with Engage Consoles
Position the unit in its final position for use.

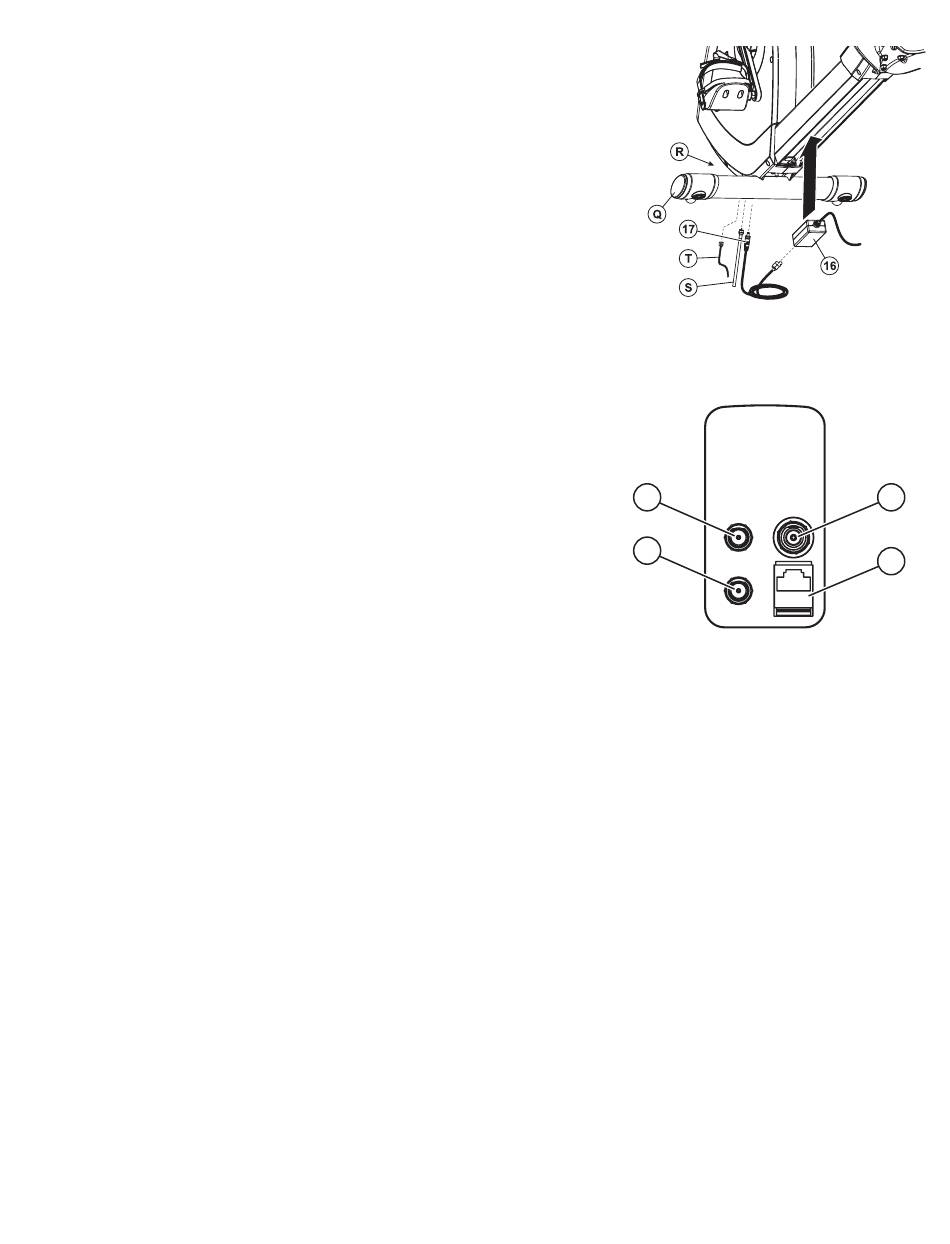

Remove the protective liner from one of the provided FASTENER
STRIPS. Attach the fastener strip to the bottom of the POWER
BLOCK (16). Interlock the remaining FASTENER STRIP to the
installed FASTENER STRIP. Remove the remaining protective liner
from FASTENER STRIP and secure the POWER BLOCK to the
underside of the CENTER FRAME as shown.
Route the POWER CORD (17) under the FRONT STABILIZER (Q)
and install the screw-type connector to the appropriate receptacle of
the MEDIA CONNECTOR BOARD (R). Bundle excess POWER CORD
and store under the unit.
Connect the BROADCAST SUPPLY CABLE (S) and NETWORK
CABLE (T) to the MEDIA CONNECTOR BOARD.
Connect the POWER CORD to the POWER BLOCK.
MEDIA CONNECTOR BOARD RECEPTACLES:
a. 12 V POWER FOR ATTACHABLE TV
b. 36 V EXTERNAL POWER FOR ENGAGE CONSOLE (15" LCD)
c. BROADCAST SUPPLY INPUT (COAXIAL)
d. FITNESS NETWORK; C-SAFE OR ETHERNET
All manuals and user guides at all-guides.com
a
b
c
d
