Targus ExpressCard Notebook Docking Station with Digital Video and Audio
Instructions for connecting the spacer to
the ExpressCard

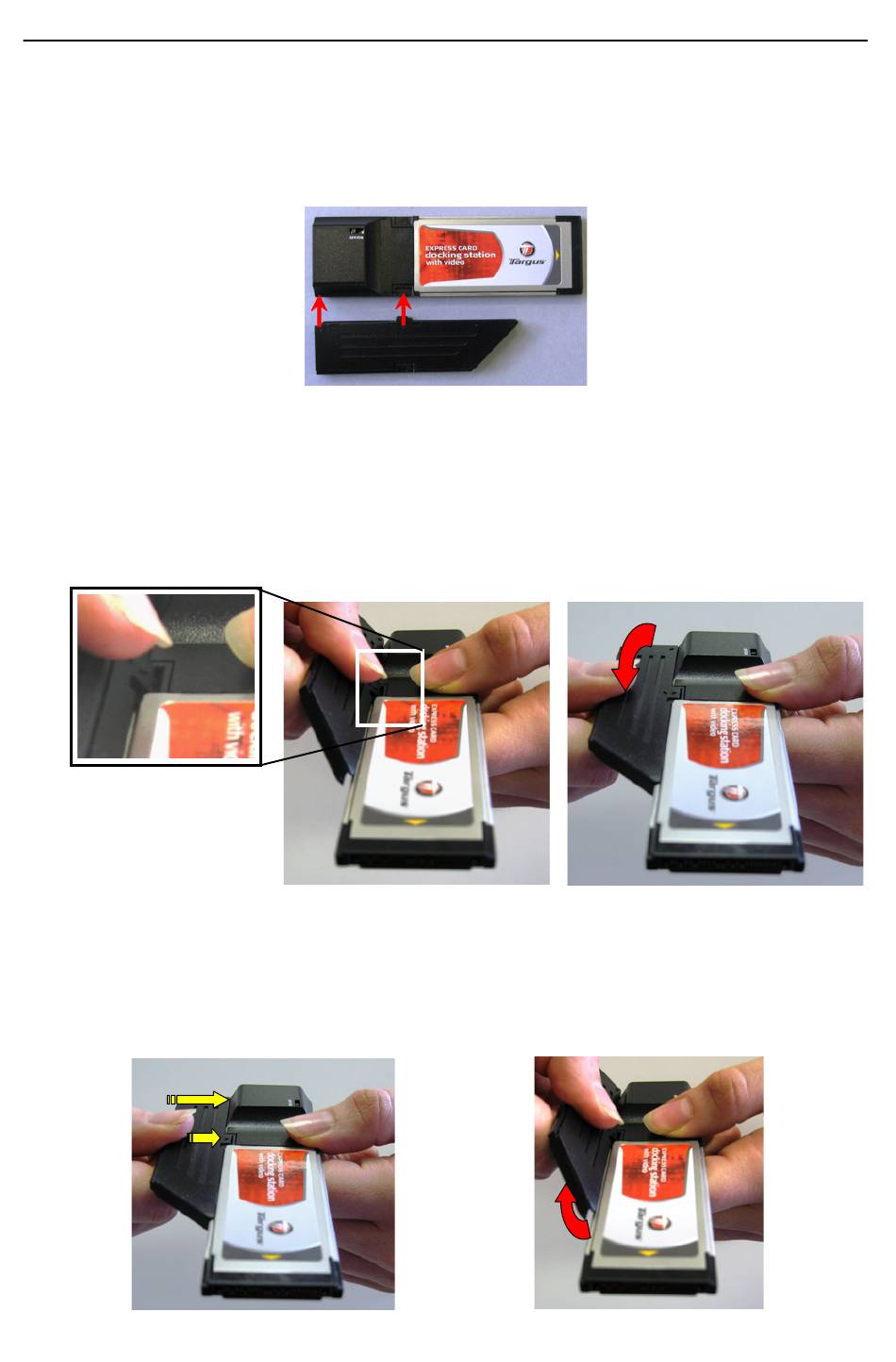

Before beginning make sure the spacer and PC card are aligned as
below.
1. When attaching the spacer, ensure the spacer is at a 45 degree
angle to the PC card. Please make sure the hook on the spacer is
sitting in the slot on the PC Card. Refer Fig 1.
2. Push down on the spacer as shown while applying firm pressure to
both the PC card and spacer.
Finally, make sure the two clips on the spacer are firmly and squarely
pushed into the slots on the PC card.
When removing the spacer, pull in an upwards motion to detach.
Fig. 1
Attach
1
Detach
7
2
