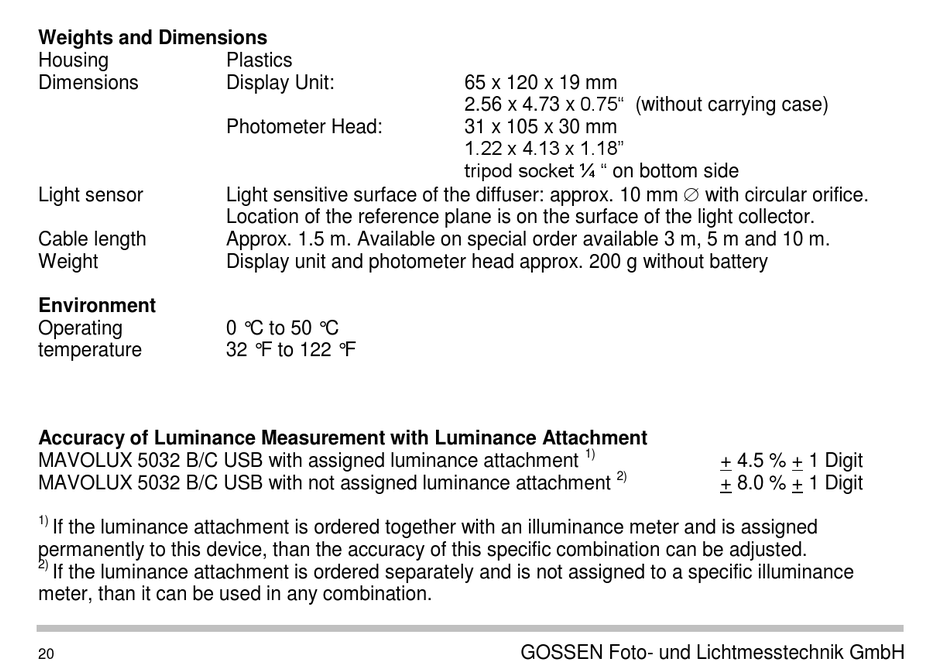

Weights and Dimensions
Housing
Dimensions
Light sensor
Cable length
Weight
Environment
Operating
temperature
Accuracy of Luminance Measurement with Luminance Attachment
MAVOLUX 5032 B/C USB with assigned luminance attachment
MAVOLUX 5032 B/C USB with not assigned luminance attachment
1)
If the luminance attachment is ordered together with an illuminance meter and is assigned
permanently to this device, than the accuracy of this specific combination can be adjusted.
2)
If the luminance attachment is ordered separately and is not assigned to a specific illuminance
meter, than it can be used in any combination.
20
Plastics
Display Unit:
Photometer Head:
Light sensitive surface of the diffuser: approx. 10 mm  with circular orifice.
Location of the reference plane is on the surface of the light collector.
Approx. 1.5 m. Available on special order available 3 m, 5 m and 10 m.
Display unit and photometer head approx. 200 g without battery
0 °C to 50 °C
32 °F to 122 °F
65 x 120 x 19 mm
2.56 x 4.73 x 0.75" (without carrying case)
31 x 105 x 30 mm
1.22 x 4.13 x 1.18"
tripod socket ¼ " on bottom side
1)
2)
GOSSEN Foto- und Lichtmesstechnik GmbH
+ 4.5 % + 1 Digit
+ 8.0 % + 1 Digit
