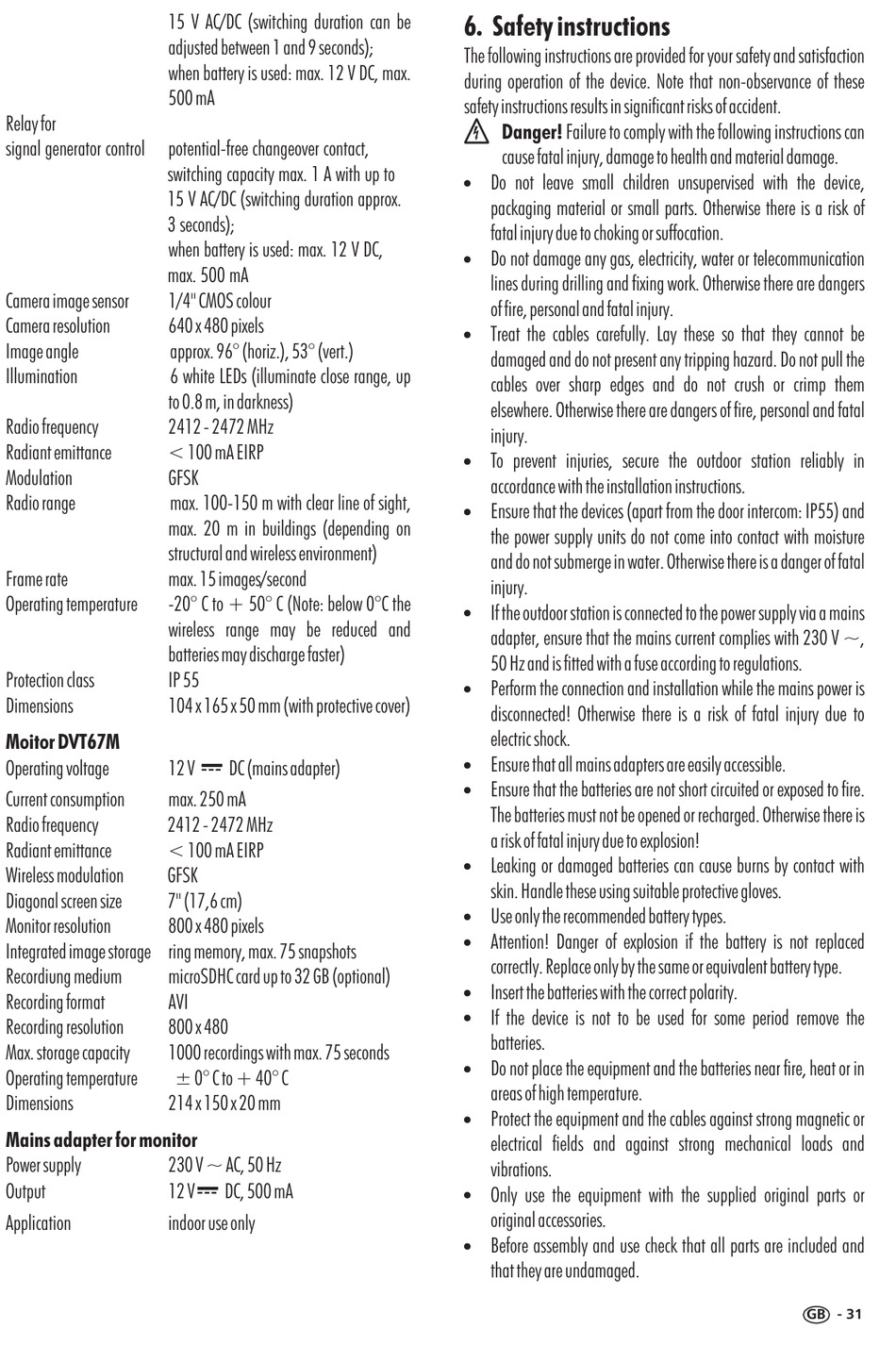

15 V AC/DC (switching duration can be
adjusted between 1 and 9 seconds);
when battery is used: max. 12 V DC, max.
500 mA
Relay for
signal generator control potential-free changeover contact,
switching capacity max. 1 A with up to
15 V AC/DC (switching duration approx.
3 seconds);
when battery is used: max. 12 V DC,
max. 500 mA
Camera image sensor 1/4" CMOS colour
Camera resolution 640 x 480 pixels
Image angle approx. 96° (horiz.), 53° (vert.)
Illumination 6 white LEDs (illuminate close range, up
to 0.8 m, in darkness)
Radio frequency 2412 - 2472 MHz
Radiant emittance < 100 mA EIRP
Modulation GFSK
Radio range max. 100-150 m with clear line of sight,
max. 20 m in buildings (depending on
structural and wireless environment)
Frame rate max. 15 images/second
Operating temperature -20° C to + 50° C (Note: below 0°C the
wireless range may be reduced and
batteries may discharge faster)
Protection class IP 55
Dimensions 104 x 165 x 50 mm (with protective cover)
Moitor DVT67M
Operating voltage 12 V
Current consumption max. 250 mA
Radio frequency 2412 - 2472 MHz
Radiant emittance < 100 mA EIRP
Wireless modulation GFSK
Diagonal screen size 7" (17,6 cm)
Monitor resolution 800 x 480 pixels
Integrated image storage ring memory, max. 75 snapshots
Recordiung medium microSDHC card up to 32 GB (optional)
Recording format AVI
Recording resolution 800 x 480
Max. storage capacity 1000 recordings with max. 75 seconds
Operating temperature
Dimensions 214 x 150 x 20 mm
Mains adapter for monitor
Power supply 230 V ~ AC, 50 Hz
Output 12 V
Application indoor use only
"
DC (mains adapter)
± 0° C to + 40° C
"
DC, 500 mA

6. Safety instructions

The following instructions are provided for your safety and satisfaction
during operation of the device. Note that non-observance of these
safety instructions results in significant risks of accident.
Danger! Failure to comply with the following instructions can
cause fatal injury, damage to health and material damage.
!
Do not leave small children unsupervised with the device,
packaging material or small parts. Otherwise there is a risk of
fatal injury due to choking or suffocation.
!
Do not damage any gas, electricity, water or telecommunication
lines during drilling and fixing work. Otherwise there are dangers
of fire, personal and fatal injury.
!
Treat the cables carefully. Lay these so that they cannot be
damaged and do not present any tripping hazard. Do not pull the
cables over sharp edges and do not crush or crimp them
elsewhere. Otherwise there are dangers of fire, personal and fatal
injury.
!
To prevent injuries, secure the outdoor station reliably in
accordance with the installation instructions.
!
Ensure that the devices (apart from the door intercom: IP55) and
the power supply units do not come into contact with moisture
and do not submerge in water. Otherwise there is a danger of fatal
injury.
!
If the outdoor station is connected to the power supply via a mains
adapter, ensure that the mains current complies with 230 V ~,
50 Hz and is fitted with a fuse according to regulations.
!
Perform the connection and installation while the mains power is
disconnected! Otherwise there is a risk of fatal injury due to
electric shock.
!
Ensure that all mains adapters are easily accessible.
!
Ensure that the batteries are not short circuited or exposed to fire.
The batteries must not be opened or recharged. Otherwise there is
a risk of fatal injury due to explosion!
!
Leaking or damaged batteries can cause burns by contact with
skin. Handle these using suitable protective gloves.
!
Use only the recommended battery types.
!
Attention! Danger of explosion if the battery is not replaced
correctly. Replace only by the same or equivalent battery type.
!
Insert the batteries with the correct polarity.
!
If the device is not to be used for some period remove the
batteries.
!
Do not place the equipment and the batteries near fire, heat or in
areas of high temperature.
!
Protect the equipment and the cables against strong magnetic or
electrical fields and against strong mechanical loads and
vibrations.
!
Only use the equipment with the supplied original parts or
original accessories.
!
Before assembly and use check that all parts are included and
that they are undamaged.
